Classic C2000 Series Flush Switch 2 Gang, 250VAC, 10A, Classic

Classic C2000 Series Flush Switch 2 Gang, 250VAC, 10A, Classic | WE

Item Number: C2032AI-WE

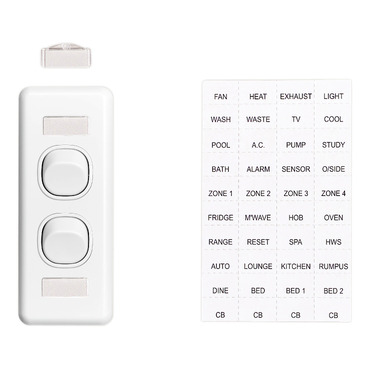

The Classic C2000 Series 2 Gang Architrave Switch allows to to switch two circuits/loads. This vertical mount, flush mounted switch also has two identification windows, so you can label each switch and always know which is which. The switch is rated 250V, 10A.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

C2000 light switch features

The Clipsal Classic C2000 light switches are widely used in residential and commercial properties across Australia for their durability and easy maintenance, making them a popular choice for electricians.

  • These switches feature a 30M mechanism allowing for 1 or 2-way switching, along with a convenient loop terminal.
  • Standard switches can be mounted vertically or horizontally, with the flexibility to change during installation by simply removing the mechanism and turning it 90°.
  • The switches come complete with a white clip-on cover and 2 installation screws.
  • One to six gang standard wall switches and one to four gang architrave switches.
  • Impact-resistant gridplates with a hardwearing, UV-stabilized surface

Specifications

Design

Range of product

Classic Series C2000

Product brand

Clipsal

Surface finish

glossy

Physical

Device presentation

basic element with full cover plate and grid

Number of poles

1

Device mounting

flush

Number of rocker

2

Local signalling

without

[ue] rated operational voltage

250 V AC

Rated current

10 A

Marking

without marking

Fixing mode

by screws

Actuator

rocker

Switch function

1-pole

Standards

AS/NZS 60669.1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Package 1 bare product quantity

1

Marking location

marking on surface

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

0.001 kg
Show all specifications
Office

Classic C2000 range

The contemporary styling and flexibility of the C2000 range have made it Clipsal’s most popular range of switches and power points.

The C2000 range offers a range of stylish switches in standard and architrave sizes. Power points are available in single, double and automatic models, in vertical or horizontal format, with options such as neons, extra switches and safety shutters.

The extensive product range also includes light dimmers, fan speed controllers, timers, weatherproof switches and TV, data and phone sockets.
