Actassi Front Adapters Plate Fibre Optic with 6 x SC Dplx MM Adapters

Home ProductsNetwork ConnectivityActassiFront Adapters Plate

Actassi Front Adapters Plate Fibre Optic with 6 x SC Dplx MM Adapters

Item Number: ACTFM1UF2SC6PMM

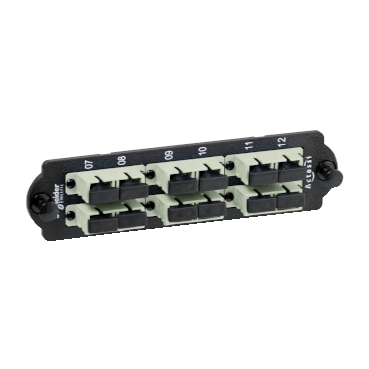

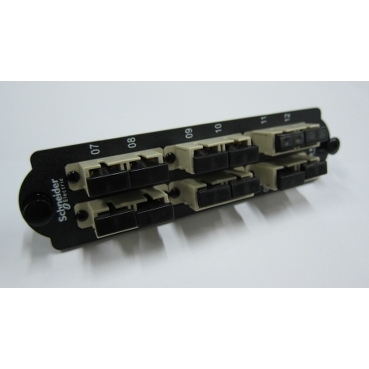

This high density panel plate is configured with 6 SC duplex adapters that to be fixed on Actassi 19-HD fibre panel (ref ACTMP1U and ACTMP4U). The duplex adapter is in beige and compatible with 12 cores of multimode (OM2/OM3/OM4) fibre connections. The plate features quick fixation by push-pull rivets and the adapter is with zirconia ceramic material ferrules for higher performance.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width137 mm

Height icon

Height35 mm

Depth icon

Depth5.6 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Actassi

Product or component type

cover plate with adapters

Colour tint

black

Physical

Provided equipment

6 duplex multi-mode adaptor for SC

Fixing mode

snap-in

Width

137 mm

Height

35 mm

Depth

5.6 mm

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1303001

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

PC

Others

Legacy weee scope

Out

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

At least in Europe

Weee label

No

Weee applicability

Component

Weee exclusion rationale

Component not in scope – non independent function

Accessory / separate part destination

fibre optic panel

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

15 cm

Package 1 width

4.7 cm

Package 1 length

4.7 cm

Package 1 weight

80 g

Unit type of package 2

S03

Number of units in package 2

74

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

6.02 kg

Unit type of package 3

PAL

Number of units in package 3

1776

Package 3 height

102 cm

Package 3 width

80 cm

Package 3 length

120 cm

Package 3 weight

205.2 kg

Total lifecycle carbon footprint

3 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

2.4353719008264463

Carbon footprint of the manufacturing phase [a1 to a3]

2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.012796694214876034

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.037840495867768595

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.04782892561983471

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

2.5338380165289256

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
