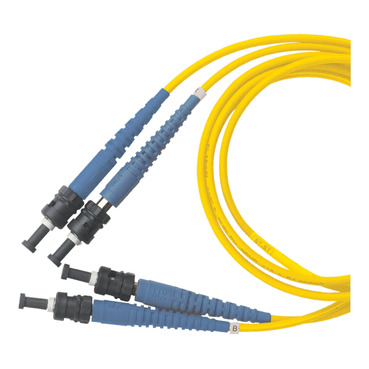

Clipsal Actassi Fibre Patch Cord St Duplex 9/125Um, Os1, 1 Mode, Sm 1.0 Metre
Item Number: TFP2T3S19S10
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
Titanium
Physical
Length
1 m
Connector type
- 1 ST
- 2 ST
Cable outer diameter
3.6.6 mm
Environmental characteristic
conforming to EN 50267-2-3
Ambient air temperature for operation
0...70 °C
Standards
- ANSI/TIA/EIA-568-B-3
- AS/NZS 3080:2003
- ISO/IEC 11081
Material
Material
- zirconia: ferrule
- ceramic: ferrule
- TPE (thermoplastic elastomer): boot
Others
Package 1 bare product quantity
1
Optic fiber type
single mode
Optic fiber diameter
9/125 µm
Fibre performance
OS1
Exchange mode
duplex
Attenuation
3.5 dB
Flame retardance
UL94-V0
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.056 kg
