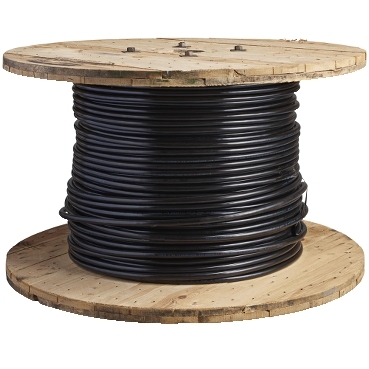

Clipsal Actassi, External Jelly Filled Cables, Unscreened, Poly, 0.40mm, 100 Pair
Item Number: 2T100POJPP4
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
Actassi
Colour
external sheath: black
Sustainable offer status
Green Premium product
Physical
Cable stiffness
solid class 1
Type of cable
2 pairs with 4 conductor(s) stranded
Environmental characteristic
water resistant (radially)
Ambient air temperature for operation
-10...70 °C
Standards
AS/ACIF TS008|AS 1049-1|AS 1049-2|AS/NZS 1125
Reach free of svhc
Yes
Eu rohs directive
Compliant
Toxic heavy metal free
Yes
Mercury free
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs exemption information
Yes

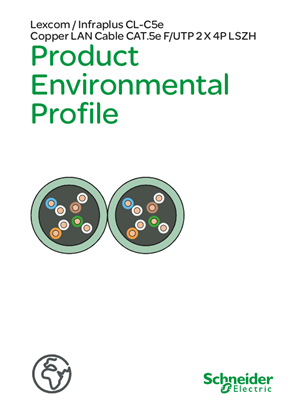

Environmental disclosure
ENVPEP110210EN
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Diameter
0.4 mm conductor:
Number of conductors
4
Cable insulation material
PE (polyethylene)
External diameter
5.4 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.548 kg
