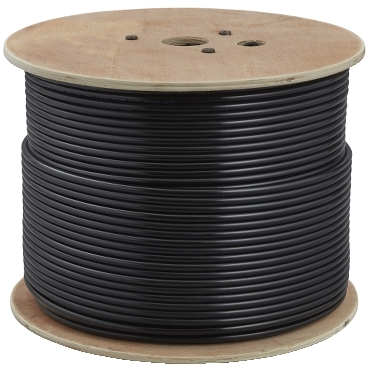

Clipsal Actassi Coaxial Cable to Suit Satellite TV RG6, Quad Shield, 305 Metre Reel
Item Number: 3105RG6Q3RF
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Product or component type
cable
Colour
external sheath: black
Physical
Cable stiffness
solid class 1
Awg gauge
AWG 18
Ambient air temperature for operation
80 °C
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP1604002
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
- inside bare copper conductor
- outside aluminium conductor
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Sheath type
foil + braiding
Diameter
- conductor: inner: 1.02 mm
- conductor: external: 4.57 mm
Cable insulation material
- PE (polyethylene)
- PVC (polyvinyl chloride)
External diameter
7.57 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
28.5 cm
Package 1 width
36.5 cm
Package 1 length
36.5 cm
Package 1 weight
13627 g
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
