Thalassa, Transport handle of PLS

Item Number: NSYATM27

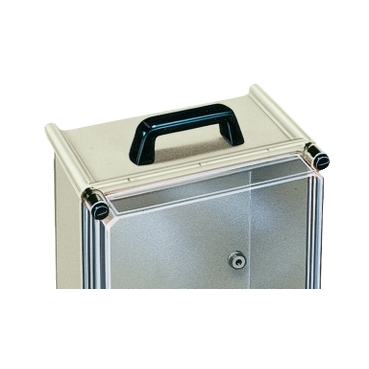

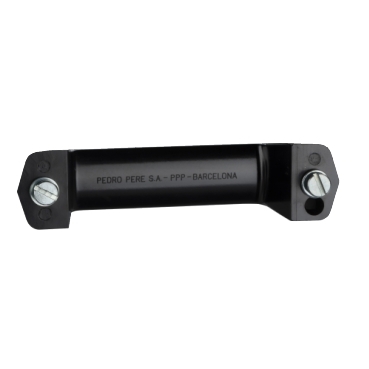

Thalassa PLS transport handle. H130xD44 mm. Multi-purpose application. Direct mounting on rear (fixing by screw type M6). Black RAL 9005.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PanelSeT

Product or component type

handle

Device application

multi-purpose

Warranty

18 months

Physical

Mounting support

direct mounting on rear

Range compatibility

PanelSeT PLS

Depth

44 mm

Height

130 mm

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP110921EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Device composition

1 handle

Material

plastic

Others

If one of the deliverables is not relevant please give the reason

Accessory

Life cycle assessment data

No

Weee label

No

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Legacy weee scope

Out

At least in Europe

Accessory / separate part category

locking accessory

Accessory / separate part type

carrying handle

Thread type

M6

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.000 cm

Package 1 width

15.000 cm

Package 1 length

14.000 cm

Package 1 weight

98.000 g

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

a18cb304-12b9-4d34-8ea6-7f2f757726a8

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Installation Instruction

  • Environmental Disclosure

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
PanelSeT PLS - NSYATM27 - Transport handle of PLS - 3D CAD
ZIP

PanelSeT PLS - NSYATM27 - Transport handle of PLS - 3D CAD

VERSION

1.0

DATE

03 Jan 2025

REVISION

1.0

DOWNLOAD (ZIP) 661.9 KB

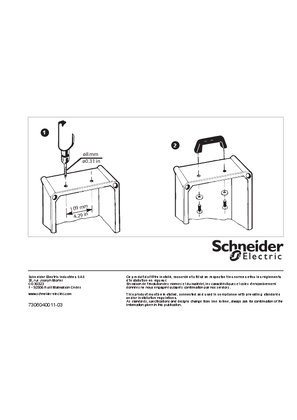

PanelSeT PLS - Carrying handle - Instruction sheet
