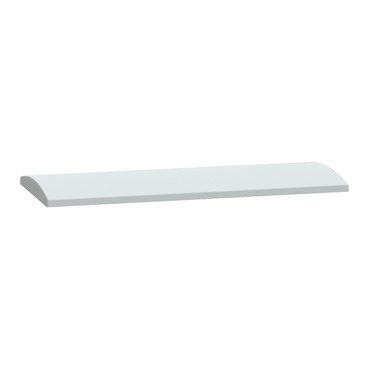

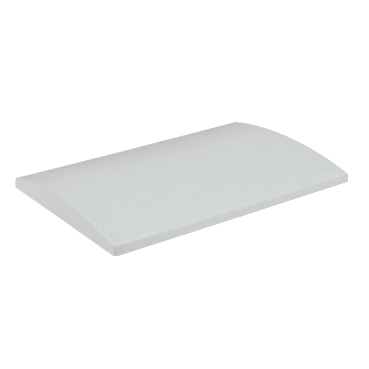

Thalassa Polyester canopy for PLA enclosure W750xD320mm

Home ProductsIndustrialThalassaPolyester canopy

Thalassa Polyester canopy for PLA enclosure W750xD320mm

Item Number: NSYTJPLA73G

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width750 mm

Height icon

Height38 mm

Depth icon

Depth320 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PanelSeT

Product or component type

canopy

Device application

multi-purpose

Colour

grey (RAL 7035)

Warranty

18 months

Physical

Range compatibility

PanelSeT PLA

Fixing mode

by fixing element

Height

38 mm

Width

750 mm

Depth

320 mm

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP110505EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Device composition

  • 1 canopy
  • fixing elements
  • drilling template

Material

polyester charged with fibreglass

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

60

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Accessory / separate part category

enclosure accessory

Enclosure nominal dimensions

-

Mounting location

on top of enclosure

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.000 cm

Package 1 width

35.000 cm

Package 1 length

78.500 cm

Package 1 weight

2.720 kg

Unit type of package 2

PAM

Number of units in package 2

60

Package 2 height

130.000 cm

Package 2 width

100.000 cm

Package 2 length

120.000 cm

Package 2 weight

177.000 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

1341ad4e-77b9-40e3-bab0-32043fbc5959

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Environmental Disclosure

  • Installation Instruction

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
PanelSeT PLA - Canopy for PLA enclosure RAL7035 W750xD320 - 3D CAD
ZIP

PanelSeT PLA - Canopy for PLA enclosure RAL7035 W750xD320 - 3D CAD

VERSION

1.0

DATE

03 Jan 2025

REVISION

1.0

DOWNLOAD (ZIP) 3.8 MB
PEP-PanelSeT PLA
ZIP

PEP-PanelSeT PLA

VERSION

3.0

DATE

31 Jan 2025

REVISION

3.0

DOWNLOAD (ZIP) 395.7 KB

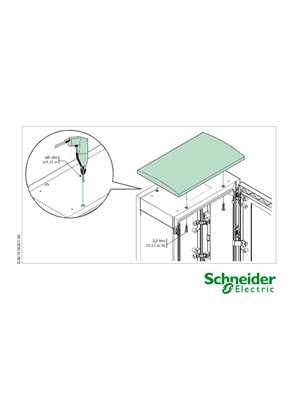

FS Enclosure PanelSeT - Canopy - Instruction sheet
