TeSys D Time delay contact block TeSys Deca,1NO+1NC,on-delay 1-30s,front
Item Number: LADT2
TeSys Deca time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 1-30s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC),
Specifications
Design
Range
- TeSys
- TeSys Deca
Range of product
Product or component type
Physical
Range compatibility
- TeSys Deca CAD
- TeSys Deca LC1D
- TeSys F LC1F
- TeSys F CR1F
[ue] rated operational voltage
[ie] rated operational current
- 6 A at 120 V AC-15
- 1.04 A at 690 V AC-15
- 0.55 A at 125 V DC-13
- 0.1 A at 600 V DC-13
Standards
- EN/IEC 60947-5-1
- UL 60947-5-1
- CSA C22.2 No 60947-5-1
- GB/T 14048.5
- EN 50012
- IEC 60335-1:Clause 30.2
- IEC 60335-2-40:Annex JJ
- UL 60335-2-40:Annex JJ
Product certifications
- IECEE CB Scheme
- UL
- CSA
- CCC
- EAC
- UKCA
Protection type
Mechanical durability
Insulation resistance
Connections - terminals
- screw clamp terminals 1 cable(s) 1-2.5 mm²flexible with cable end
- screw clamp terminals 1 cable(s) 1-2.5 mm²flexible without cable end
- screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end
- screw clamp terminals 2 cable(s) 1-2.5 mm²flexible without cable end
- screw clamp terminals 1 cable(s) 1-2.5 mm²rigid
- screw clamp terminals 2 cable(s) 1-2.5 mm²rigid
- screw clamp terminals
Height
Width
Depth
Environmental characteristic
Ip degree of protection
Ambient air temperature for storage
Ambient air temperature for operation
Mercury free
Rohs exemption information
Environmental disclosure
Eu rohs directive
Reach regulation
China rohs regulation
California proposition 65
Others
Life cycle assessment data
Substance regulation data deliverable
Average percentage of recycled plastic content
Package 1 bare product quantity
Legacy weee scope
Weee label
Product name
Mounting location
Pole contact composition
Auxiliary contacts operation
Timer type
Time delay range
[ui] rated insulation voltage
- 690 V conforming to IEC 60947-5-1
- 600 V conforming to UL 60947-5-1
- 600 V conforming to CSA C22.2 No 60947-5-1
[ith] conventional free air thermal current
Irms rated making capacity
- 140 A at <= 690 V AC conforming to IEC 60947-5-1
- 250 A at <= 690 V DC conforming to IEC 60947-5-1
Permissible short-time rating
- 100 A 60 °C 1 s
- 120 A 60 °C 500 ms
- 140 A 60 °C 100 ms
Minimum switching current
Minimum switching voltage
Non-overlap time
- 1.5 ms on de-energisation no overlap between NC and NO contact
- 1.5 ms on energisation no overlap between NC and NO contact
Tightening torque
- 1.7 N.m - with screwdriver flat Ø 6 mm
- 1.7 N.m - with screwdriver Philips No 2
- 1.7 N.m - with screwdriver pozidriv No 2
Shielding continuity terminal
Protective treatment
Operating altitude
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Total lifecycle carbon footprint
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the installation phase [a5]
Carbon footprint of the installation phase [a5]
Carbon footprint of the use phase [b2, b3, b4, b6]
Carbon footprint of the use phase [b2, b3, b4, b6]
Sustainable packaging
Carbon footprint of the end-of-life phase [c1 to c4]
Carbon footprint of the end-of-life phase [c1 to c4]
Pvc free
F-gas free
Take-back
Product contributes to saved and avoided emissions
Removable battery
Total lifecycle carbon footprint
Average percentage of recycled metal content
Packaging made with recycled cardboard
Packaging without single use plastic
Scip number
Pvc free
End of life manual availability
Take-back
Weee label
Warranty (in months)
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-

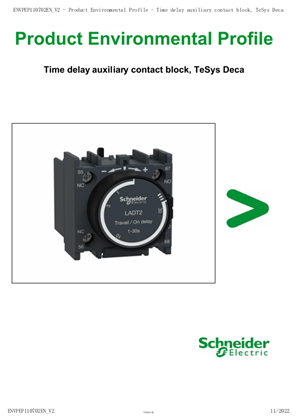

Environmental Disclosure
-
Installation Instruction
-
Technical Drawing
-
Certificates (MSDS)
-
Declaration of Conformity
-
eTechPub
-
Declaration of Conformity (Sustainability)
LC1D 9 to 38 A AC/DC contactors with screw clamp terminals - Instruction Sheet
VERSION
4.1
DATE
14 Jun 2024
REVISION
4.1
T02EN13, T02FN13, T02GN13, T02HN13, T02JN13 Size 3 to 7 NEMA Rated Contactors Installation Instructions
VERSION
1.0
DATE
01 Mar 2024
REVISION
1.0

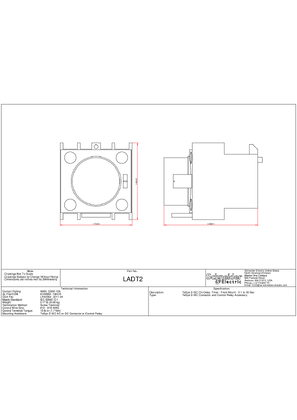

Technical drawing for LADT2_CAD_DOC
