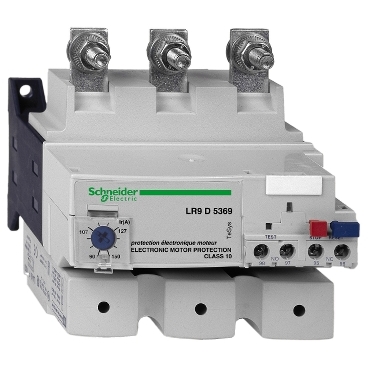

TeSys LR.D Thermal Overload Relays TeSys Deca, 90...150A, class 10

Item Number: LR9D5369

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width115 mm

Height118 mm

Depth125 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110787931	-

Specifications

Design

Range

TeSys

Product or component type

electronic thermal overload relay

Product compatibility

NSX circuit breaker
LC1D150
LC1D115

Warranty

18 months

Physical

Mounting support

under contactor
rail

[ue] rated operational voltage

690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Control type

red push-button: stop
blue push-button: reset

Connections - terminals

power circuit: bars
control circuit: screw clamp terminals 1 cable(s) 0.5-1.5 mm² flexible without cable end
control circuit: screw clamp terminals 2 cable(s) 0.5-1.5 mm² flexible without cable end
alarm circuit: screw clamp terminals 1 cable(s) 0.5-1.5 mm² flexible without cable end

Height

118 mm

Width

115 mm

Depth

125 mm

Net weight

0.885 kg

Climatic withstand

conforming to IACS E10

Ip degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20...60 °C without derating conforming to IEC 60947...4-1

Ambient air temperature for storage

-60...70 °C

Standards

EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
UL 60947-5-1
CSA C22.2 No 60947-4-1
CSA C22.2 No 60947-5-1
GB/T 14048.4
GB/T 14048.5

Product certifications

UL
CSA
CCC
UKCA

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2212018

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Legacy weee scope

Average percentage of recycled plastic content

0 %

Package 3 bare product quantity

Package 2 bare product quantity

Package 1 bare product quantity

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Product name

TeSys LRD
TeSys Deca

Device short name

LR9D

Relay application

motor protection

Network type

Thermal overload class

class 10 conforming to IEC 60947-4-1

Signalling function

alarm

Thermal protection adjustment range

90...150 A

[ui] rated insulation voltage

power circuit: 1000 V conforming to IEC 60947-4-1
power circuit: 600 V conforming to CSA
power circuit: 600 V conforming to UL

Network frequency

50...60 Hz

[us] rated supply voltage

24 V DC

Supply voltage limits

17...32 V

Tripping threshold

1.05 +/- 0.06 In alarm conforming to IEC 60947-4-1
1.12 +/- 0.06 In de-energisation conforming to IEC 60947-4-1

Auxiliary contact composition

1 NO + 1 NC

[ith] conventional free air thermal current

5 A for signalling circuit

Associated fuse rating

4 A gG for signalling circuit
4 A BS for signalling circuit

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Phase failure sensitivity

tripping in 4 s +/- 20 % conforming to IEC 60947-4-1

Temperature compensation

-20...60 °C

Switching capacity in ma

0...150 mA

Maximum voltage drop

<2.5 V closed state

Tightening torque

alarm circuit: 0.45 N.m - on screw clamp terminals
power circuit: 18 N.m - on bars M8
control circuit: 1.2 N.m - on screw clamp terminals

Compatibility code

LR9D

Operating altitude

<= 2000 m without derating

Mechanical robustness

vibrations: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
shocks: 13 Gn for 11 ms conforming to IEC 60068-2-7

Dielectric strength

1.89 kV at 50 Hz conforming to IEC 60947-1

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

15.000 cm

Package 1 width

16.000 cm

Package 1 length

13.000 cm

Package 1 weight

920.000 g

Unit type of package 2

S04

Number of units in package 2

Package 2 height

30.000 cm

Package 2 width

40.000 cm

Package 2 length

60.000 cm

Package 2 weight

11.880 kg

Unit type of package 3

P06

Number of units in package 3

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

56.804 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

133 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

4.300183391790282

Carbon footprint of the manufacturing phase [a1 to a3]

4 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.5885445505961475

Carbon footprint of the distribution phase [a4]

0.6 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.11271819735008072

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

126.69793890788517

Carbon footprint of the use phase [b2, b3, b4, b6]

127 kg CO2 eq.

Sustainable packaging

Carbon footprint of the end-of-life phase [c1 to c4]

1.6370650693830773

Carbon footprint of the end-of-life phase [c1 to c4]

2 kg CO2 eq.

Pvc free

Yes

F-gas free

N/A

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Total lifecycle carbon footprint

133.33645011700477

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Scip number

d5a17874-1166-4927-b008-33d15e304a41

Pvc free

Yes

End of life manual availability

ENVEOLI2212018

Take-back

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)
