TeSys LR9 Thermal Overload Relays remote electrical stop, 24V DC/AC
Item Number: LAD703B

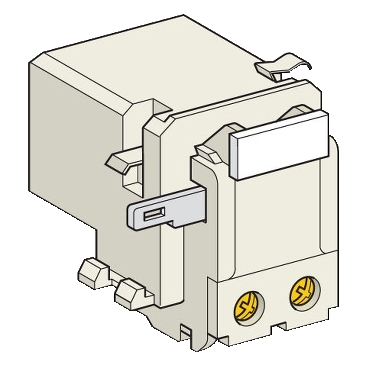

TeSys LRD remote control device for thermal overload relays LRD/LR3D D01-D35, D04L-D32L, D313-D380, D313L-D365L. It provides a 24V AC/DC control circuit to perform a remote tripping and electrical reset. Left-hand side mounting on the thermal overload relay by clip-on.
Datasheet
Specifications
Design
| Range | TeSys |
|---|---|
| Product or component type | electrical remote stop |
| Product compatibility |
|
| Warranty | 18 months |
Physical
| Net weight | 0.09 kg |
|---|---|
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Documents & downloads
-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-

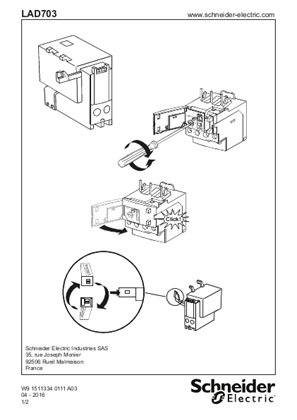

Installation Instruction
-
Declaration of Conformity
-
Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
EU Declaration TeSys D -LRD01-35 without ATEX
VERSION
1.0
DATE
18 Sep 2024
REVISION
1.0
EU Declaration SC16031603D TeSys LRD/LR3D
VERSION
1.0
DATE
16 Aug 2024
REVISION
1.0

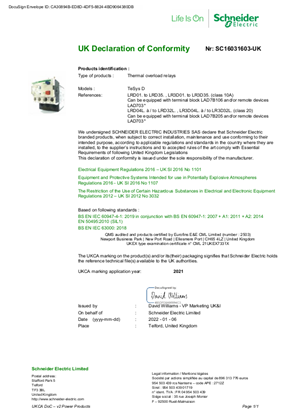

UKCA Declaration TeSysD_LRD01-35_LRD04L-32L_LAD7B106
VERSION
1.0
DATE
16 Aug 2024
REVISION
1.0

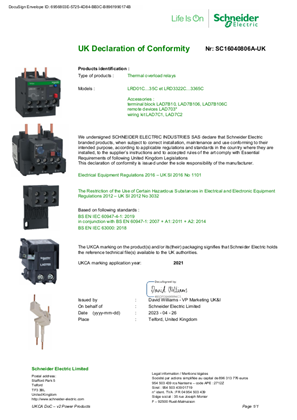

UKCA Declaration TeSys D_LRD01-35C,LRD3322-3365C
VERSION
1.0
DATE
12 May 2023
REVISION
1.0

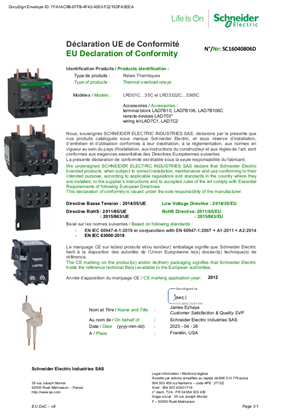

EU Declaration TeSys D_LRD01-35C,LRD3322-3365C
