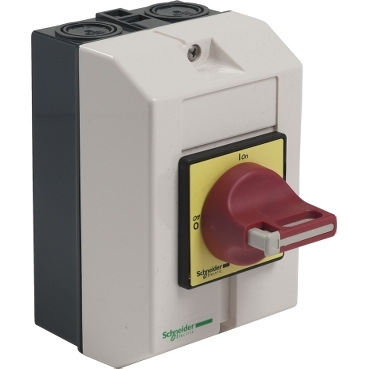

TeSys Mini-Vario TeSys Vario enclosed emergency switch disconnector, 16A, IP65

Item Number: VCF01GE

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width90 mm

Height146 mm

Depth131 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110194067	-

Specifications

Design

Range	TeSys
Product or component type	enclosed emergency stop switch disconnector
Warranty	18 months

Physical

Control type	rotary handle
Marking	0 - 1
[ue] rated operational voltage	690 V AC
[ie] rated operational current	11 A (AC-23A) at 400 V
Mechanical durability	100000 cycles
Electrical durability	100000 cycles AC-21 30000 cycles DC-1...5
Environmental characteristic	standard environment
Connections - terminals	screw clamp terminals10-10 mm² - solid screw clamp terminals6-6 mm² - flexible - with cable end
Height	146 mm
Width	90 mm
Depth	131 mm
Net weight	0.5 kg
Standards	IEC 60947-4-1 IEC 60204
Ip degree of protection	IP65 conforming to IEC 60529
Ambient air temperature for operation	-20...50 °C
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2211019EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
Package 3 bare product quantity	56
Package 2 bare product quantity	7
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	TeSys VARIO
Device short name	VCF
Performance level	high performance
Poles description	3P
Handle colour	red
Handle front plate colour	yellow
Rotary handle padlocking	1 to 3 padlocks 4-8 mm
[uimp] rated impulse withstand voltage	8 kV
[ithe] conventional enclosed thermal current	16 A
Rated operational power in w	5.5 kW at 400 V (AC-23) 4 kW at 400 V (AC-3)
Intermittent duty class	30
Making capacity	200 A at 400 V AC-21A 200 A at 400 V AC-22A 200 A at 400 V AC-23A
[icm] rated short-circuit making capacity	1 kA at 400 V at Ipeak
[icw] rated short-time withstand current	300 A at 400 V duration: 1 s
Rated conditional short-circuit current	10 kA at 400 V - associated fuse 20 A aM 10 kA at 400 V - associated fuse 20 A gG
Breaking capacity	200 A at 400 V (AC-21A) 200 A at 400 V (AC-22A) 200 A at 400 V (AC-23A)
Suitability for isolation	yes
Tightening torque	2.1...2.1 N.m - on screw clamp terminals
Fire resistance	960 °C conforming to IEC 60595-2-1
Base dimension	60 x 60 mm
Compatibility code	enclosed switch disconnector
Protective treatment	TC
Mechanical robustness	vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	14.300 cm
Package 1 width	11.000 cm
Package 1 length	15.800 cm
Package 1 weight	481.000 g
Unit type of package 2	S03
Number of units in package 2	7
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	3.795 kg
Unit type of package 3	P06
Number of units in package 3	56
Package 3 height	75.000 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	40.636 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	17 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.629883768507865
Carbon footprint of the manufacturing phase [a1 to a3]	3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.09743338386300768
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.07906756912597865
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	13.432378470046519
Carbon footprint of the use phase [b2, b3, b4, b6]	13 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	1.0940306052987434
Carbon footprint of the end-of-life phase [c1 to c4]	1 kg CO2 eq.
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	17.332793796842115
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	9ea58720-3cf9-4883-9af8-9d64d3981af2
China rohs label	1
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Environmental Disclosure
Installation Instruction
Technical Drawing
Declaration of Conformity
Certificates (MSDS)
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Enclosed switch disconnector VBFGE or VCFGE for high performance application, 3 poles, 10A to 32A, red or black handle, 60x60 - 3D CAD

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 879.5 KB

ZIP

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

VERSION

17.0

DATE

11 May 2026

REVISION

17.0

DOWNLOAD (ZIP) 51 MB

ZIP

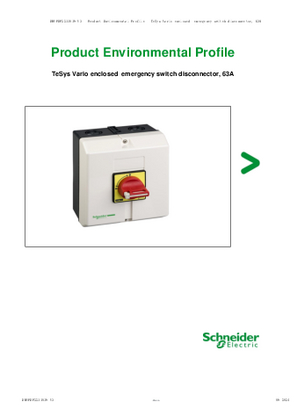

TeSys Vario enclosed, emergency switch disconnector, 63A

VERSION

1.0

DATE

01 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 328.5 KB

ZIP

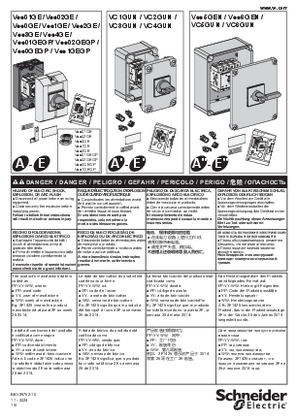

V..GE, VC.GUN, VC.GEN VARIO enclosed switch disconnectors - Instruction Sheet

VERSION

5.0

DATE

31 Mar 2025

REVISION

5.0

DOWNLOAD (ZIP) 10.1 MB

ZIP

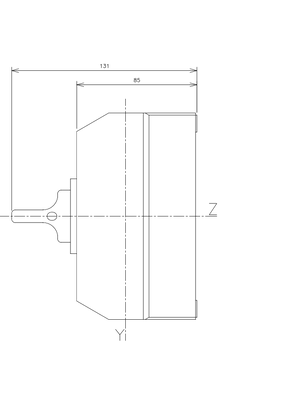

3-pole main And emergency stop switch disconnectors enclosed Ithe from 10 to 32A Technical drawings

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 84.2 KB

ZIP

UK Declaration of Conformity_TeSys Enclosed Vario

VERSION

1.0

DATE

08 Apr 2026

REVISION

1.0

DOWNLOAD (ZIP) 304.2 KB

ZIP

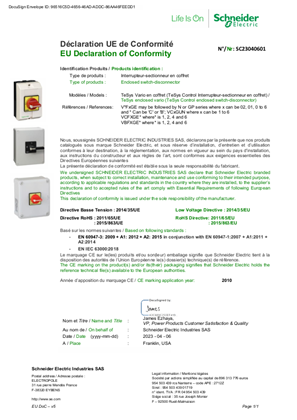

EU Declaration_TeSys Enclose Vario

VERSION

1.0

DATE

20 Jan 2026

REVISION

1.0

DOWNLOAD (ZIP) 287.3 KB

ZIP

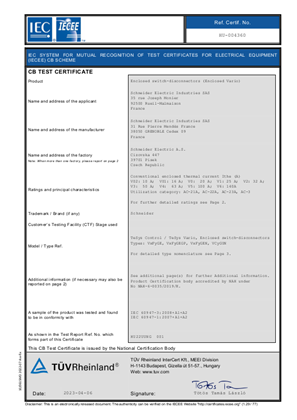

CB_Certificate_TeSys Enclosed Vario
