TeSys D Suppressor Module RC circuit, 24...48 V AC
Item Number: LA4DA2E

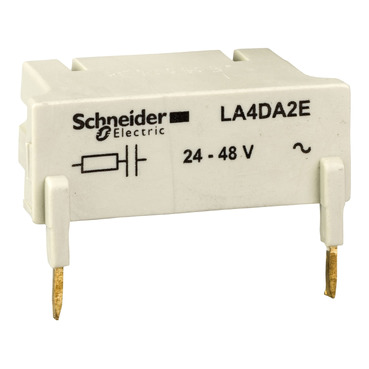

TeSys Deca suppressor module, for LC1D80-D150 (3P), LC1D40-D115 (4P) contactors. To be used with 24-48V AC control circuit voltage, it provides RC protection limiting the transient voltage to 3 Uc max. Mounting on top of contactor, screw fixing and connection on coil terminals.
Datasheet
Specifications
Design
| Range of product | TeSys Deca |
|---|---|
| Range | TeSys |
| Product or component type | suppressor module |
| Product compatibility |
|
| Warranty | 18 months |
Physical
| Mounting mode | by screws |
|---|---|
| Net weight | 0.018 kg |
| Standards |
|
| Product certifications |
|
| Ip degree of protection | IP2X conforming to IEC 60529 |
| Ambient air temperature for operation | -25...55 °C |
| Ambient air temperature for storage | -40...80 °C |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1112053EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
