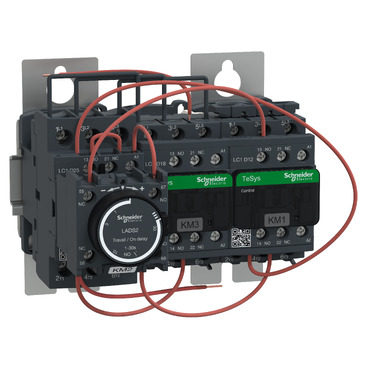

TeSys D Star Delta Starter TeSys Deca, 3 x 3P (3 NO), 18A, 110VAC 50/60Hz coil
Item Number: LC3D18AF7
Specifications
Design
Range of product
Range
- TeSys
- TeSys Deca
Product or component type
Warranty
Physical
Device presentation
[ue] rated operational voltage
[ie] rated operational current
Electrical durability
Provided equipment
Mounting support
Standards
- EN 60947-5-1
- EN 60947-4-1
- UL 508
- IEC 60947-4-1
- IEC 60947-5-1
- CSA C22.2 No 14
- IEC 60335-1
Product certifications
- RINA
- DNV
- GOST
- BV
- LROS (Lloyds register of shipping)
- GL
- CSA
- UL
- CCC
Connections - terminals
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end
- control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end
- power circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: flexible without cable end
- power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible without cable end
- power circuit: screw clamp terminals 1 1-6 mm² - cable stiffness: flexible with cable end
- power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible with cable end
- power circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: solid without cable end
- power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: solid without cable end
Width
Height
Depth
Net weight
Insulation resistance
Ip degree of protection
Climatic withstand
- conforming to IACS E10
- conforming to IEC 60947-1 Annex Q category D
Ambient air temperature for storage
Ambient air temperature for operation
Reach regulation
Reach free of svhc
Eu rohs directive
Toxic heavy metal free
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
California proposition 65
Others
Life cycle assessment data
Substance regulation data deliverable
Package 1 bare product quantity
Product name
Device short name
Contactor application
Utilisation category
Poles description
Pole contact composition
Motor power kw
- 11 kW at 220/230 V AC 50/60 Hz
- 22 kW at 415 V AC 50/60 Hz
- 22 kW at 440 V AC 50/60 Hz
- 18.5 kW at 380/400 V AC 50/60 Hz
Control circuit type
[uc] control circuit voltage
Auxiliary contact composition
[uimp] rated impulse withstand voltage
Overvoltage category
[ui] rated insulation voltage
- power circuit: 690 V conforming to IEC 60947-4-1
- power circuit: 600 V CSA certified
- power circuit: 600 V UL certified
- signalling circuit: 690 V conforming to IEC 60947-1
- signalling circuit: 600 V CSA certified
- signalling circuit: 600 V UL certified
Interlocking type
Tightening torque
- power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
- power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
- power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Maximum operating rate
Starting time
Coil technology
Control circuit voltage limits
- drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
- operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)
- operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
Inrush power in va
- 70 VA 60 Hz cos phi 0.75 (at 20 °C)
- 70 VA 50 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in va
- 7.5...7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
- 7 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation
Auxiliary contacts type
- mechanically linked conforming to IEC 60947-5-1 3 x 1 NO + 1 NC
- mirror contact conforming to IEC 60947-4-1 3 x 1 NC
Signalling circuit frequency
Minimum switching current
Switching voltage
Non-overlap time
- 1.5 ms on de-energisation between NC and NO contact
- 1.5 ms on energisation between NC and NO contact
Power range
- 7...11 kW at 200...240 V 3 phases
- 15...25 kW at 380...440 V 3 phases
Motor starter type
Contactor coil voltage
Protective treatment
Pollution degree
Operating altitude
Fire resistance
Flame retardance
Mechanical robustness
- vibrations contactor open: 2 Gn, 5...300 Hz
- vibrations contactor closed: 4 Gn, 5...300 Hz
- shocks contactor open: 10 Gn for 11 ms
- shocks contactor closed: 15 Gn for 11 ms
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Green premium status for reporting
Weee
Pvc free
Pvc free
F-gas usage performance
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
