TeSys GV2 Shunt release (MX) TeSys Deca,415-440V AC 50Hz/480V AC 60Hz

Item Number: GVAS415

1 PCE 0

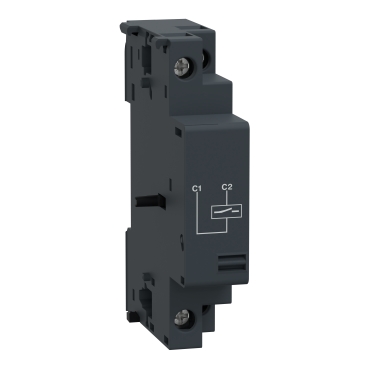

TeSys GV electrical trip, MX shunt release, 415-440V AC 50Hz / 480V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage is applied in limits 0.7-1.1 Uc with an impulse duration greater than 20ms or a maintained signal. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC),

Where To Buy

Datasheet

Download

Product Dimensions

Width18 mm

Height89 mm

Depth66 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110344127	-

Specifications

Design

Range of product	TeSys GV2 TeSys GV3 TeSys Deca
Range	TeSys TeSys Deca
Product or component type	shunt trip release
Warranty	18 months

Physical

Range compatibility	TeSys GV2ME TeSys GV2LE TeSys GV2L TeSys GV2P TeSys GV3L TeSys GV3P TeSys Deca
Connections - terminals	screw clamp terminals 1 cable(s) 1-2.5 mm²solid screw clamp terminals 2 cable(s) 1-2.5 mm²solid screw clamp terminals 1 cable(s) 0.75-2.5 mm²flexible without cable end screw clamp terminals 2 cable(s) 0.75-2.5 mm²flexible without cable end screw clamp terminals 1 cable(s) 0.75-1.5 mm²flexible with cable end screw clamp terminals 2 cable(s) 0.75-1.5 mm²flexible with cable end
Mechanical durability	10000 cycles with GV3P and GV3L 30000 cycles with GV2ME and GV2P
Quantity per set	set of 10
Height	89 mm
Width	18 mm
Depth	66 mm
Net weight	0.105 kg
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2207006EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	32
Package 3 bare product quantity	512
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	GVAS
[uc] control circuit voltage	415...440 V AC 50 Hz 480 V AC 60 Hz
Control circuit voltage limits	0.7...1.1 Un
[ui] rated insulation voltage	690 V AC conforming to IEC 60947-1 600 V AC conforming to UL 60947-4-1 600 V AC conforming to CSA C22.2 No 60947-4-1
Threshold tripping voltage	0.75...0.2 Un
Inrush power in va	14 VA AC
Inrush power in w	10.5 W
Hold-in power consumption in va	5 VA AC
Hold-in power consumption in w	1.6...1.6 W
Operating time	10...15 ms conforming to IEC 60947-1
On-load factor	100 %
Tightening torque	< 1.4 N.m on screw clamp terminals
Compatibility code	GVAS
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.100 cm
Package 1 width	3.600 cm
Package 1 length	8.300 cm
Package 1 weight	113.000 g
Unit type of package 2	S02
Number of units in package 2	32
Package 2 height	15 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	3.876 kg
Unit type of package 3	P06
Number of units in package 3	512
Package 3 height	75.000 cm
Package 3 width	80.000 cm
Package 3 length	60.000 cm
Package 3 weight	70.016 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	Yes
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
End of life manual availability	ENVEOLI2207006
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
