TeSys GV4 Rotary handle TeSys GV4, direct, fixed, red, IP54

TeSys GV4 Rotary handle TeSys GV4, direct, fixed, red, IP54

Item Number: GV4ADN02

TeSys GV direct rotary handle, for motor circuit breakers GV4PE, LE, PEM, PB. For emergency switch usage, it provides a red handle on a yellow bezel with indication of 3 positions OFF, ON, TRIP. Equipped with a "push to trip" button. Padlockable in OFF position with up to 3 padlocks (to be ordered separately).

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range TeSys
Product or component type rotary handle

Physical

Marking OFF - Trip - ON
Range compatibility
  • TeSys TeSys GV4
  • TeSys TeSys BV4
Mounting mode fixed
Ip degree of protection IP40
Toxic heavy metal free Yes
Mercury free Yes
Rohs exemption information Yes
Environmental disclosure ENVPEP2204005EN
Reach regulation Reference contains Substances of Very High Concern above the threshold
China rohs regulation Product out of China RoHS scope
Eu rohs directive Compliant
California proposition 65 WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data Yes
Substance regulation data deliverable Yes
Legacy weee scope Out
Package 1 bare product quantity 1
Average percentage of recycled plastic content 0 %
At least in Europe
Weee label No
Weee applicability Finished product
Weee exclusion rationale Product/component not in scope – not electric/electronic device
Warranty duration(in months) bmecat 18
Accessory / separate part category control accessory
Rotary handle mounting style direct
Handle colour red
Handle front plate colour yellow
Rotary handle padlocking
  • padlock in ON position
  • 1 to 3 padlocks
  • padlock in OFF position
Mounting location front side
Locking options description 1 to 3 padlocks Ø 4 to Ø 8
Unit type of package 1 PCE
Number of units in package 1 1
Package 1 height 7.600 cm
Package 1 width 8.200 cm
Package 1 length 8.800 cm
Package 1 weight 188.000 g
Unit type of package 2 S03
Number of units in package 2 45
Package 2 height 30.000 cm
Package 2 width 30.000 cm
Package 2 length 40.000 cm
Package 2 weight 8.877 kg
Sustainable packaging No
Halogen-free status Product contains halogen above thresholds
Energy efficiency optimized False
F-gas free N/A
Updatability N/A
Take-back No
Product contributes to saved and avoided emissions No
Removable battery N/A
Average percentage of recycled metal content 0 %
Packaging made with recycled cardboard Yes
Packaging without single use plastic Yes
Scip number c5e0840b-57a9-494a-aef0-1bc772fe67cd
China rohs label 1
Halogen-free status Product contains halogen above thresholds
End of life manual availability ENVEOLI2204005EN
Take-back No
Warranty (in months) 18

Documents & downloads

Filter items
  • All

  • CAD Files and Packs

  • Technical Data Catalogues

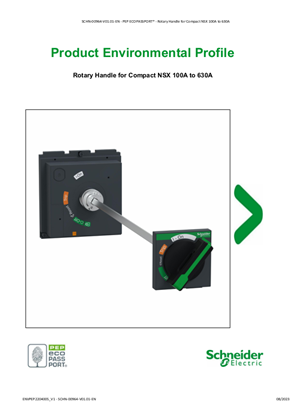

  • Environmental Disclosure

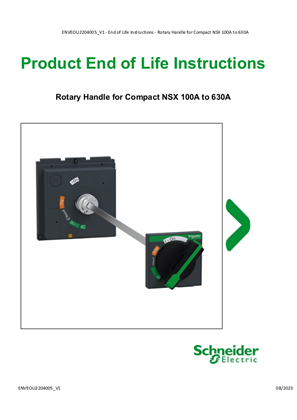

  • End of Life Manual

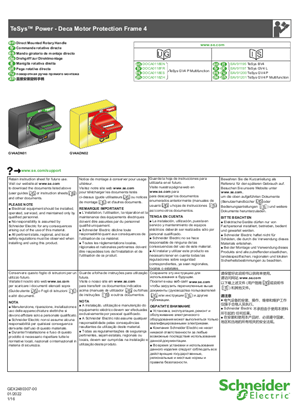

  • Installation Instruction
