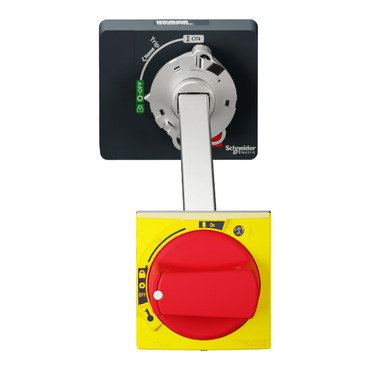

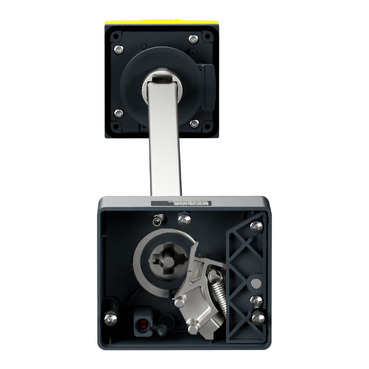

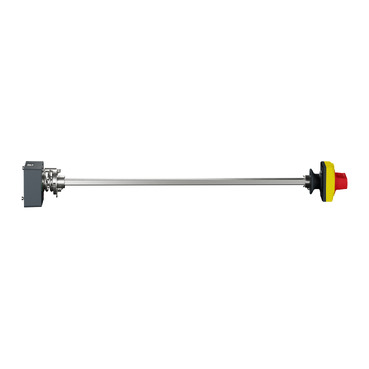

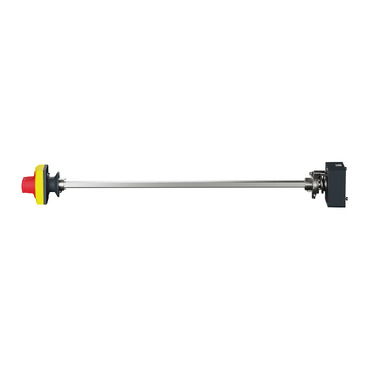

TeSys GV4 Rotary handle kit TeSys GV4, extended, fixed, red, IP54

Home ProductsIndustrialTeSysRotary handle kit

TeSys GV4 Rotary handle kit TeSys GV4, extended, fixed, red, IP54

Item Number: GV4APN02

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

  • TeSys
  • TeSys Deca

Product or component type

rotary handle kit

Physical

Marking

OFF - Trip - ON

Range compatibility

  • TeSys TeSys GV4
  • TeSys TeSys BV4
  • TeSys TeSys Deca

Mounting mode

fixed

Ip degree of protection

IP54

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2204005EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

California proposition 65

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Package 2 bare product quantity

12

Average percentage of recycled plastic content

0 %

Legacy weee scope

Out

Weee exclusion rationale

Product/component not in scope – not electric/electronic device

Weee applicability

Finished product

Weee label

No

At least in Europe

Accessory / separate part category

control accessory

Rotary handle mounting style

extended

Handle colour

red

Handle front plate colour

yellow

Rotary handle padlocking

  • padlock in OFF position
  • 1 to 3 padlocks
  • padlock in ON position

Mounting location

door of enclosure

Locking options description

1 to 3 padlocks Ø 4 to Ø 8

Back/door distance

214...627 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.000 cm

Package 1 width

9.000 cm

Package 1 length

45.800 cm

Package 1 weight

671.000 g

Unit type of package 2

S04

Number of units in package 2

12

Package 2 height

30.000 cm

Package 2 width

40.000 cm

Package 2 length

60.000 cm

Package 2 weight

8.837 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Halogen-free status

Halogen free plastic parts product

Energy efficiency optimized

False

F-gas free

N/A

Updatability

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

ab9dc4da-002c-433d-9974-4b46c472d129

Halogen-free status

Halogen free plastic parts product

End of life manual availability

ENVEOLI2204005EN

Take-back

No

Warranty (in months)

18
