TeSys D RC CIR-Clip On Contactor D09.38 3P 24

Item Number: LAD4RCE

TeSys Deca suppressor module, for LC1D09-D38, LC1DT20-DT40 contactors and CAD control relays. To be used with 24-48V AC control circuit voltage, it provides a RC protection limiting the transient voltage to 3 Uc max. Clip-on side mounting, overall size of the contactor is unchanged.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • TeSys Deca
  • TeSys Deca control relay

Range

TeSys

Product or component type

suppressor module

Product compatibility

  • 3P LC1D09...D38
  • 4P LC1DT20...DT40
  • 4P LC1D098...D258
  • CAD32, CAD50

Warranty

18 months

Physical

Mounting mode

by clips

Net weight

0.012 kg

Standards

  • IEC 60947-5-1
  • EN 60947-5-1
  • CSA C22.2 No 60947-5-1
  • UL 60947-5-1
  • GB/T 14048.5

Product certifications

  • UL
  • CSA

Ip degree of protection

IP2X conforming to IEC 60529

Ambient air temperature for operation

-25...55 °C

Ambient air temperature for storage

-40...80 °C

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP111253EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

70

Package 3 bare product quantity

2240

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

LAD4

Mounting location

side

Suppressor technology

RC circuit

[uc] control circuit voltage

24...48 V AC

Maximum peak voltage

3 Uc

Compatibility code

LAD4

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.500 cm

Package 1 width

8.000 cm

Package 1 length

4.000 cm

Package 1 weight

14.000 g

Unit type of package 2

S01

Number of units in package 2

70

Package 2 height

15.000 cm

Package 2 width

15.000 cm

Package 2 length

40.000 cm

Package 2 weight

1.185 kg

Unit type of package 3

P06

Number of units in package 3

2240

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

39.860 kg

Total lifecycle carbon footprint

0.1 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.10814681892332789

Carbon footprint of the manufacturing phase [a1 to a3]

0.1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0014215986949429036

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.035977487765089716

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.1455459053833605

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • Installation Instruction

  • Technical Drawing

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
TeSys D - CONTACTS BLOCK - 3D CAD
ZIP

TeSys D - CONTACTS BLOCK - 3D CAD

VERSION

1.0

DATE

16 Feb 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.4 MB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB
TeSys Deca U-Line Transient Suppressor
ZIP

TeSys Deca U-Line Transient Suppressor

VERSION

3.0

DATE

26 Sep 2025

REVISION

3.0

DOWNLOAD (ZIP) 593.8 KB

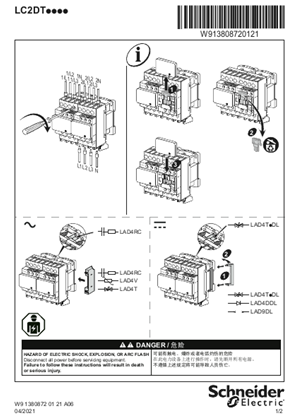

LC2 DT... 4-pole 20 to 40 A AC-1 changeover contactors pairs with screw clamp terminals - Instruction sheet
