TeSys D Mechanical and electrical interlock TeSys Deca reversing & changeover, 2 Contactors LC1D115-D150

Item Number: LA9D11502

1 PCE 0

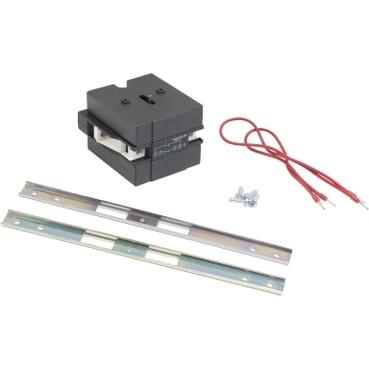

TeSys Deca mechanical interlock, for 3-pole and 4-pole contactors LC1D115, LC1D150. For assembling reversing and changeover contactors. It includes an integral electrical interlocking.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110859485	-

Specifications

Design

Range of product	TeSys Deca
Range	Linergy
Product or component type	mechanical interlock
Product compatibility	LC1D115 LC1D150
Warranty	18 months

Physical

Range compatibility	TeSys TeSys D contactor TeSys TeSys Deca
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant
California proposition 65	WARNING: Cancer - www.P65Warnings.ca.gov
California proposition 65	WARNING: Cancer - www.P65Warnings.ca.gov

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Substance regulation data deliverable	Yes
Legacy weee scope	In
	At least in Europe
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	105
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	FT
Device short name	LA9D
Accessory / separate part category	interlocking accessory
Interlocking type	electrical and mechanical
Poles description	3P 4P
Electrical circuit type	changeover reversing
Compatibility code	LA9D
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.200 cm
Package 1 width	9.600 cm
Package 1 length	23.000 cm
Package 1 weight	281.000 g
Unit type of package 2	S06
Number of units in package 2	105
Package 2 height	75.000 cm
Package 2 width	60.000 cm
Package 2 length	80.000 cm
Package 2 weight	44.080 kg
Sustainable packaging	No
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	1
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications
