TeSys D Mechanical and electrical interlock TeSys Deca reversing & changeover, 2 Contactors LC1D80-D95 AC coil

Home ProductsIndustrialTeSysMechanical and electrical interlock

TeSys D Mechanical and electrical interlock TeSys Deca reversing & changeover, 2 Contactors LC1D80-D95 AC coil

Item Number: LA9D4002

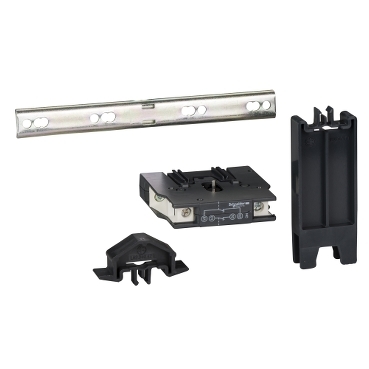

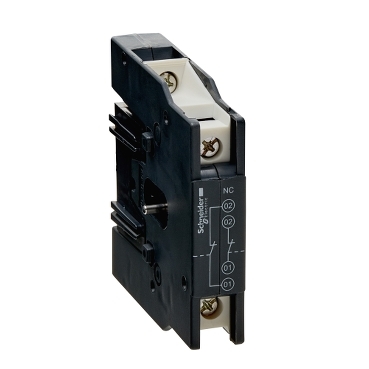

TeSys Deca mechanical interlock, for contactors LC1D80, LC1D95 with AC coils. To be used for reversing and changeover contactor assemblies. It includes an integral electrical interlocking. It conforms to RoHS/REACh regulation.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

TeSys Deca

Range

TeSys

Product or component type

mechanical interlock

Product compatibility

  • LC1D80 AC
  • LC1D95 AC

Warranty

18 months

Physical

Range compatibility

TeSys TeSys D contactor

Net weight

0.17 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP110205EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

ACC

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

LA9D

Accessory / separate part category

interlocking accessory

Interlocking type

electrical and mechanical

Poles description

  • 4P
  • 3P

Electrical circuit type

  • reversing
  • changeover

Compatibility code

LA9D

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.000 cm

Package 1 width

8.000 cm

Package 1 length

10.000 cm

Package 1 weight

162.000 g

Unit type of package 2

S02

Number of units in package 2

20

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.585 kg

Unit type of package 3

P06

Number of units in package 3

320

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

59.920 kg

Sustainable packaging

Yes

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • Installation Instruction

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
TeSys D mechanical electrical interlock kit for LC1D80/95 LC1 and LP1D40/50/65 - 3D CAD
ZIP

TeSys D mechanical electrical interlock kit for LC1D80/95 LC1 and LP1D40/50/65 - 3D CAD

VERSION

1.0

DATE

18 Feb 2022

REVISION

1.0

DOWNLOAD (ZIP) 737.8 KB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB
TeSys Deca Contactor 3P 80A 230V AC Coil
ZIP

TeSys Deca Contactor 3P 80A 230V AC Coil

VERSION

3.0

DATE

10 Oct 2025

REVISION

3.0

DOWNLOAD (ZIP) 746.8 KB

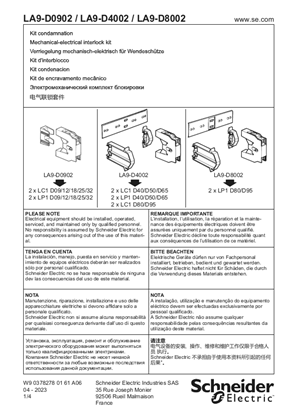

TeSys - LA9 D... Mechanical interlock for reversing contactors - Instruction Sheet
