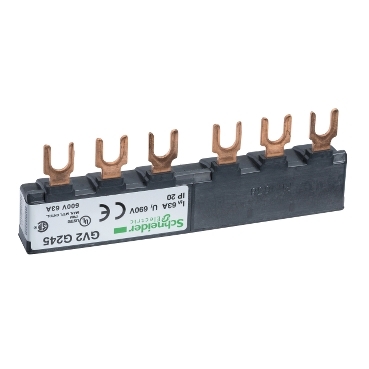

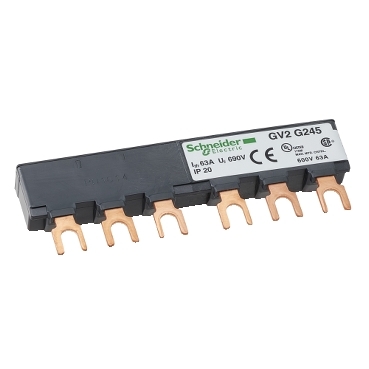

TeSys D Linergy FT Comb busbar 63 A, 2 tap-offs, 45mm pitch

Item Number: GV2G245

1 PCE 0

TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 45mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately).

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110555950	-

Specifications

Design

Range of product	TeSys GV2 TeSys fuse-disconnector TeSys U TeSys Deca
Range	Linergy
Product or component type	comb busbar

Physical

Range compatibility	TeSys GV2 TeSys Deca TeSys U
Fixing mode	terminals:
Product certifications	CE cULus
Width	89 mm
Net weight	0.036 kg
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2207006EN
Eu rohs directive	Compliant

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	FT
Device short name	GV2G
Accessory / separate part category	connection accessory
Poles description	3P
Number of tap-offs	2
[ith] conventional free air thermal current	63 A
[ui] rated insulation voltage	690 V
Connection pitch	45 mm
Compatibility code	GV2G
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2 cm
Package 1 width	4 cm
Package 1 length	9.5 cm
Package 1 weight	37 g
Unit type of package 2	S01
Number of units in package 2	100
Package 2 height	15 cm
Package 2 width	15 cm
Package 2 length	40 cm
Package 2 weight	3.862 kg
Unit type of package 3	P06
Number of units in package 3	3200
Package 3 height	77 cm
Package 3 width	80 cm
Package 3 length	60 cm
Package 3 weight	130.9 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pop declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=GV2G245_POP_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Pop directive	No POPs
End of life manual availability	ENVEOLI2207006
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
