TeSys D Kit for assembling 3P reversing Contactors LC1D09-D38 with screw clamp terminals,with electrical interlock

Item Number: LAD9R1V

TeSys Deca kit for reversing contactors assembly, for 3-pole contactors LC1D09-D38. For assembling 2 identical contactors horizontally mounted, connection by screw clamp terminals. It contains a mechanical interlock LAD9V2, an electrical interlocking LAD9V1, a set of 3 parallel bars LAD9V5, a set of 3 reverser bars LAD9V6. It conforms to RoHS/REACh regulation.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

TeSys Deca

Range

  • TeSys
  • Linergy

Product or component type

kits for reversing contactor

Product compatibility

  • LC1D09
  • LC1D12
  • LC1D18
  • LC1D25
  • LC1D32
  • LC1D38

Warranty

18 months

Physical

Range compatibility

  • TeSys TeSys D contactor
  • TeSys TeSys Deca

Net weight

0.045 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Substance regulation data deliverable

Yes

Legacy weee scope

In

Average percentage of recycled plastic content

0 %

Package 4 bare product quantity

1120

Package 3 bare product quantity

140

Package 2 bare product quantity

10

Package 1 bare product quantity

1

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

LAD9

Poles description

3P

Kit composition

  • electrical and mechanical interlock
  • set of power connection

Compatibility code

LAD9

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.500 cm

Package 1 width

8.000 cm

Package 1 length

11.000 cm

Package 1 weight

69.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

9.600 cm

Package 2 width

9.800 cm

Package 2 length

15.000 cm

Package 2 weight

726.000 g

Unit type of package 3

S03

Number of units in package 3

140

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

10.664 kg

Sustainable packaging

No

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • Installation Instruction

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
TeSys D - LA9D3260 and LAD9….. Terminal adaptor - 3D CAD
ZIP

TeSys D - LA9D3260 and LAD9….. Terminal adaptor - 3D CAD

VERSION

1.0

DATE

11 Jan 2024

REVISION

1.0

DOWNLOAD (ZIP) 880.3 KB
Linergy - Distribution and Connection Systems - English
ZIP

Linergy - Distribution and Connection Systems - English

VERSION

6.1

DATE

15 Sep 2025

REVISION

6.1

DOWNLOAD (ZIP) 45.9 MB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB
PEP_Contactors, TeSys K, 3P - AC-3 <= 440 V 9 A - 1 NO aux. - 220...230 V AC coil
ZIP

PEP_Contactors, TeSys K, 3P - AC-3 <= 440 V 9 A - 1 NO aux. - 220...230 V AC coil

VERSION

2.0

DATE

23 Oct 2025

REVISION

2.0

DOWNLOAD (ZIP) 256.2 KB

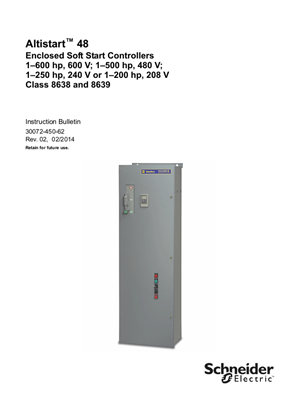

Altistart 48 Enclosed Soft Start Controllers Installation Instructions
ZIP

Altistart 48 Enclosed Soft Start Controllers Installation Instructions

VERSION

2.1

DATE

10 Oct 2024

REVISION

2.1

DOWNLOAD (ZIP) 2 MB

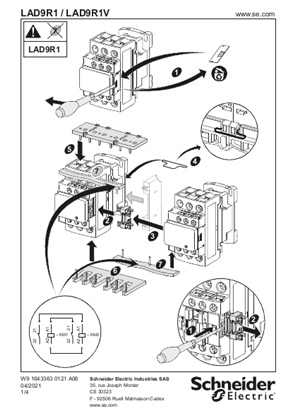

LAD9R1. Accessories for starters and equipment, open version - Instruction Sheet
