TeSys K, Control Relay, 3NO+2NC, 0 to 690V, 72VDC standard coil, screw clamp

Item Number: CAD32SD

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width45 mm

Height77 mm

Depth93 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389110405385	-

Specifications

Design

Range

TeSys|TeSys Deca

Range of product

TeSys D control relay

Product or component type

control relay

Warranty

18 months

Physical

Product certifications

CB|CCC|UL|CSA|EAC|CE|UKCA

Ambient air temperature for storage

-60...80 °C

Ip degree of protection

IP2X front face conforming to VDE 0106

Ambient air temperature for operation

-40...60 °C|60...70 °C with derating

Standards

EN/IEC 60947-5-1|GB/T 14048.5|UL 60947-5-1|CSA C22.2 No 60947-5-1|JIS C8201-5-1

[ue] rated operational voltage

<= 690 V AC 25...400 Hz

Mounting support

rail|plate

Connections - terminals

screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end|screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end|screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end|screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end|screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end|screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end

Mechanical durability

30 Mcycles

Insulation resistance

> 10 MOhm

Height

77 mm

Width

45 mm

Depth

93 mm

Net weight

0.58 kg

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP110230EN

Circularity profile

ENVEOLI1102030EN

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

Operating altitude

0...3000 m

Protective treatment

TH conforming to IEC 60068

Product name

TeSys CAD

Device short name

CAD

Contactor application

control circuit

Utilisation category

DC-13|AC-15|AC-14

Pole contact composition

3 NO + 2 NC

Control circuit type

DC standard

[uc] control circuit voltage

72 V DC

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947

[ith] conventional free air thermal current

10 A (at 60 °C)

Irms rated making capacity

140 A AC conforming to IEC 60947-5-1|250 A DC conforming to IEC 60947-5-1

[icw] rated short-time withstand current

100 A - 1 s|120 A - 500 ms|140 A - 100 ms

Associated fuse rating

10 A gG conforming to IEC 60947-5-1

[ui] rated insulation voltage

600 V UL certified|600 V CSA certified|690 V conforming to IEC 60947-5-1

Tightening torque

1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2|1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm|1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2

Control circuit voltage limits

0.1...0.25 Uc (-40-70 °C):drop-out DC|0.7...1.25 Uc (-40-60 °C):operational DC|1...1.25 Uc (60-70 °C):operational DC

Operating time

53...72 ms coil energisation and NO closing|16...24 ms coil de-energisation and NO opening|47...63 ms coil energisation and NC opening|15...25 ms coil de-energisation and NC closing

Maximum operating rate

180 cyc/mn

Time constant

28 ms

Inrush power in w

5.4...5.4 W (at 20 °C)

Hold-in power consumption in w

5.4...5.4 W at 20 °C

Minimum switching voltage

17 V

Minimum switching current

5 mA

Non-overlap time

1.5 ms on energisation between NC and NO contact|1.5 ms on de-energisation between NC and NO contact

Mechanical robustness

shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27|shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27|vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6|vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6

Compatibility code

CAD

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

5.1 cm

Package 1 width

8.6 cm

Package 1 length

10.6 cm

Package 1 weight

530.0 g

Unit type of package 2

S02

Number of units in package 2

Package 2 height

15.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

8.405 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

b67ac941-f42f-4afd-894a-0b6f9cefde62

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

37.78760202

Show all specifications

Documents & downloads

hide show

Colour ()

TeSys K, Control Relay, 3NO+2NC, 0 to 690V, 72VDC standard coil, screw clamp

Item Number: CAD32SD

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

End of Life Manual

Environmental Disclosure

Installation Instruction

Technical Drawing

Certificates (MSDS)

Declaration of Conformity

TeSys_3P CONT 9A AC3 4KW 1NO 1NC 24VDC COIL - 3D CAD

CAD32SD_CAD_DOC

TeSys - Catalog 2024 - Innovative and connected solutions for motor starters

TeSys Deca 3-pole contactor 09A DC

TeSys Deca 3-pole contactor 09A DC

LC1D 9 to 38 A AC/DC contactors with screw clamp terminals - Instruction Sheet

CAD32SD_2DSalesDrawing_PDF

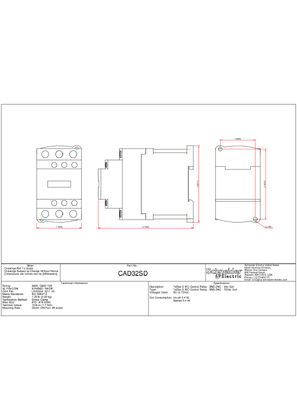

Technical drawing for CAD32SD_CAD_DOC
