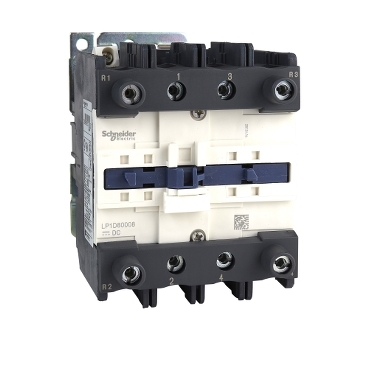

TeSys D Contactor TeSys Deca, 4P(2NO + 2NC), AC-1, <= 440 V 125 A - 110 V DC coil

Item Number: LP1D80008FW

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width96 mm

Height127 mm

Depth196 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389110228441	-

Specifications

Design

Range

TeSys

Range of product

TeSys Deca

Product or component type

contactor

Warranty

18 months

Physical

[ue] rated operational voltage

power circuit: <= 690 V AC 25...400 Hz
power circuit: <= 300 V DC

[ie] rated operational current

125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

Mechanical durability

4 Mcycles

Electrical durability

0.8 Mcycles 125 A AC-1 at Ue <= 440 V

Connections - terminals

control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end
control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid
control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid
power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end
power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end
power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end
power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end
power circuit: connector 1 4-50 mm² - cable stiffness: solid
power circuit: connector 2 4-25 mm² - cable stiffness: solid
control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end

Mounting support

plate
rail

Standards

CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508

Product certifications

BV
CCC
CSA
DNV
EAC
GL
LROS (Lloyds register of shipping)
UL

Ip degree of protection

IP20 front face conforming to IEC 60529

Height

127 mm

Width

96 mm

Depth

196 mm

Net weight

2.91 kg

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP110205EN

Others

Device short name

LP1D

Contactor application

resistive load

Utilisation category

AC-1

Poles description

[uc] control circuit voltage

110 V DC

Compatibility code

LP1D

Pole contact composition

2 NO + 2 NC

Protective cover

without

[ith] conventional free air thermal current

125 A (at 60 °C) for power circuit

Irms rated making capacity

1100 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

1100 A at 440 V for power circuit conforming to IEC 60947

[icw] rated short-time withstand current

135 A 40 °C - 10 min for power circuit
320 A 40 °C - 1 min for power circuit
640 A 40 °C - 10 s for power circuit
990 A 40 °C - 1 s for power circuit

Associated fuse rating

200 A gG at <= 690 V coordination type 1 for power circuit
160 A gG at <= 690 V coordination type 2 for power circuit

Average impedance

0.8 mOhm - Ith 125 A 50 Hz for power circuit

Power dissipation per pole

12.5 W AC-1

[ui] rated insulation voltage

power circuit: 600 V CSA certified
power circuit: 600 V UL certified
power circuit: 1000 V conforming to IEC 60947-4-1

Overvoltage category

III

Pollution degree

[uimp] rated impulse withstand voltage

8 kV conforming to IEC 60947

Safety reliability level

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Control circuit type

DC wide range

Coil technology

without built-in suppressor module

Control circuit voltage limits

0.1...0.3 Uc (-40-70 °C):drop-out DC
0.75...1.2 Uc (-40-55 °C):operational DC
1...1.2 Uc (55-70 °C):operational DC

Inrush power in w

22 W (at 20 °C)

Hold-in power consumption in w

22 W at 20 °C

Operating time

6...20 ms opening
20...35 ms closing

Time constant

75 ms

Tightening torque

control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2
power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm
power circuit: 12 N.m - on connector hexagonal screw head 4 mm

Contact compatibility

Permissible ambient air temperature around the device
