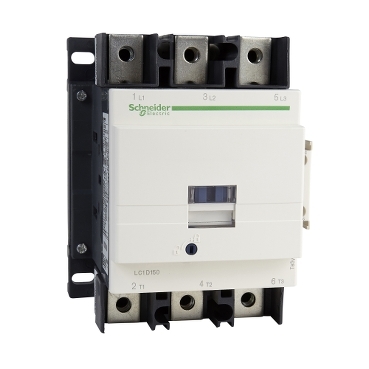

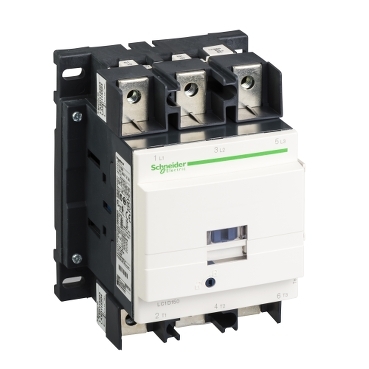

TeSys D Contactor TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 110V DC standard coil, lugs/bars terminals

Item Number: LC1D1506FD

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width120 mm

Height158 mm

Depth136 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110499155	-

Specifications

Design

Range	TeSys
Range of product	TeSys Deca
Product or component type	contactor
Warranty	18 months

Physical

[ue] rated operational voltage	power circuit: <= 1000 V AC 25...400 Hz power circuit: <= 300 V DC
[ie] rated operational current	200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 150 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 150 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Mechanical durability	8 Mcycles
Electrical durability	0.85 Mcycles 150 A AC-3 at Ue <= 440 V 1 Mcycles 200 A AC-1 at Ue <= 440 V 0.85 Mcycles 150 A AC-3e at Ue <= 440 V
Connections - terminals	control circuit: lugs-ring terminals - external diameter: 8 mm power circuit: lugs-ring terminals - external diameter: 25 mm power circuit: bars 1 - busbar cross section: 5 x 25 mm
Insulation resistance	> 10 MOhm for signalling circuit
Mounting support	plate rail
Standards	CSA C22.2 No 14 EN 60947-4-1 IEC 60947-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1
Product certifications	UL CCC CSA CE UKCA Marine EAC
Ip degree of protection	IP20 front face conforming to IEC 60529
Climatic withstand	conforming to IACS E10 exposure to damp heat
Height	158 mm
Width	120 mm
Depth	136 mm
Net weight	2.5 kg
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP0603001EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
Package 3 bare product quantity	16
Package 2 bare product quantity	2
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	LC1D
Contactor application	resistive load motor control
Utilisation category	AC-3 AC-1 AC-4 AC-3e
Poles description	3P
[uc] control circuit voltage	110 V DC
Motor power kw	40 kW at 220...230 V AC 50/60 Hz (AC-3) 75 kW at 380...400 V AC 50/60 Hz (AC-3) 80 kW at 415...440 V AC 50/60 Hz (AC-3) 90 kW at 500 V AC 50/60 Hz (AC-3) 100 kW at 660...690 V AC 50/60 Hz (AC-3) 75 kW at 1000 V AC 50/60 Hz (AC-3) 22 kW at 400 V AC 50/60 Hz (AC-4) 40 kW at 220...230 V AC 50/60 Hz (AC-3e) 75 kW at 380...400 V AC 50/60 Hz (AC-3e) 80 kW at 415...440 V AC 50/60 Hz (AC-3e) 90 kW at 500 V AC 50/60 Hz (AC-3e) 100 kW at 660...690 V AC 50/60 Hz (AC-3e) 75 kW at 1000 V AC 50/60 Hz (AC-3e)
Motor power hp	40 hp at 200/208 V AC 50/60 Hz for 3 phases motors 50 hp at 230/240 V AC 50/60 Hz for 3 phases motors 100 hp at 460/480 V AC 50/60 Hz for 3 phases motors 125 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Compatibility code	LC1D
Pole contact composition	3 NO
Protective cover	with
[ith] conventional free air thermal current	200 A (at 60 °C) for power circuit
Irms rated making capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 1660 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity	1400 A at 440 V for power circuit conforming to IEC 60947
[icw] rated short-time withstand current	250 A 40 °C - 10 min for power circuit 580 A 40 °C - 1 min for power circuit 1200 A 40 °C - 10 s for power circuit 1400 A 40 °C - 1 s for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Associated fuse rating	10 A gG for signalling circuit conforming to IEC 60947-5-1 315 A gG at <= 690 V coordination type 1 for power circuit 250 A gG at <= 690 V coordination type 2 for power circuit
Average impedance	0.6 mOhm - Ith 200 A 50 Hz for power circuit
Power dissipation per pole	24 W AC-1 13.5 W AC-3 13.5 W AC-3e
[ui] rated insulation voltage	power circuit: 600 V CSA certified power circuit: 600 V UL certified power circuit: 1000 V conforming to IEC 60947-4-1 signalling circuit: 690 V conforming to IEC 60947-1 signalling circuit: 600 V CSA certified signalling circuit: 600 V UL certified
Overvoltage category	III
Pollution degree	3
[uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947
Safety reliability level	B10d = 684932 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 10000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Control circuit type	DC standard
Coil technology	with integral suppression device
Control circuit voltage limits	0.75...1.2 Uc (-40-55 °C):operational DC 0.15...0.4 Uc (-40-70 °C):drop-out DC 1...1.2 Uc (55-70 °C):operational DC
Inrush power in w	270...365 W (at 20 °C)
Hold-in power consumption in w	2.4...5.1 W at 20 °C
Operating time	20...35 ms closing 40...75 ms opening
Time constant	25 ms
Maximum operating rate	1200 cyc/h at 60 °C
Tightening torque	control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5 control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5 power circuit: 12 N.m - on lugs-ring terminals hexagonal screw head 13 mm M8 power circuit: 12 N.m - on bars hexagonal screw head 13 mm M8 control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver pozidriv No 2 M3.5
Auxiliary contact composition	1 NO + 1 NC
Auxiliary contacts type	type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency	25...400 Hz
Minimum switching voltage	17 V for signalling circuit
Minimum switching current	5 mA for signalling circuit
Non-overlap time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Contact compatibility	M10
Protective treatment	TH conforming to IEC 60068-2-30
Permissible ambient air temperature around the device	-40...60 °C 60...70 °C with derating
Operating altitude	0...3000 m
Fire resistance	850 °C conforming to IEC 60695-2-1
Flame retardance	V1 conforming to UL 94
Mechanical robustness	vibrations contactor open (2 Gn, 5...300 Hz) vibrations contactor closed (4 Gn, 5...300 Hz) shocks contactor closed (15 Gn for 11 ms) shocks contactor open (6 Gn for 11 ms)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	16.800 cm
Package 1 width	20.800 cm
Package 1 length	18.500 cm
Package 1 weight	2.110 kg
Unit type of package 2	S03
Number of units in package 2	2
Package 2 height	30 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	4.640 kg
Unit type of package 3	P06
Number of units in package 3	16
Package 3 height	75.000 cm
Package 3 width	80.000 cm
Package 3 length	60.000 cm
Package 3 weight	45.120 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	117 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	22.22881266064238
Carbon footprint of the manufacturing phase [a1 to a3]	22 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.7508929239734572
Carbon footprint of the distribution phase [a4]	0.8 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.2654427709841767
Carbon footprint of the installation phase [a5]	0.3 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	89.11006294964027
Carbon footprint of the use phase [b2, b3, b4, b6]	89 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	4.425806016866926
Carbon footprint of the end-of-life phase [c1 to c4]	4 kg CO2 eq.
Pvc free	Yes
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	116.7810173221072
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	a530c666-91dd-4119-8d61-f1c22a361ecb
Pvc free	Yes
End of life manual availability	ENVEOLI100405EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
