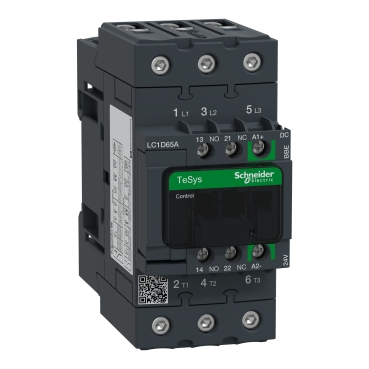

TeSys contactor-3P-AC3- <= 440V 65A - Image

TeSys D Contactor TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 65A, 24VDC coil, EverLink

Item Number: LC1D65ABBE

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width55 mm

Height122 mm

Depth120 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480987830	-

Specifications

Design

Range of product	TeSys Deca Advanced
Product or component type	contactor
Warranty	18 months

Physical

[ue] rated operational voltage	power circuit: <= 690 V AC 25...400 Hz
[ie] rated operational current	80 A (at <60 °C) at <= 440 V AC-1 for power circuit 65 A (at <60 °C) at <= 440 V AC-3 for power circuit 65 A (at <60 °C) at <= 440 V AC-3e for power circuit
Mechanical durability	10 Mcycles
Electrical durability	1.8 Mcycles 57 A AC-3 at Ue <= 440 V 0.5 Mcycles 80 A AC-1 at Ue <= 440 V 1.8 Mcycles 57 A AC-3e at Ue <= 440 V
Connections - terminals	control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible without cable end power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with cable end power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible without cable end power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with cable end power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid
Insulation resistance	> 10 MOhm for signalling circuit
Mounting support	rail plate
Connections - terminals	EverLink BTR screw connectors
Standards	EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC 60335-1
Product certifications	CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping) UKCA
Ip degree of protection	IP20 front face conforming to IEC 60529
Climatic withstand	conforming to IACS E10 exposure to damp heat conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Height	122 mm
Width	55 mm
Depth	120 mm
Net weight	1.002 kg
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1607010EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Package 2 bare product quantity	10
Package 3 bare product quantity	160
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
	At least in Europe
Device short name	LC1D
Contactor application	motor control resistive load
Utilisation category	AC-3 AC-3e AC-1 AC-4
Poles description	3P
[uc] control circuit voltage	24 V DC
Motor power kw	18.5 kW at 220/230 V AC 50/60 Hz (AC-3) 30 kW at 380/400 V AC 50/60 Hz (AC-3) 37 kW at 415 V AC 50/60 Hz (AC-3) 37 kW at 440 V AC 50/60 Hz (AC-3) 37 kW at 500 V AC 50/60 Hz (AC-3) 37 kW at 660/690 V AC 50/60 Hz (AC-3) 18.5 kW at 220/230 V AC 50/60 Hz (AC-3e) 30 kW at 380/400 V AC 50/60 Hz (AC-3e) 37 kW at 415 V AC 50/60 Hz (AC-3e) 37 kW at 440 V AC 50/60 Hz (AC-3e) 37 kW at 500 V AC 50/60 Hz (AC-3e) 37 kW at 660/690 V AC 50/60 Hz (AC-3e) 11 kW at 400 V AC 50/60 Hz (AC-4)
Motor power hp	5 hp at 115 V AC 60 Hz for 1 phase motors 10 hp at 230/240 V AC 60 Hz for 1 phase motors 20 hp at 200/208 V AC 60 Hz for 3 phases motors 20 hp at 230/240 V AC 60 Hz for 3 phases motors 40 hp at 460/480 V AC 60 Hz for 3 phases motors 50 hp at 575/600 V AC 60 Hz for 3 phases motors
Compatibility code	LC1D
Pole contact composition	3 NO
Protective cover	with
[ith] conventional free air thermal current	80 A (at 60 °C) for power circuit 10 A (at 60 °C) for signalling circuit
Irms rated making capacity	1000 A at 440 V for power circuit conforming to IEC 60947 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity	1000 A at 440 V for power circuit conforming to IEC 60947
[icw] rated short-time withstand current	110 A 40 °C - 10 min for power circuit 260 A 40 °C - 1 min for power circuit 640 A 40 °C - 10 s for power circuit 900 A 40 °C - 1 s for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Associated fuse rating	125 A gG at <= 690 V coordination type 1 for power circuit 125 A gG at <= 690 V coordination type 2 for power circuit 10 A gG for signalling circuit conforming to IEC 60947-5-1
Average impedance	1.5 mOhm - Ith 80 A 50 Hz for power circuit
Power dissipation per pole	9.6 W AC-1 6.3 W AC-3 6.3 W AC-3e
[ui] rated insulation voltage	power circuit: 690 V conforming to IEC 60947-4-1 signalling circuit: 690 V conforming to IEC 60947-1
Overvoltage category	III
Pollution degree	3
[uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947
Safety reliability level	B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Control circuit type	DC DC low consumption
Coil technology	built-in bidirectional peak limiting
Control circuit voltage limits	<= 0.1 Uc (-40-70 °C):drop-out DC 0.8...1.2 Uc (-40-60 °C):operational DC 1...1.2 Uc (60-70 °C):operational DC
Inrush power in w	11.5...11.5 W (at 20 °C)
Hold-in power consumption in w	0.5...0.5 W at 20 °C
Heat dissipation	0.5...0.5 W
Operating time	55...65 ms closing 20...80 ms opening
Maximum operating rate	3600 cyc/h at 60 °C
Tightening torque	control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm power circuit: 5 N.m - with screwdriver pozidriv No 2 control circuit: 1.7 N.m - with screwdriver pozidriv No 2
Auxiliary contact composition	1 NO + 1 NC
Auxiliary contacts type	type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency	25...400 Hz
Minimum switching voltage	17 V for signalling circuit
Minimum switching current	5 mA for signalling circuit
Non-overlap time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Maximum motor phase current	65 A
[uc] control circuit voltage	24 V
Permissible ambient air temperature around the device	-40...60 °C 60...70 °C with derating
Operating altitude	0...3000 m
Fire resistance	850 °C conforming to IEC 60695-2-1
Mechanical robustness	vibrations contactor open (2 Gn, 5...300 Hz) vibrations contactor closed (4 Gn, 5...300 Hz) shocks contactor open (10 Gn for 11 ms) shocks contactor closed (15 Gn for 11 ms)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6.300 cm
Package 1 width	13.800 cm
Package 1 length	15.400 cm
Package 1 weight	902.000 g
Unit type of package 2	S02
Number of units in package 2	10
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	9.320 kg
Unit type of package 3	P06
Number of units in package 3	160
Package 3 height	75.000 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	183.312 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	50 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	6.753680570165038
Carbon footprint of the manufacturing phase [a1 to a3]	7 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.10191524952277248
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.06610966861825177
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	41.16813320422354
Carbon footprint of the use phase [b2, b3, b4, b6]	41 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	1.4745321097755628
Carbon footprint of the end-of-life phase [c1 to c4]	1 kg CO2 eq.
Halogen-free status	Halogen free plastic parts & cables product
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	49.56437080230516
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	9bb0b51e-73b5-4128-a86b-723dbbccfe86
Halogen-free status	Halogen free plastic parts & cables product
End of life manual availability	ENVEOLI1607010
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
