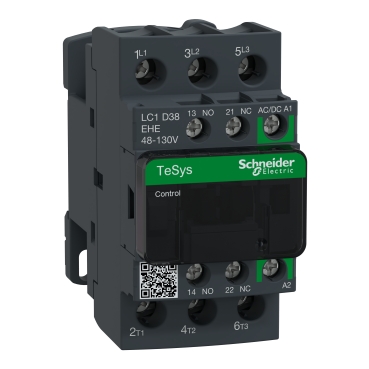

TeSys D Contactor TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 48 to 130VAC/DC coil
Item Number: LC1D38EHE
Specifications
Design
Range
- TeSys
- TeSys Deca
Range of product
Product or component type
Warranty
Physical
[ue] rated operational voltage
[ie] rated operational current
- 50 A (at <60 °C) at <= 440 V AC-1 for power circuit
- 38 A (at <60 °C) at <= 440 V AC-3 for power circuit
- 38 A (at <60 °C) at <= 440 V AC-3e for power circuit
Mechanical durability
Electrical durability
- 1.8 Mcycles 35 A AC-3 at Ue <= 440 V
- 0.9 Mcycles 50 A AC-1 at Ue <= 440 V
- 1.8 Mcycles 35 A AC-3e at Ue <= 440 V
Connections - terminals
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end
- control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid
- power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible without cable end
- power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible without cable end
- power circuit: screw clamp terminals 1 1-10 mm² - cable stiffness: flexible with cable end
- power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible with cable end
- power circuit: screw clamp terminals 1 1.5-10 mm² - cable stiffness: solid
- power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: solid
Insulation resistance
Mounting support
- plate
- rail
Standards
- EN/IEC 60947-4-1
- EN/IEC 60947-5-1
- UL 60947-4-1
- CSA C22.2 No 60947-4-1
- IEC 60335-1
Product certifications
- CCC
- CSA
- EAC
- UL
- KC
- DNV-GL
- LROS (Lloyds register of shipping)
- UKCA
Ip degree of protection
Climatic withstand
- conforming to IACS E10 exposure to damp heat
- conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Height
Width
Depth
Net weight
Reach regulation
Eu rohs directive
Mercury free
China rohs regulation
Rohs exemption information
Environmental disclosure
Circularity profile
Others
Package 1 bare product quantity
Substance regulation data deliverable
Life cycle assessment data
Device short name
Contactor application
- resistive load
- motor control
Utilisation category
- AC-3
- AC-1
- AC-3e
Poles description
[uc] control circuit voltage
- 48...130 V AC 50/60 Hz
- 48...130 V DC
Motor power kw
- 9 kW at 220...230 V AC 50 Hz (AC-3)
- 18.5 kW at 380...400 V AC 50 Hz (AC-3)
- 18.5 kW at 415 V AC 50 Hz (AC-3)
- 18.5 kW at 440 V AC 50 Hz (AC-3)
- 18.5 kW at 500 V AC 50 Hz (AC-3)
- 18.5 kW at 660...690 V AC 50 Hz (AC-3)
- 9 kW at 220...230 V AC 50 Hz (AC-3e)
- 18.5 kW at 380...400 V AC 50 Hz (AC-3e)
- 18.5 kW at 415 V AC 50 Hz (AC-3e)
- 18.5 kW at 440 V AC 50 Hz (AC-3e)
- 18.5 kW at 500 V AC 50 Hz (AC-3e)
- 18.5 kW at 660...690 V AC 50 Hz (AC-3e)
Motor power hp
- 2 hp at 115 V AC 60 Hz for 1 phase motors
- 5 hp at 230/240 V AC 60 Hz for 1 phase motors
- 10 hp at 200/208 V AC 60 Hz for 3 phases motors
- 10 hp at 230/240 V AC 60 Hz for 3 phases motors
- 20 hp at 460/480 V AC 60 Hz for 3 phases motors
- 25 hp at 575/600 V AC 60 Hz for 3 phases motors
Compatibility code
Pole contact composition
Protective cover
[ith] conventional free air thermal current
- 10 A (at 60 °C) for signalling circuit
- 50 A (at 60 °C) for power circuit
Irms rated making capacity
- 140 A AC for signalling circuit conforming to IEC 60947-5-1
- 250 A DC for signalling circuit conforming to IEC 60947-5-1
- 550 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity
[icw] rated short-time withstand current
- 100 A - 1 s for signalling circuit
- 120 A - 500 ms for signalling circuit
- 140 A - 100 ms for signalling circuit
- 60 A 40 °C - 10 min for power circuit
- 150 A 40 °C - 1 min for power circuit
- 310 A 40 °C - 10 s for power circuit
- 430 A 40 °C - 1 s for power circuit
Associated fuse rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1
- 63 A gG at <= 690 V coordination type 1 for power circuit
- 63 A gG at <= 690 V coordination type 2 for power circuit
Average impedance
Power dissipation per pole
- 5 W AC-1
- 3 W AC-3
- 3 W AC-3e
[ui] rated insulation voltage
- power circuit: 690 V conforming to IEC 60947-4-1
- signalling circuit: 690 V conforming to IEC 60947-1
Overvoltage category
Pollution degree
[uimp] rated impulse withstand voltage
Safety reliability level
- B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
- B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Control circuit type
Coil technology
Control circuit voltage limits
- <= 0.1 Uc (-40-70 °C):drop-out AC/DC
- 0.85...1.1 Uc (-40-60 °C):operational AC/DC
- 1...1.1 Uc (60-70 °C):operational AC/DC
Inrush power in va
Inrush power in w
Hold-in power consumption in va
Hold-in power consumption in w
Heat dissipation
Operating time
- 45...55 ms closing
- 20...90 ms opening
Maximum operating rate
Tightening torque
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
- power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
- power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2
- power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 M4
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 M3.5
Auxiliary contact composition
Auxiliary contacts type
- type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
- type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency
Minimum switching voltage
Minimum switching current
Non-overlap time
- 1.5 ms on de-energisation between NC and NO contact
- 1.5 ms on energisation between NC and NO contact
Permissible ambient air temperature around the device
- -40...60 °C
- 60...70 °C with derating
Operating altitude
Fire resistance
Flame retardance
Mechanical robustness
- vibrations contactor open (2 Gn, 5...300 Hz)
- vibrations contactor closed (4 Gn, 5...300 Hz)
- shocks contactor closed (15 Gn for 11 ms)
- shocks contactor open (8 Gn for 11 ms)
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Packaging made with recycled cardboard
Green premium status for reporting
Packaging without single use plastic
Scip number
Sustainable packaging
Weee
Halogen content performance
Halogen content performance
F-gas usage performance
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
