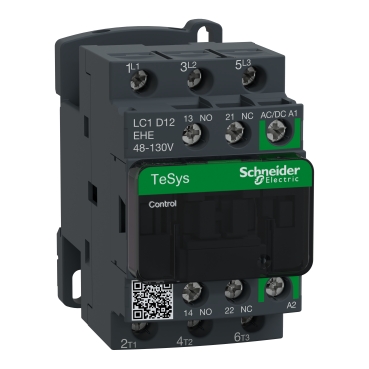

TeSys D Contactor TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 12A, 48-130VAC/DC coil
Item Number: LC1D12EHE
Specifications
Design
Range
- TeSys
- TeSys Deca
Range of product
Product or component type
Warranty
Physical
[ue] rated operational voltage
[ie] rated operational current
- 25 A (at <60 °C) at <= 440 V AC-1 for power circuit
- 12 A (at <60 °C) at <= 440 V AC-3 for power circuit
- 12 A (at <60 °C) at <= 440 V AC-3e for power circuit
Mechanical durability
Electrical durability
- 2.3 Mcycles 11 A AC-3 at Ue <= 440 V
- 0.8 Mcycles 25 A AC-1 at Ue <= 440 V
- 2.3 Mcycles 11 A AC-3e at Ue <= 440 V
Connections - terminals
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end
- control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid
- power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
- power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end
- power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end
- power circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
- power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid
- power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid
Insulation resistance
Mounting support
- plate
- rail
Standards
- EN/IEC 60947-4-1
- EN/IEC 60947-5-1
- UL 60947-4-1
- CSA C22.2 No 60947-4-1
- IEC 60335-1
Product certifications
- CCC
- CSA
- EAC
- UL
- KC
- DNV-GL
- LROS (Lloyds register of shipping)
- UKCA
Ip degree of protection
Climatic withstand
- conforming to IACS E10 exposure to damp heat
- conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Height
Width
Depth
Net weight
Reach regulation
Eu rohs directive
Mercury free
China rohs regulation
Rohs exemption information
Environmental disclosure
Circularity profile
Others
Life cycle assessment data
Substance regulation data deliverable
Package 1 bare product quantity
Device short name
Contactor application
- motor control
- resistive load
Utilisation category
- AC-1
- AC-3
- AC-3e
Poles description
[uc] control circuit voltage
- 48...130 V AC 50/60 Hz
- 48...130 V DC
Motor power kw
- 3 kW at 220...230 V AC 50 Hz (AC-3)
- 5.5 kW at 380...400 V AC 50 Hz (AC-3)
- 5.5 kW at 415 V AC 50 Hz (AC-3)
- 5.5 kW at 440 V AC 50 Hz (AC-3)
- 7.5 kW at 500 V AC 50 Hz (AC-3)
- 7.5 kW at 660...690 V AC 50 Hz (AC-3)
- 3 kW at 220...230 V AC 50 Hz (AC-3e)
- 5.5 kW at 380...400 V AC 50 Hz (AC-3e)
- 5.5 kW at 415 V AC 50 Hz (AC-3e)
- 5.5 kW at 440 V AC 50 Hz (AC-3e)
- 7.5 kW at 500 V AC 50 Hz (AC-3e)
- 7.5 kW at 660...690 V AC 50 Hz (AC-3e)
Motor power hp
- 0.5 hp at 115 V AC 60 Hz for 1 phase motors
- 2 hp at 230/240 V AC 60 Hz for 1 phase motors
- 3 hp at 200/208 V AC 60 Hz for 3 phases motors
- 3 hp at 230/240 V AC 60 Hz for 3 phases motors
- 7.5 hp at 460/480 V AC 60 Hz for 3 phases motors
- 10 hp at 575/600 V AC 60 Hz for 3 phases motors
Compatibility code
Pole contact composition
Protective cover
[ith] conventional free air thermal current
- 10 A (at 60 °C) for signalling circuit
- 25 A (at 60 °C) for power circuit
Irms rated making capacity
- 250 A at 440 V for power circuit conforming to IEC 60947
- 140 A AC for signalling circuit conforming to IEC 60947-5-1
- 250 A DC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity
[icw] rated short-time withstand current
- 100 A - 1 s for signalling circuit
- 120 A - 500 ms for signalling circuit
- 140 A - 100 ms for signalling circuit
- 30 A 40 °C - 10 min for power circuit
- 61 A 40 °C - 1 min for power circuit
- 105 A 40 °C - 10 s for power circuit
- 210 A 40 °C - 1 s for power circuit
Associated fuse rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1
- 40 A gG at <= 690 V coordination type 1 for power circuit
- 25 A gG at <= 690 V coordination type 2 for power circuit
Average impedance
Power dissipation per pole
- 1.56 W AC-1
- 0.36 W AC-3
- 0.36 W AC-3e
[ui] rated insulation voltage
- power circuit: 690 V conforming to IEC 60947-4-1
- signalling circuit: 690 V conforming to IEC 60947-1
Overvoltage category
Pollution degree
[uimp] rated impulse withstand voltage
Safety reliability level
- B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
- B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Control circuit type
Coil technology
Control circuit voltage limits
- <= 0.1 Uc (-40-70 °C):drop-out AC/DC
- 0.85...1.1 Uc (-40-60 °C):operational AC/DC
- 1...1.1 Uc (60-70 °C):operational AC/DC
Inrush power in va
Inrush power in w
Hold-in power consumption in va
Hold-in power consumption in w
Heat dissipation
Operating time
- 45...55 ms closing
- 20...90 ms opening
Maximum operating rate
Tightening torque
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
- power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
- power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
- power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Auxiliary contact composition
Auxiliary contacts type
- type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
- type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency
Minimum switching voltage
Minimum switching current
Non-overlap time
- 1.5 ms on de-energisation between NC and NO contact
- 1.5 ms on energisation between NC and NO contact
Permissible ambient air temperature around the device
- -40...60 °C
- 60...70 °C with derating
Operating altitude
Fire resistance
Flame retardance
Mechanical robustness
- vibrations contactor open (2 Gn, 5...300 Hz)
- vibrations contactor closed (4 Gn, 5...300 Hz)
- shocks contactor open (10 Gn for 11 ms)
- shocks contactor closed (15 Gn for 11 ms)
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Packaging without single use plastic
Packaging made with recycled cardboard
Scip number
Green premium status for reporting
Sustainable packaging
Weee
Halogen content performance
Halogen content performance
F-gas usage performance
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
