Datasheet
Close
Specifications
Design
Range of product
TeSys D
Range
TeSys
Product or component type

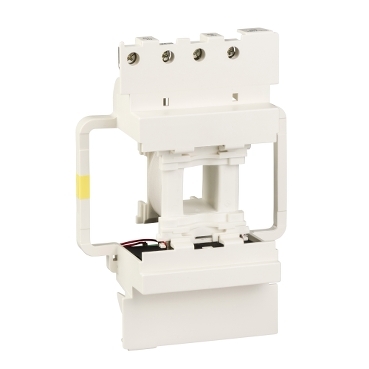

contactor coil
Product compatibility
LC1D115
Warranty
18 months
Physical
Mechanical durability
8 Mcycles
Ambient air temperature for operation
-5...60 °C
Net weight
0.26 kg
Others
Legacy weee scope
In
Package 1 bare product quantity
1
At least in Europe
Weee label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name
LX1D8
Control circuit type
AC at 50 Hz
[uc] control circuit voltage
415 V AC 50 Hz
Average resistance
368.43 Ohm at 20 °C
Inductance of closed circuit
27.65 H
Maximum operating rate
2400 cyc/h 60 °C
Coil technology
without built-in suppressor module
Control circuit voltage limits
- drop-out: 0.3...0.6 Uc at 50 Hz (at <55 °C)
- operational: 0.85...1.1 Uc at 50 Hz (at <55 °C)
Inrush power in va
300 VA 50 Hz cos phi 0.8 (at 20 °C)
Hold-in power consumption in va
22 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation
3...8 W at 50 Hz
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.2 cm
Package 1 width
11.5 cm
Package 1 length
17 cm
Package 1 weight
280 g
Sustainable packaging
No
Weee label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)
18
