TeSys D Auxiliary Contact Block TeSys Deca, 2NO + 2NC (inc. 1NO + 1NC make before break), front, screw clamp terminals

Item Number: LADC22

1 PCE 0

TeSys Deca instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 2NO+2NC contacts (NC mirror certified) rated up to 10A/690V AC, of which 1NO+1NC are with overlap time (make before break), connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, EAC),

Where To Buy

Datasheet

Download

Product Dimensions

Width44 mm

Height48 mm

Depth42 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110384475	-
10	PAC	53389110384470	-

Specifications

Design

Range	TeSys TeSys Deca
Range of product	TeSys Deca
Product or component type	auxiliary contact block

Physical

Range compatibility	TeSys D CAD TeSys D LC1D TeSys F LC1F TeSys F CR1F TeSys Deca CAD TeSys Deca LC1D
[ue] rated operational voltage	690 V AC 25...400 Hz
[ie] rated operational current	6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13
Standards	EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5
Product certifications	CB UL CSA EAC CE UKCA
Protection type	gG fuse 10 A
Mechanical durability	30 Mcycles
Insulation resistance	> 10 MOhm
Connections - terminals	screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end screw clamp terminals 1 cable(s) 1-4 mm²rigid without cable end screw clamp terminals 2 cable(s) 1-4 mm²rigid without cable end
Height	48 mm
Width	44 mm
Depth	42 mm
Net weight	0.05 kg
Environmental characteristic	normal environment
Ip degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for storage	-60...80 °C
Ambient air temperature for operation	-5...60 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1108007EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	160
Package 3 bare product quantity	1280
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	TeSys Deca
Mounting location	front
Pole contact composition	2 NO + 2 NC
Auxiliary contacts operation	make before break 1 NO + 1 NC instantaneous 1 NO + 1 NC
[ui] rated insulation voltage	690 V conforming to IEC 60947-5-1 600 V conforming to UL 600 V conforming to CSA
[ith] conventional free air thermal current	10 A (at 60 °C)
Irms rated making capacity	140 A AC conforming to IEC 60947-5-1 250 A DC conforming to IEC 60947-5-1
Permissible short-time rating	100 A 1 s 120 A 500 ms 140 A 100 ms
Minimum switching current	5 mA
Minimum switching voltage	17 V
Overlap time	1.5 ms
Non-overlap time	1.5 ms on de-energisation no overlap between NC and NO contact 1.5 ms on energisation no overlap between NC and NO contact
Tightening torque	1.7 N.m - with screwdriver flat Ø 6 mm 1.7 N.m - with screwdriver Philips No 2 1.7 N.m - with screwdriver pozidriv No 2
Shielding continuity terminal	without
Protective treatment	TH conforming to IEC 60068
Operating altitude	3000 m
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.800 cm
Package 1 width	4.200 cm
Package 1 length	5.200 cm
Package 1 weight	62.000 g
Unit type of package 2	S03
Number of units in package 2	160
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	10.422 kg
Unit type of package 3	P06
Number of units in package 3	1280
Package 3 height	75.000 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	92.000 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	4 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.41771858290220826
Carbon footprint of the manufacturing phase [a1 to a3]	0.4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.06786586045038151
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.008480726561347006
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	3.1606
Carbon footprint of the use phase [b2, b3, b4, b6]	3 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.15462428493948835
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	3.8092894548534253
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Environmental Disclosure
Installation Instruction
Certificates (MSDS)
Declaration of Conformity
eTechPub
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

TeSys D Auxiliary Contact Block TeSys Deca, 2NO + 2NC (inc. 1NO + 1NC make before break), front, screw clamp terminals

Item Number: LADC22

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Environmental Disclosure

Installation Instruction

Certificates (MSDS)

Declaration of Conformity

eTechPub

Declaration of Conformity (Sustainability)

TeSys CONTACTS BLOCK - 3D CAD

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

TeSys catalogue - 2020 - chapter B9 high power contactors TeSys F,V, FG, CR1F

Auxiliary contact block, TeSys Deca

T02EN13, T02FN13, T02GN13, T02HN13, T02JN13 Size 3 to 7 NEMA Rated Contactors Installation Instructions

CB Certificate TeSys D - LADN_LADC_Chasseneuil_Pisek

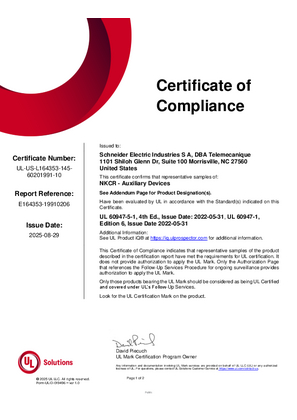

UL Certificate of Compliance _ TeSys D_LA1DN,LADN,LA1DC,LADC,LA8DN,LAD8N,LADN..R
