TeSys Mini-Vario Additional neutral block 175A, for V5 / V6

Home ProductsIndustrialTeSysAdditional neutral block

TeSys Mini-Vario Additional neutral block 175A, for V5 / V6

Item Number: VZ13

TeSys Vario add-on module, neutral pole 125-175A 690V, for TeSys Vario switch-disconnector. To be used with V5 and V6 switch bodies. Contacts with early make and late break action. Multi standards certified (IEC, UL, CSA, CCC, EAC),

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width30 mm

Height icon

Height125 mm

Depth icon

Depth63 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

TeSys

Product or component type

additional neutral block

Product compatibility

  • V5
  • V6

Warranty

18 months

Physical

Range compatibility

TeSys TeSys VARIO switch disconnector

[ue] rated operational voltage

690 V AC 50/60 Hz

Mechanical durability

30000 cycles

Electrical durability

  • 30000 cycles DC-1...5
  • 30000 cycles AC-21

Connections - terminals

  • screw clamp terminals70-70 mm² - flexible - with cable end
  • screw clamp terminals95-95 mm² - solid

Height

125 mm

Width

30 mm

Depth

63 mm

Net weight

0.25 kg

Standards

IEC 60947-3

Product certifications

  • UL
  • CSA
  • GL
  • UKCA

Ip degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20...50 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2211001

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 2 bare product quantity

30

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Legacy weee scope

In

Device short name

VZ

Performance level

high performance

Poles description

1N

Contacts type and composition

1 NO

Contact operation

early make, late break

Network type

  • AC
  • DC

Network frequency

50/60 Hz

Mounting location

  • left
  • right

[uimp] rated impulse withstand voltage

6 kV

[ith] conventional free air thermal current

175 A

Tightening torque

22.6...22.6 N.m - on screw clamp terminals

Compatibility code

neutral pole module

Protective treatment

TC

Mechanical robustness

  • vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
  • shocks 11 ms (15 gn) conforming to IEC 60068-2-27

Fire resistance

960 °C conforming to IEC 60695-2-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.500 cm

Package 1 width

7.000 cm

Package 1 length

12.000 cm

Package 1 weight

256.000 g

Unit type of package 2

S03

Number of units in package 2

30

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

8.190 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

1 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.341402027027027

Carbon footprint of the manufacturing phase [a1 to a3]

0.3 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.007846013513513512

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.02661486486486486

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.4993700000000001

Carbon footprint of the use phase [b2, b3, b4, b6]

0.5 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.13483783783783782

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Pvc free

Yes

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

1.0100707432432432

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

e8ec339b-85c3-4216-bd7f-79794a93ade1

Pvc free

Yes

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • Environmental Disclosure

  • Technical illustration

  • Technical Drawing

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
TeSys VARIO - additional block - 3D CAD
ZIP

TeSys VARIO - additional block - 3D CAD

VERSION

1.0

DATE

28 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 567 KB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB
V..GE, VC.GUN, VC.GEN VARIO enclosed switch disconnectors - Instruction Sheet
ZIP

V..GE, VC.GUN, VC.GEN VARIO enclosed switch disconnectors - Instruction Sheet

VERSION

5.0

DATE

31 Mar 2025

REVISION

5.0

DOWNLOAD (ZIP) 10.1 MB
GS1 32...315A External handle for enclosure
ZIP

GS1 32...315A External handle for enclosure

VERSION

1.1

DATE

21 May 2024

REVISION

1.1

DOWNLOAD (ZIP) 2.2 MB
V0...V6, VN Switch disconnectors VARIO - Instruction sheet
ZIP

V0...V6, VN Switch disconnectors VARIO - Instruction sheet

VERSION

4.0

DATE

29 Sep 2023

REVISION

4.0

DOWNLOAD (ZIP) 2 MB
TeSys VARIO - auxiliary contact block
ZIP

TeSys VARIO - auxiliary contact block

VERSION

1.0

DATE

08 Dec 2023

REVISION

1.0

DOWNLOAD (ZIP) 602.4 KB
PE TERMINAL 175A - TI
ZIP

PE TERMINAL 175A - TI

VERSION

1.0

DATE

24 Dec 2024

REVISION

1.0

DOWNLOAD (ZIP) 127.5 KB
3 poles VARIO switches disconnector, add-on module main pole , neutral pole or earthing module 125 and 175 A. - Dimensions
ZIP

3 poles VARIO switches disconnector, add-on module main pole , neutral pole or earthing module 125 and 175 A. - Dimensions

VERSION

1.0

DATE

03 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 115.1 KB
3 poles VARIO switches disconnector, add-on module main pole , neutral pole or earthing module 125 and 175 A. - Dimensions
ZIP

3 poles VARIO switches disconnector, add-on module main pole , neutral pole or earthing module 125 and 175 A. - Dimensions

VERSION

1.0

DATE

03 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 64.3 KB
UL_Certificate_TeSys Vario
ZIP

UL_Certificate_TeSys Vario

VERSION

1.0

DATE

23 Jan 2025

REVISION

1.0

DOWNLOAD (ZIP) 369.1 KB

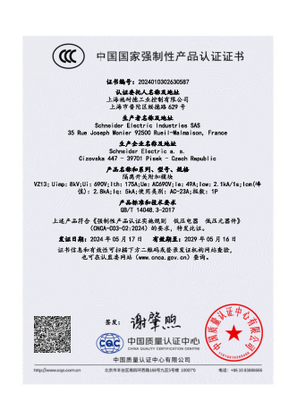

CCC_TeSys Vairo_VZ13
