PowerLogic Current transformer tropicalised DIN mount 600 5 for bars 10x40 20x32 25x25

Item Number: METSECT5MC060

1 PCE 0

This current transformer, tropicalised for busbar and cable, has a line rated current of 600 A and a secondary current rating of 5 A. This current transformer do have a 41 mm x 41 mm opening. Compatible with a triple output for bar: 40.5 mm x 10.5 mm or 32.5 mm x 20.5 mm or 25.5 mm x 25.5 mm. Burden and accuracy class as follows: class 0.5 maximum power: 12 VA, class 1 maximum power: 15 VA.

Where To Buy

Datasheet

Download

Product Dimensions

Width<ul><li>outside: 70 mm</li><li>inner: 41 mm</li></ul>

Height<ul><li>outside: 95 mm</li><li>inner: 41 mm</li></ul>

Depth<ul><li>frame : 45 mm</li><li>total : 65 mm</li></ul>

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480618864	-

Specifications

Design

Range	PowerLogic
Range of product	PowerLogic CT
Product or component type	current transformer

Physical

[in] rated current	600 A
[ue] rated operational voltage	< 720 V AC 50/60 Hz
Mounting mode	by screws clip-on insulated locking screw
Mounting support	DIN rail mounting plate busbar
Width	outside: 70 mm inner: 41 mm
Height	outside: 95 mm inner: 41 mm
Depth	frame : 45 mm total : 65 mm
Net weight	0.449 kg
Electrical insulation class	class B
Cable outer diameter	32 mm
Standards	VDE 0414 IEC 61869-2
Product certifications	CE EAC
Ip degree of protection	IP20
Relative humidity	0...95 %
Ambient air temperature for operation	-25...60 °C
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2511010EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	25
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	CT
Secondary current	5 A
Accuracy class	class 0.5 at 12 VA class 1 at 15 VA
Current transformer type	tropicalised for busbar and cable solid core
Current transformer ratio	600/5
[ith] conventional free air thermal current	36 kA
Dynamic withstand current	2.5 Ith
Maximum safety factor	5
[ui] rated insulation voltage	3 kV 50 Hz for 1 minute
Diameter	32 mm
[uimp] rated impulse withstand voltage	3 kV
Opening of bars	32.5 x 20.5 25.5 x 25.5 40.5 x 10.5
Sealing	without
Compatibility code	MC
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.500 cm
Package 1 width	9.100 cm
Package 1 length	12.000 cm
Package 1 weight	429.200 g
Unit type of package 2	S03
Number of units in package 2	25
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	11.130 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	52 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.697105951811176
Carbon footprint of the manufacturing phase [a1 to a3]	3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.2478612086909925
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.07418397546559964
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	48.10859270666275
Carbon footprint of the use phase [b2, b3, b4, b6]	48 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.7463225600160132
Carbon footprint of the end-of-life phase [c1 to c4]	0.7 kg CO2 eq.
Energy efficiency optimized	False
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	51.87406640264653
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	76ef2415-e8df-41ac-934d-14936531e31b
China rohs label	1
End of life manual availability	ENVEOLI2511010EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Product Brochures
Technical Data Catalogues
Other technical guide
End of Life Manual
Environmental Disclosure
Installation Instruction
Specification Sheet
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

PowerLogic Current transformer tropicalised DIN mount 600 5 for bars 10x40 20x32 25x25

Item Number: METSECT5MC060

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Documents & downloads

All

CAD Files and Packs

Product Brochures

Technical Data Catalogues

Other technical guide

End of Life Manual

Environmental Disclosure

Installation Instruction

Specification Sheet

Declaration of Conformity

Declaration of Conformity (Sustainability)

Current transformer tropicalised DIN mount for bars 10x40 20x32 25x25 - 3D CAD

Smart Panels: Embrace the future of power distribution (eBrochure)

PowerLogic Power Monitoring and Control Catalog - Web

PowerLogic Energy & Power Meters Catalogue for Panel Builders

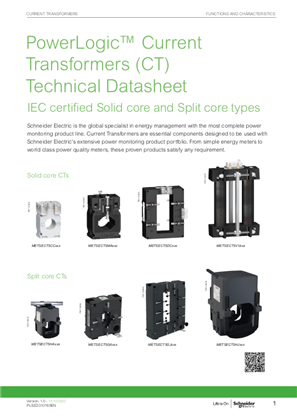

PowerLogic™ Current Transformers (CT) Technical Datasheet

PowerLogic Solid-Core CT – 800A/5A (Cable & Busbar Applications), Circularity Profile, End of Life Instructions

PowerLogic Solid-Core CT – 800A/5A (Cable & Busbar Applications), Environmental Disclosure, Product Environmental Profile

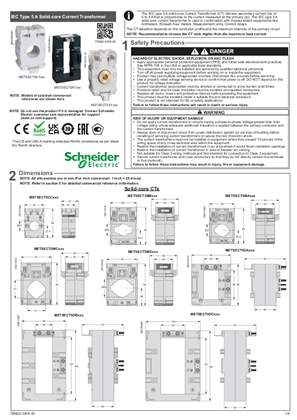

IEC Type 5A Solid-core Current Transformer - Instruction Sheet

Rogowski Coil CT Technical Data Sheet

Acti 9 iEM3000 Declaration of Conformity

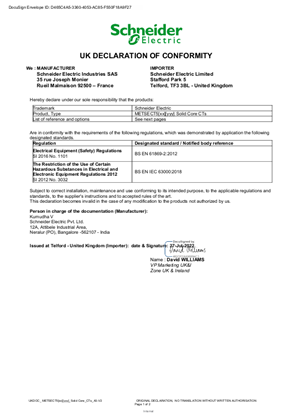

UK Declaration of Conformity

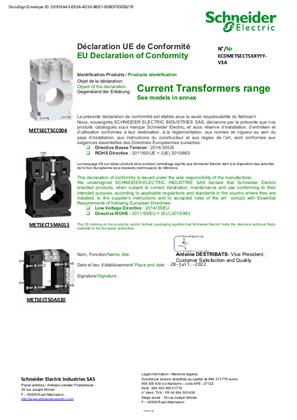

EU Declaration of Conformity_ Solid Core Current Transformer
