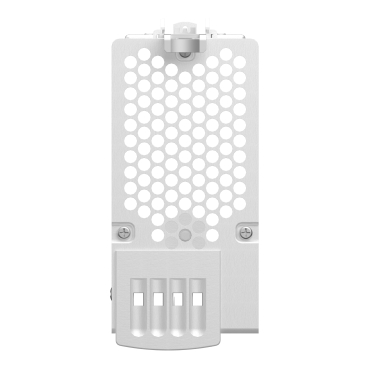

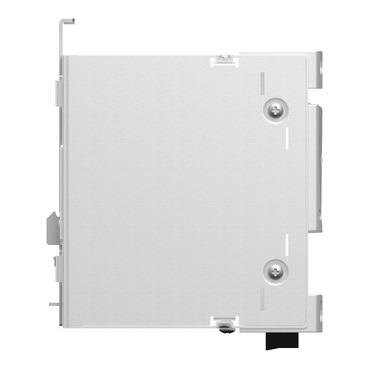

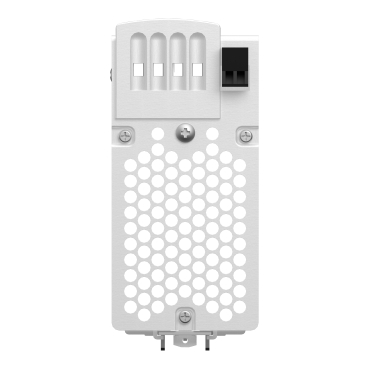

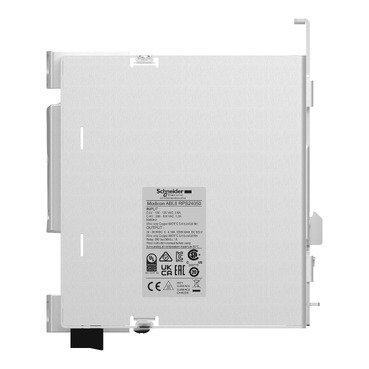

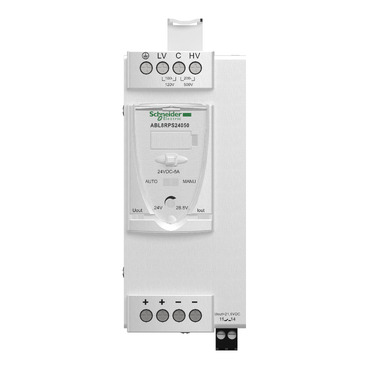

Phaseo ABL7 ABL8 Regulated Switch Power Supply 1 or 2 phase, 100..500V, 24V, 5A

Home ProductsIndustrialPhaseo ABL7 ABL8Regulated Switch Power Supply

Phaseo ABL7 ABL8 Regulated Switch Power Supply 1 or 2 phase, 100..500V, 24V, 5A

Item Number: ABL8RPS24050

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width56 mm

Height icon

Height143 mm

Depth icon

Depth125 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modicon Power Supply

Product or component type

power supply

Warranty

18 months

Physical

Rated power in w

120 W

Inrush current

30 A

Provided equipment

power factor correction filter conforming to IEC 61000-3-2

Connections - terminals

  • removable screw terminal block: 2 x 2.5 mm², for diagnostic relay
  • screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection
  • screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection
  • screw type terminals: 4 x 0.5...4 x 4 mm², (AWG 22...AWG 12) for output connection
  • screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for output ground connection

Depth

125 mm

Height

143 mm

Width

56 mm

Net weight

0.7 kg

Marking

CE

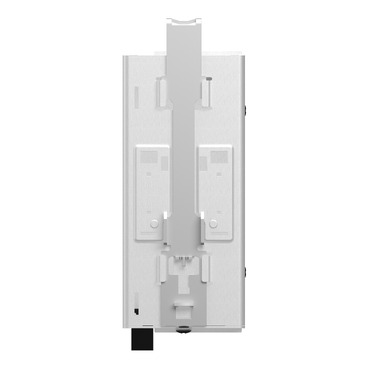

Mounting support

  • 35 x 15 mm symmetrical DIN rail
  • 35 x 7.5 mm symmetrical DIN rail

Supply

  • SELV conforming to IEC 60950-1
  • SELV conforming to IEC 60204-1
  • SELV conforming to IEC 60364-4-41

Standards

  • CSA C22.2 No 60950-1
  • UL 508
  • EN/IEC 62368-1

Product certifications

  • cCSAus
  • EAC
  • KC
  • RCM
  • UL

Environmental characteristic

  • EMC conforming to IEC 61000-6-1
  • EMC conforming to IEC 61000-6-3
  • EMC conforming to EN 55024
  • EMC conforming to IEC 61000-6-4
  • EMC conforming to EN/IEC 61204-3
  • safety conforming to IEC 60950-1
  • safety conforming to EN/IEC 61204-3

Ip degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

  • 50...60 °C with derating factor mounting position A < 2000 m
  • -25...50 °C without derating mounting position A < 2000 m

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP061201EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

In

At least in Europe

Average percentage of recycled plastic content

0 %

Package 2 bare product quantity

105

Package 1 bare product quantity

1

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Power supply type

regulated switch mode

Input voltage

  • 100...120 V AC single phase, terminal(s): N-L1
  • 200...500 V AC phase to phase, terminal(s): L1-L2

Output voltage

24 V DC

Power supply output current

5 A

Permissible temporary current boost

1.5 x In (for 4 s)

Anti-harmonic filter

low frequency harmonic currents

Input voltage limits

  • 85...132 V AC
  • 170...550 V AC

Power factor

  • 0.51 at 240 V AC
  • 0.59 at 120 V AC

Efficiency

87 %

Output voltage limits

24...28.8 V adjustable

Power dissipation in w

15.5 W

Output protection type

  • against overload, protection technology: manual or automatic reset
  • against overvoltage, protection technology: 30...32 V, manual reset
  • against short-circuits, protection technology: manual or automatic reset
  • against undervoltage, protection technology: tripping if U < 21.6 V
  • thermal, protection technology: automatic reset

Status led

  • 1 LED (green and red) output voltage
  • 1 LED (green, red and orange) output current

Output coupling

  • parallel
  • series

Operating position

vertical

Dielectric strength

  • 3500 V with between input and ground
  • 4000 V with between input and output
  • 500 V with between output and ground

Operating altitude

2000 m

Compatibility code

ABL8R

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.800 cm

Package 1 width

14.500 cm

Package 1 length

16.500 cm

Package 1 weight

906.000 g

Number of units in package 2

105

Package 2 height

75.000 cm

Package 2 width

60.000 cm

Package 2 length

80.000 cm

Package 2 weight

109.600 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

236 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

24.49896631004006

Carbon footprint of the manufacturing phase [a1 to a3]

24 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.4774469586465792

Carbon footprint of the distribution phase [a4]

0.5 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.2695966183996101

Carbon footprint of the installation phase [a5]

0.3 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

209.2079775893717

Carbon footprint of the use phase [b2, b3, b4, b6]

209 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

1.693776192858614

Carbon footprint of the end-of-life phase [c1 to c4]

2 kg CO2 eq.

Pvc free

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

236.14776366931656

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

974297e5-68e4-4a61-9a40-1443e8973a61

Pvc free

Yes

End of life manual availability

ENVEOLI120913EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Environmental Disclosure

  • End of Life Manual

  • eTechPub

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Universal Power Supply 5A
ZIP

Universal Power Supply 5A

VERSION

1.0

DATE

20 May 2024

REVISION

1.0

DOWNLOAD (ZIP) 4.8 MB
Universal Power Supply 5A
ZIP

Universal Power Supply 5A

VERSION

1.0

DATE

20 Jul 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.7 MB
Universal Power Supply 5A
ZIP

Universal Power Supply 5A

VERSION

1.0

DATE

20 Jul 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.6 MB
Regulated Switch Power Supply, 1 or 2-phase, 100..500V, 24V, 5 A
ZIP

Regulated Switch Power Supply, 1 or 2-phase, 100..500V, 24V, 5 A

VERSION

1.0

DATE

13 Apr 2022

REVISION

1.0

DOWNLOAD (ZIP) 396.5 KB
Ensure reliable power is supplied for your installation
ZIP

Ensure reliable power is supplied for your installation

VERSION

1.0

DATE

11 Apr 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.1 MB
MasterPacT MTZ MicroLogic Active Catalog 2025 - Air Circuit Breakers
ZIP

MasterPacT MTZ MicroLogic Active Catalog 2025 - Air Circuit Breakers

VERSION

2.0

DATE

28 Oct 2025

REVISION

2.0

DOWNLOAD (ZIP) 100.5 MB
Catalog Modicon Power Supply for industrial use - rail mounting
ZIP

Catalog Modicon Power Supply for industrial use - rail mounting

VERSION

5.1

DATE

29 Oct 2024

REVISION

5.1

DOWNLOAD (ZIP) 6.5 MB
ABL8RP.../WP...Regulated swich mode power supplies Phaseo Universal, Instruction Sheet (EN)
ZIP

ABL8RP.../WP...Regulated swich mode power supplies Phaseo Universal, Instruction Sheet (EN)

VERSION

6.0

DATE

16 Aug 2025

REVISION

6.0

DOWNLOAD (ZIP) 1.8 MB
ABL8RPS, ABL8RPM, and ABL8WPS Universal Power Supply Installation Instructions
ZIP

ABL8RPS, ABL8RPM, and ABL8WPS Universal Power Supply Installation Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 409.3 KB
ABL8RED24400 Instruction Sheet
ZIP

ABL8RED24400 Instruction Sheet

VERSION

1.0

DATE

11 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 420.2 KB
ABL8RPS24, ABL8RPM24200, and ABL8WPS24*00 Instruction Sheet
ZIP

ABL8RPS24, ABL8RPM24200, and ABL8WPS24*00 Instruction Sheet

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 409.3 KB
ABL8RPS... Phaseo - Universall Power Supply, Product Environmental Profile
ZIP

ABL8RPS... Phaseo - Universall Power Supply, Product Environmental Profile

VERSION

2.0

DATE

23 Feb 2024

REVISION

2.0

DOWNLOAD (ZIP) 2.2 MB
ABL8RPS... Universal range power supply, Product End-of-Life Instructions
ZIP

ABL8RPS... Universal range power supply, Product End-of-Life Instructions

VERSION

2.0

DATE

12 Jun 2023

REVISION

2.0

DOWNLOAD (ZIP) 604.7 KB
English
ZIP

English

VERSION

11.0

DATE

19 Nov 2024

REVISION

11.0

DOWNLOAD (ZIP) 2.4 MB
Phaseo, ABL8, Certificate, cULus, Ordinary Location
ZIP

Phaseo, ABL8, Certificate, cULus, Ordinary Location

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 189.5 KB
Phaseo KC Certficate ABL8RPS24xxx
ZIP

Phaseo KC Certficate ABL8RPS24xxx

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 393.6 KB

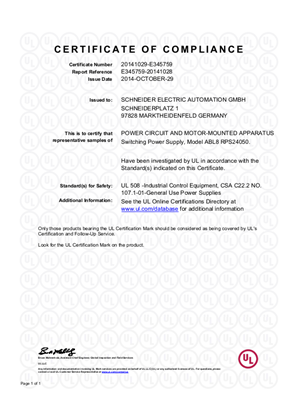

Phaseo, ABL8RPS24050, Certificate, cULus, Ordinary Location
ZIP

Phaseo, ABL8RPS24050, Certificate, cULus, Ordinary Location

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 372.3 KB

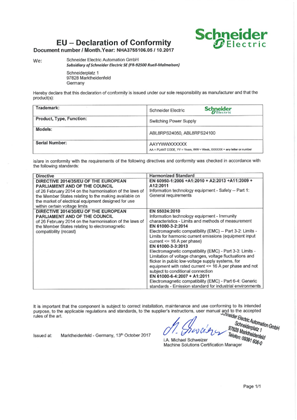

Phaseo DoC ABL8RPS24xxx
ZIP

Phaseo DoC ABL8RPS24xxx

VERSION

1.4

DATE

06 Oct 2022

REVISION

1.4

DOWNLOAD (ZIP) 431.2 KB
RCM_SupplierDeclarationOfConformity_Equinox_ABL8
ZIP

RCM_SupplierDeclarationOfConformity_Equinox_ABL8

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 3.8 MB
ABL8RPS24050 China RoHS Declaration
ZIP

ABL8RPS24050 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 China RoHS Declaration
ZIP

ABL8RPS24050 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 China RoHS Declaration
ZIP

ABL8RPS24050 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 China RoHS Declaration
ZIP

ABL8RPS24050 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 China RoHS Declaration
ZIP

ABL8RPS24050 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 China RoHS Declaration
ZIP

ABL8RPS24050 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 China RoHS Declaration
ZIP

ABL8RPS24050 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 China RoHS Declaration
ZIP

ABL8RPS24050 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 EU RoHS Declaration
ZIP

ABL8RPS24050 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 EU RoHS Declaration
ZIP

ABL8RPS24050 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 EU RoHS Declaration
ZIP

ABL8RPS24050 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 EU RoHS Declaration
ZIP

ABL8RPS24050 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 EU RoHS Declaration
ZIP

ABL8RPS24050 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 EU RoHS Declaration
ZIP

ABL8RPS24050 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 EU RoHS Declaration
ZIP

ABL8RPS24050 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 EU RoHS Declaration
ZIP

ABL8RPS24050 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 REACh Declaration
ZIP

ABL8RPS24050 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 REACh Declaration
ZIP

ABL8RPS24050 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 REACh Declaration
ZIP

ABL8RPS24050 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 REACh Declaration
ZIP

ABL8RPS24050 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 REACh Declaration
ZIP

ABL8RPS24050 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 REACh Declaration
ZIP

ABL8RPS24050 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 REACh Declaration
ZIP

ABL8RPS24050 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
ABL8RPS24050 REACh Declaration
ZIP

ABL8RPS24050 REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

Recently viewed
