OsiSense XC Standard, Limit Switch, XCKP Roller Lever Plunger

Home ProductsIndustrialOsiSenseLimit Switch

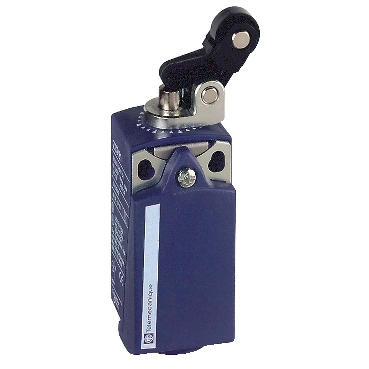

OsiSense XC Standard, Limit Switch, XCKP Roller Lever Plunger

Item Number: XCKP2127P16

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width31 mm

Height icon

Height65 mm

Depth icon

Depth30 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Telemecanique Limit switches XC Standard

Product or component type

limit switch

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Fixing mode

by the body

Number of poles

2

Cable entry

1 entry tapped for M16 x 1.5 cable gland, cable outer diameter: 4-8 mm

Electrical durability

5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C|5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C|5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Mechanical durability

15000000 cycles

Width

31 mm

Height

65 mm

Depth

30 mm

Net weight

0.1 kg

Device presentation

complete product

Ip degree of protection

IP66 conforming to IEC 60529|IP67 conforming to IEC 60529

Ik degree of protection

IK04 conforming to IEC 62262

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...70 °C

Product certifications

CSA|CCC|UL

Standards

UL 508|IEC 60947-5-1|IEC 60204-1|CSA C22.2 No 14

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP110606EN

Circularity profile

ENVEOLI110603EN

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

plastic

Others

Commercial status history

SESA301466 | Mon Jul 17 19:45:00 EDT 2023 | From Import Local | From 08 to 18

Important message

We have updated the process to order Telemecanique Sensors productsFor more information, please contact your Telemecanique Sensors representative (https://tesensors.com/global/en/distributors)You can find all product information on the Telemecanique Sensors website: https://tesensors.com

Package 1 bare product quantity

1

Package 2 bare product quantity

66

Series name

standard format

Device short name

XCKP

Sensor design

compact

Body type

fixed

Head type

plunger head

Body material

plastic

Head material

zamak

Movement of operating head

linear

Type of operator

spring return roller lever plunger thermoplastic

Type of approach

vertical approach, 1 direction

Contacts type and composition

1 NC + 1 NO

Contact operation

snap action

Switch actuation

by 30° cam

Electrical connection

screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Contacts insulation form

Zb

Positive opening

with

Positive opening minimum force

18 N

Minimum force for tripping

6 N

Maximum actuation speed

1 m/s

Repeat accuracy

0.1 mm on the tripping points with 1 million operating cycles

Contact code designation

A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A|Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A

[ui] rated insulation voltage

300 V conforming to UL 508|500 V (pollution degree 3) conforming to IEC 60947-1|300 V conforming to CSA C22.2 No 14

Maximum resistance across terminals

25 MOhm conforming to IEC 60255-7 category 3

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60664|6 kV conforming to IEC 60947-1

Short-circuit protection

10 A cartridge fuse, type gG

Terminals description iso n°1

(21-22)NC|(13-14)NO

Compatibility code

XCKP

Specific application

compact variable

Shock resistance

50 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

Electrical shock protection class

class II conforming to IEC 61140|class II conforming to NF C 20-030

Protective treatment

TC

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.600 cm

Package 1 width

4.400 cm

Package 1 length

11.000 cm

Package 1 weight

88.000 g

Unit type of package 2

S02

Number of units in package 2

66

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

6.223 kg
