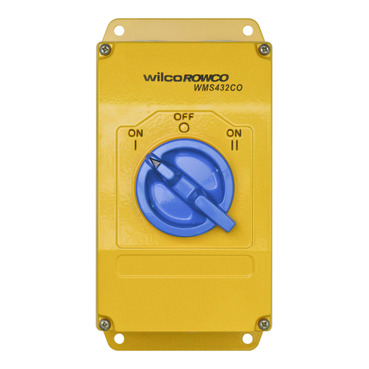

Metal Clad Changeover Switch 4 Pole, 32A, 415V Made of Cast Aluminium
Item Number: WMS432CO

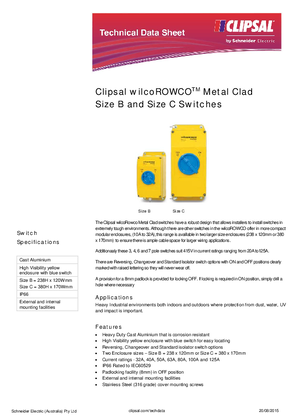

Datasheet
Close
Specifications
Design
| Range of product |
|
|---|---|
| Product brand | Clipsal |
Physical
| Device presentation | basic element with complete housing |
|---|---|
| Control type | rotary knob |
| Number of poles | 4 |
| Device mounting | base mounting |
| Local signalling | without |
| [ue] rated operational voltage | 415 V AC |
| Rated current | 32 A |
| Marking | ON-OFF |
| Fixing mode | by screws |
| Switch function | 4-pole |
| Environmental disclosure | ENVPEP120506EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | cast aluminium |
|---|
