Linergy Screw Terminal Feed Through, 4 Points, 4mm² , Grey

Home ProductsIndustrialLinergyScrew Terminal

Linergy Screw Terminal Feed Through, 4 Points, 4mm² , Grey

Item Number: NSYTRV44

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Linergy

Range

Linergy

Product or component type

terminal block

Product compatibility

Spacial enclosures

Warranty

18 months

Physical

Mounting mode

clip-on

Length

65.4 mm

Quantity per set

set of 50

Width

6.2 mm

Height

47.5 mm

Connections - terminals

  • 2 x screw terminal: downstream (M3)
  • 2 x screw terminal: upstream (M3)

Number of terminals

4

Wire stripping length

9 mm

Tool type

  • connection: screwdriver
  • disconnection: screwdriver

[ue] rated operational voltage

  • 500 V conforming to EN/IEC 60947-7-1
  • 150 V UL

[in] rated current

  • 32 A conforming to EN/IEC 60947...7-1
  • 30 A UL

Net weight

17 g

Range compatibility

  • PrismaSeT G
  • PrismaSeT P
  • PrismaSet HD
  • PrismaSeT Pack 250
  • PanelSeT
  • Mureva
  • PrismaSeT XS
  • TeSys
  • Thalassa Thalassa TBP
  • Thalassa Thalassa TBS

Product certifications

  • DNV
  • UL
  • CSA
  • GL

Ambient air temperature for operation

  • -40...130 °C conforming to IEC 60216...1
  • -40...130 °C conforming to VDE 0304-T21

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2309018EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

  • polyamide 6/6: insulating case
  • copper alloy: connector and screw
  • copper alloy: commoning link
  • chromium-nickel steel: spring

Others

Life cycle assessment data

Yes

If one of the deliverables is not relevant please give the reason

0

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

50

Package 3 bare product quantity

600

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Product name

Linergy TR

Device short name

TRV

Accessory / separate part category

connection accessory

Terminal block type

passthrough

Terminal block level

1

Nominal cross section

4 mm²

Connection position

sideways

Number of measurement input

2

Cable cross section

  • 0.14...6 mm², solid cable with cable end
  • 0.2...4 mm², flexible cable with cable end
  • 0.14...6 mm², flexible cable without cable end
  • 0.14...6 mm², solid cable without cable end

Tightening torque

0.6...0.8 N.m

Dielectric loss

  • 0.01 at 1 MHz conforming to IEC 60250
  • 0.01 at 1 MHz conforming to VDE 0303-T4

Dielectric constant

3.7 at 1 MHz

Resistivity

  • 10000 MΩ.m conforming to IEC 60093
  • 10000 MΩ.m conforming to VDE 0303-T30

Surface resistance

  • 1000 GΩ conforming to IEC 60093
  • 1000 GΩ conforming to VDE 0303-T30

Creep resistance

  • 500 CTI (> 400 kB) conforming to IEC 60093
  • 500 CTI (> 400 kB) conforming to VDE 0303-T30

Flame retardance

V0, thickness0.8 mm conforming to UL 94

Compatibility code

terminal block

Dielectric strength

1000 V conforming to IEC 60243-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.500 cm

Package 1 width

10.000 cm

Package 1 length

6.500 cm

Package 1 weight

16.000 g

Unit type of package 2

BB1

Number of units in package 2

50

Package 2 height

5.500 cm

Package 2 width

10.000 cm

Package 2 length

26.000 cm

Package 2 weight

883.000 g

Unit type of package 3

S03

Number of units in package 3

600

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

11.079 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

6 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.10117992

Carbon footprint of the manufacturing phase [a1 to a3]

0.1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.002183834

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.001364865

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

5.932823377

Carbon footprint of the use phase [b2, b3, b4, b6]

6 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.046066071

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Pvc free

Yes

Halogen-free status

Halogen free plastic parts product

Silicone-free

Yes

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

6.083618066

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

8e5413ff-f1a1-4909-ad03-977097e33bd2

Halogen-free status

Halogen free plastic parts product

Pvc free

Yes

Silicone-free

Yes

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Environmental Disclosure

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Screw terminal, Feed through, grey, 4pts, 4mm² - 3D CAD
ZIP

Screw terminal, Feed through, grey, 4pts, 4mm² - 3D CAD

VERSION

1.0

DATE

08 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB
Best Practices for Elctrical Switchboard Manufacturing Success
PDF

Best Practices for Elctrical Switchboard Manufacturing Success

VERSION

1.0

DATE

24 Apr 2019

REVISION

1.0

DOWNLOAD (PDF) 6.2 MB
Linergy - Distribution and Connection Systems - English
ZIP

Linergy - Distribution and Connection Systems - English

VERSION

6.1

DATE

15 Sep 2025

REVISION

6.1

DOWNLOAD (ZIP) 45.9 MB
Catalog PrismaSeT P
ZIP

Catalog PrismaSeT P

VERSION

8.0

DATE

06 May 2025

REVISION

8.0

DOWNLOAD (ZIP) 182.2 MB
Catalogue PrismaSeT G
ZIP

Catalogue PrismaSeT G

VERSION

7.0

DATE

18 Apr 2025

REVISION

7.0

DOWNLOAD (ZIP) 179.3 MB
SCREW TERMINAL BLOCKS NSYTRV - Product Environmental Profile
ZIP

SCREW TERMINAL BLOCKS NSYTRV - Product Environmental Profile

VERSION

1.0

DATE

30 Apr 2024

REVISION

1.0

DOWNLOAD (ZIP) 349.2 KB

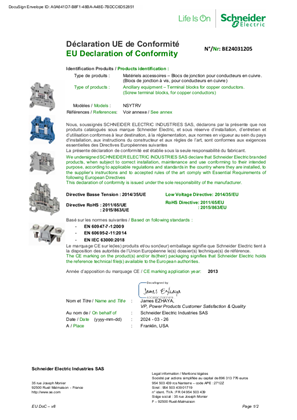

Linergy TR_Ancillary equipment_Terminal blocks for copper conductors_NSYTRV_BE24031205
