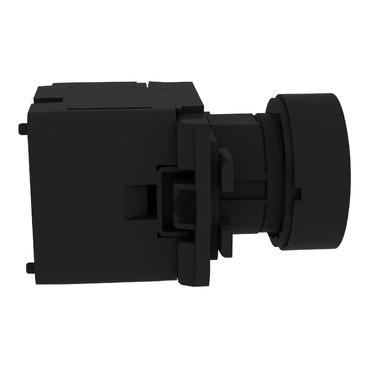

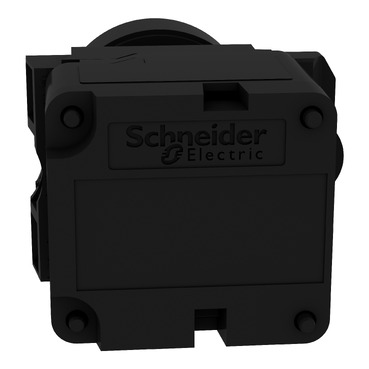

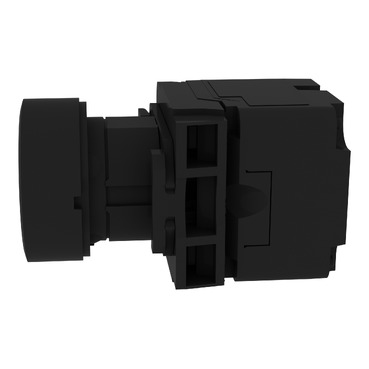

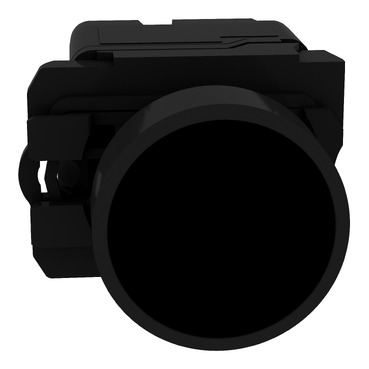

Harmony XB5R Wireless push-button and non-configurable receiver plastic, Ø22, with 1 black cap, 24V DC

Item Number: XB5RFB01

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB5R

Product or component type

wireless and batteryless package

Warranty

18 months

Physical

Transmission frequency

  • 2405 MHz for transmitter
  • 2405 MHz for receiver

Control type

wireless and batteryless push-button Ø 22 mm assembled on fixing collar

Communication port protocol

Zigbee conforming to IEEE 802.15.4

Number of channels

1

Product certifications

  • UL
  • C-Tick
  • GOST
  • CSA
  • CCC

Marking

CE

Standards

  • IEC 60947-5-1
  • CSA C22.2 No 14
  • IEC 60947-1
  • UL 508

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2303007EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Average percentage of recycled plastic content

0 %

Package 2 bare product quantity

16

Package 1 bare product quantity

1

Legacy weee scope

In

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

XB5R

Head material

plastic

Level or class

5M00G7W

Antenna type

omnidirectional

Type of receiver

non-programmable receiver (1 relay)

[us] rated supply voltage

24 V DC

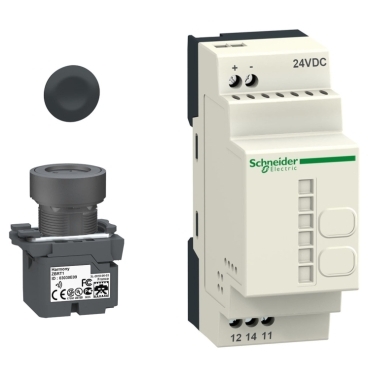

Kit composition

  • 1 transmitter
  • 1 set of caps
  • 1 receiver
  • 1 fixing collars
  • 1 diameter: 22 mm
  • 1 push-button head diameter: 22 mm

Max power consumption in w

1 mW

Modulation technique

O-QPSK

Bandwidth

5 MHz

Antenna gain

0 dBi

Customizable

no

Customizable

0

Compatibility code

XB5R

[us] rated supply voltage

24 V

Radio agreement

  • SRRC
  • ICASA
  • RSS
  • ANATEL
  • FCC
  • ARIB T66

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.300 cm

Package 1 width

10.500 cm

Package 1 length

10.800 cm

Package 1 weight

195.000 g

Unit type of package 2

S03

Number of units in package 2

16

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.666 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

31 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

5.401364420211267

Carbon footprint of the manufacturing phase [a1 to a3]

5 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.09328328305379503

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.07960521794491032

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

24.958999999999996

Carbon footprint of the use phase [b2, b3, b4, b6]

25 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.39829132368136816

Carbon footprint of the end-of-life phase [c1 to c4]

0.4 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

30.931544244891334

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

25b7f895-3732-43c8-9910-ef6005058640

End of life manual availability

ENVEOLI2303007EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Environmental Disclosure

  • End of Life Manual

  • Installation Instruction

  • Operating Manuals

  • Technical illustration

  • Application Notes

  • Declaration of Conformity

  • eTechPub

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Missing CAD 2024 project C&S
ZIP

Missing CAD 2024 project C&S

VERSION

1.0

DATE

19 Sep 2024

REVISION

1.0

DOWNLOAD (ZIP) 5.5 MB
XB5RFB01_3DCAD
ZIP

XB5RFB01_3DCAD

VERSION

1.0

DATE

13 Sep 2022

REVISION

1.0

DOWNLOAD (ZIP) 2.9 MB
Harmony Hub ecosystem
ZIP

Harmony Hub ecosystem

VERSION

1.0

DATE

29 Nov 2023

REVISION

1.0

DOWNLOAD (ZIP) 2.5 MB
Harmony Hub A masterpiece for a plug and play digital ecosystem
PDF

Harmony Hub A masterpiece for a plug and play digital ecosystem

VERSION

1.0

DATE

14 May 2019

REVISION

1.0

DOWNLOAD (PDF) 3.7 MB
Wireless Push Button and Configurable Receiver
ZIP

Wireless Push Button and Configurable Receiver

VERSION

1.0

DATE

30 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB
Wireless Push Button and Configurable Receiver
ZIP

Wireless Push Button and Configurable Receiver

VERSION

1.0

DATE

18 Sep 2025

REVISION

1.0

DOWNLOAD (ZIP) 351.1 KB

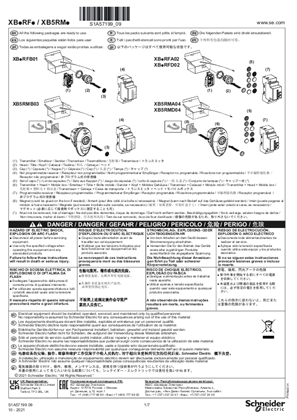

XB5RF. / XB5RM. Transmetter - Receiver package, Instruction Sheet (EN)
ZIP

XB5RF. / XB5RM. Transmetter - Receiver package, Instruction Sheet (EN)

VERSION

7.0

DATE

20 May 2024

REVISION

7.0

DOWNLOAD (ZIP) 2.3 MB

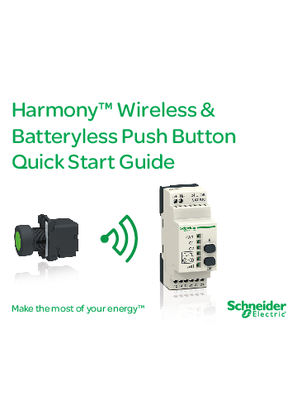

Harmony Wireless and Batteryless Push Button Quick Start Guide
