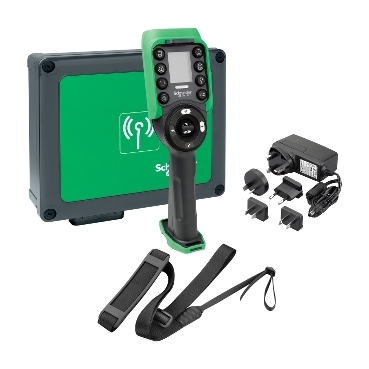

Harmony eXLhoist Standard system with charger shoulder belt, cable USB/RJ45 and config software

Item Number: XARSK12D18H

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606480662447	-

Specifications

Design

Range of product

Harmony eXLhoist

Product or component type

control station

Physical

Number of channels

Operating distance

100 m in free air

Connector type

industrial socket

Cable entry

cable gland

Communication network type

wireless: bluetooth low energy

Transmission frequency

2.4 GHz

Relative humidity

0...95 % at -20...45 °C storage

Standards

EN/IEC 60204-1 safety
EN 14439 hoisting applications
EN 14492 hoisting applications
ETSI EN 301 489-1 radio
ETSI EN 301 489-3 radio
ETSI EN 301 489-17 radio
EN/ISO 13849-1 safety
ARIB STD-T81 radio
EN/IEC 62061 safety
EN/IEC 61508 safety
EN/ISO 13850 safety
EN/IEC 60204-32 hoisting applications
EN 13557 hoisting applications
EN 12077-2 hoisting applications
EN 15011 hoisting applications

Product certifications

CE
UL
CSA
C-Tick
JIS
KC
EAC

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

China rohs regulation

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1403029EN

Circularity profile

ENVEOLI1403029EN

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Commercial status history

SESA301466
Wed Oct 25 00:50:00 EDT 2023
From Import Local
From 18 to 19

Package 1 bare product quantity

Device short name

XARS

Control station type

wireless

Product specific application

hoisting applications
material handling

Control station application

stop function: SIL 2 maximum (can reach PL d/category 3) conforming to EN/IEC 62061
stop function: SIL 2 maximum (can reach PL d/category 3) conforming to EN/ISO 13849-1
emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to EN/IEC 62061
emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to EN/ISO 13849-1
motion function: SIL 1 maximum (can reach PL c/category 1) conforming to EN/IEC 62061
motion function: SIL 1 maximum (can reach PL c/category 1) conforming to EN/ISO 13849-1
limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to EN/IEC 62061
limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to EN/ISO 13849-1

Kit composition

shoulder belt
base station
configuration software
cable
remote control

Radio agreement

ANATEL
SRRC
ICASA
ARIB
FCC
RSS

Electromagnetic compatibility

resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2
resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2
resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

19.8 cm

Package 1 width

28.5 cm

Package 1 length

30.8 cm

Package 1 weight

3.092 kg

Unit type of package 2

S04

Number of units in package 2

Package 2 height

30.0 cm

Package 2 width

40.0 cm

Package 2 length

60.0 cm

Package 2 weight

7.089 kg

Scip number

6e438e59-42d1-4633-bfe2-cb5ef607659b

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
