Harmony Solid State Relays Solid state modular relay 6A, DIN rail mount, random switching, input 18…36V AC, output 24...280V AC

Item Number: SSM1A16B7R

1 PCE 0

Where To Buy

Datasheet

Download

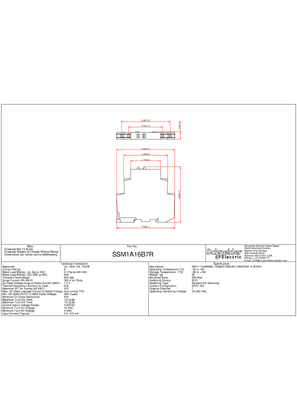

Product Dimensions

Width11 mm

Height90.3 mm

Depth83.7 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606480579448	-

Specifications

Design

Range of product	Harmony Solid State Relays
Product or component type	solid state relay up to 10 A

Physical

Number of channels	1
Connections - terminals	screw connectors
Mounting support	symmetrical DIN rail
[in] rated current	6 A
Connections - terminals	screw terminals: 1 x 0.3...1 x 1.5 mm², (AWG 22...AWG 16) for input screw terminals: 1 x 0.3...1 x 2.5 mm², (AWG 22...AWG 14) for output
Insulation resistance	1000 MOhm at 500 V DC
Local signalling	LED (green) for input status
Width	11 mm
Height	90.3 mm
Depth	83.7 mm
Net weight	0.05 kg
Device presentation	complete product
Standards	IEC 60950-1 IEC 62314 IEC 61000
Product certifications	UL CSA
Marking	CE
Ip degree of protection	IP20
Ambient air temperature for operation	-30...80 °C
Ambient air temperature for storage	-30...100 °C
Reach free of svhc	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1307069EN
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Device short name	SSM
Network number of phases	1 phase
[uc] control circuit voltage	18...36 V
Output switching mode	random voltage switching
Output voltage	24...280 V AC
[uc] control circuit voltage	18...36 V AC
Tightening torque	0.5...0.8 N.m for input 0.5...0.8 N.m for output
Capacitance unbalance	10 pF for input/output
Minimum switching voltage	18 V AC turn-on
Maximum switching voltage	4 V AC turn-off
Input current limits	3.5...8.5 mA
Solid state output type	random voltage switching SCR output
Load current	0.15...6 A
Absolute maximum voltage	600 V
Surge current	285 A for 16.6 ms 300 A for 20 ms
Maximum voltage drop	<1.3 V on-state
Motor power hp	0.16 hp 40 °C 240 V AC
Maximum i²t for fusing	410 A².s for 10 ms at 50 Hz 375 A².s for 8.33 ms at 60 Hz
Maximum leakage current	0.1 mA off-state
Dv/dt	500 V/µs off-state at maximum voltage
Response time	30 ms (turn-off) 20 ms (turn-on)
Cos phi	0.5...0.5 (with maximum load)
Overvoltage category	III
Flame retardance	V0 conforming to UL 94
Dielectric strength	4 kV AC for input/output 4 kV AC for input or output to case
Pollution degree	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.5 cm
Package 1 width	9.0 cm
Package 1 length	9.5 cm
Package 1 weight	76.0 g
Unit type of package 2	S02
Number of units in package 2	96
Package 2 height	15.0 cm
Package 2 width	30.0 cm
Package 2 length	40.0 cm
Package 2 weight	7.67 kg
Sustainable packaging	Yes
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	6
End of life manual availability	ENVEOLI1307069EN
Warranty (in months)	18
