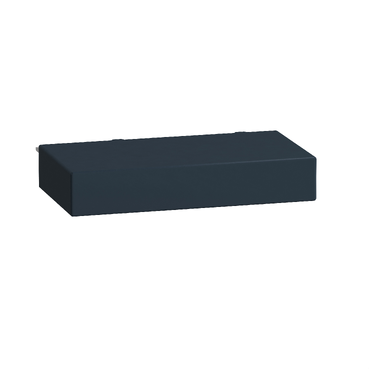

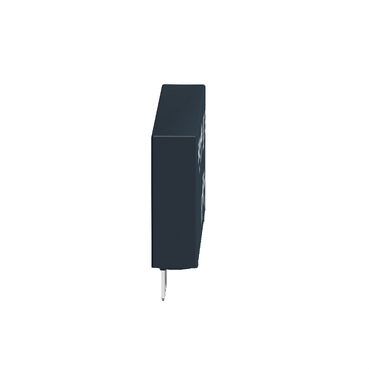

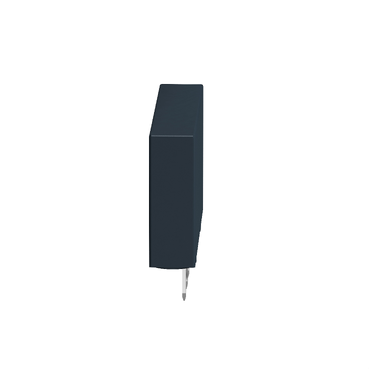

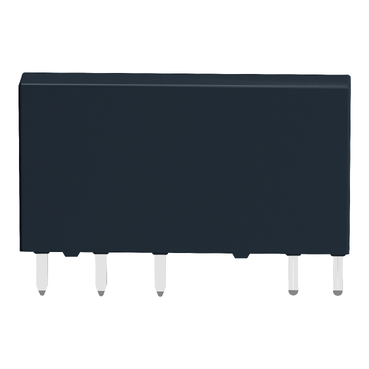

Harmony Electromechanical Relays, Slim interface plug in relay, 6A, 1CO, standard, 24V DC

Home ProductsIndustrialHarmonySlim interface plug in relay

Harmony Electromechanical Relays, Slim interface plug in relay, 6A, 1CO, standard, 24V DC

Item Number: RSL1AB4BD

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width5 mm

Height icon

Height28 mm

Depth icon

Depth18.5 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Electromechanical Relays

Product or component type

plug-in relay

Warranty

18 months

Physical

Control type

without push-button

[in] rated current

6 A

[ie] rated operational current

6 A (AC-1/DC-1) conforming to IEC/UL

Mechanical durability

10000000 cycles

Electrical durability

60000 cycles, 6 A at 250 V, AC-1 C/O

Mounting support

socket or PCB

Device presentation

complete product

Width

5 mm

Height

28 mm

Depth

18.5 mm

Net weight

0.0054 kg

Ip degree of protection

IP40 conforming to IEC 60529

Ambient air temperature for operation

-40...55 °C

Standards

  • CSA C22.2 No 14
  • IEC 61810-1
  • UL 508

Product certifications

  • CSA
  • UL
  • EAC

Ambient air temperature for storage

-40...70 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP1405004EN

Circularity profile

ENVEOLI1405004EN

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Contacts material

silver alloy (AgSnO2)

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Package 3 bare product quantity

500

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Series name

slim interface relay

Device short name

RSL

Contact operation

standard

Contacts type and composition

1 C/O

[uc] control circuit voltage

24 V DC

Status led

without

[uc] control circuit voltage

24 V

[ithe] conventional enclosed thermal current

6 A at -40-55 °C

[uimp] rated impulse withstand voltage

6 kV conforming to IEC

Minimum switching current

100 mA

Minimum switching voltage

12 V

Minimum switching capacity

120 mW

Rated operational voltage limits

18...33.6 V DC

[ui] rated insulation voltage

  • 250 V conforming to IEC
  • 277 V conforming to cUL

Operating time

  • 5 ms reset
  • 12 ms

Maximum switching voltage

277 V

Drop-out voltage threshold

>= 0.05 Uc

Load current

6 A at 250 V AC 0.5 mm mounting distance

Maximum switching capacity

  • 1500 VA
  • 150 W

Terminals description iso n°1

  • (11-12-14)OC
  • (A1-A2)CO

Compatibility code

RSL

Average resistance

3390 Ohm at 23 °C +/- 15 %

Average coil consumption

0.17 W

Safety reliability data

B10d = 60000

Operating rate

  • <= 360 cycles/hour under load
  • <= 18000 cycles/hour no-load

Protection category

RT III

Operating position

any position

Test levels

level A group mounting

Shape of pin

flat (PCB type)

Dielectric strength

  • 1000 V AC between contacts
  • 4000 V AC between coil and contact

Vibration resistance

+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6

Shock resistance

  • 5 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27
  • 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.500 cm

Package 1 width

1.500 cm

Package 1 length

2.800 cm

Package 1 weight

5.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

0.700 cm

Package 2 width

2.400 cm

Package 2 length

30.500 cm

Package 2 weight

71.000 g

Unit type of package 3

S01

Number of units in package 3

500

Package 3 height

15.000 cm

Package 3 width

15.000 cm

Package 3 length

40.000 cm

Package 3 weight

3.913 kg

Green premium status for reporting

Green Premium product

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Toxic free

Yes

Phenolic free solution

Yes

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

3.2986630167

Global warming ; total life cycle​

3 kg CO2 eq.

Minimum percentage of recycled plastic content

0
