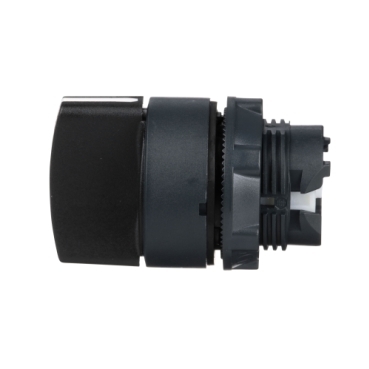

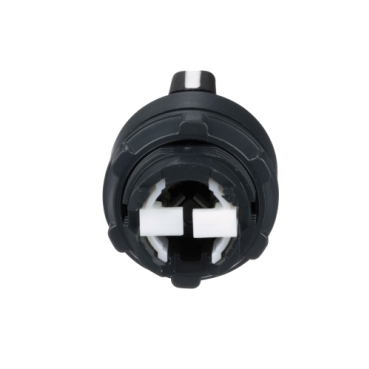

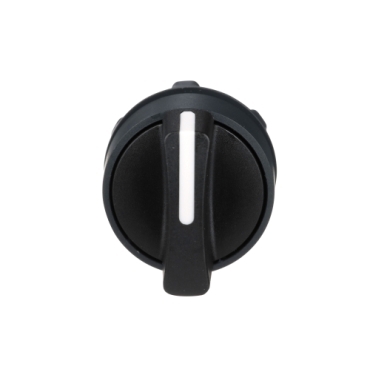

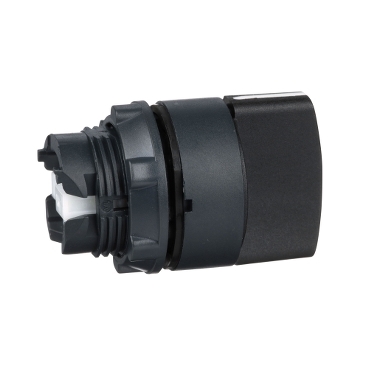

Harmony XB5 Selector switch head plastic, black, 22mm, 3 positions, stay put

Item Number: ZB5AD3

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110905069	-

Specifications

Design

Range of product

Harmony XB5

Product or component type

head for selector switch

Warranty

18 months

Physical

Sale per indivisible quantity

Net weight

0.017 kg

Mechanical durability

1000000 cycles

Device presentation

basic element

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP67 conforming to IEC 60529
IP69 conforming to IEC 60529
IP69K

Ik degree of protection

IK06 conforming to IEC 50102

Standards

IEC 60947-5-1
UL 508
CSA C22.2 No 14
JIS C8201-5-1
IEC 60947-1
IEC 60947-5-4
JIS C8201-1

Product certifications

DNV
CSA
BV
LROS (Lloyds register of shipping)
UL listed

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2308008EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

Package 2 bare product quantity

200

Package 3 bare product quantity

1600

Average percentage of recycled plastic content

0 %

Legacy weee scope

Out

Weee label

At least in Europe

Device short name

ZB5

Bezel material

dark grey plastic

Mounting diameter

22 mm

Head type

standard

Shape of signaling unit head

round

Type of operator

stay put

Operator profile

black standard handle

Operator position information

3 positions +/- 45°

Cad overall width

29 mm

Cad overall height

29 mm

Cad overall depth

46 mm

Main group

selector switch

Group of product

non illuminated

Station name

XALD 1...5 cut-outs
XALK 2...5 cut-outs

Cap/operator or lens colour

black

Electrical composition code

C3 for <6 contacts using single blocks in front mounting
C4 for <6 contacts using single and double blocks in front mounting
C5 for <5 contacts using single blocks in front mounting
C6 for <5 contacts using single and double blocks in front mounting
C7 for <4 contacts using single blocks in front mounting
C8 for <4 contacts using single and double blocks in front mounting
C11 for <3 contacts using single blocks in front mounting
SF1 for <3 contacts using single blocks in front mounting
SR1 for <3 contacts using single blocks in rear mounting

Customizable

Compatibility code

ZB5

Protective treatment

Overvoltage category

class II conforming to IEC 60536

Nema degree of protection

NEMA 13
NEMA 4X

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

3.700 cm

Package 1 width

5.400 cm

Package 1 length

5.900 cm

Package 1 weight

24.000 g

Unit type of package 2

S03

Number of units in package 2

200

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

5.288 kg

Unit type of package 3

P06

Number of units in package 3

1600

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

52.604 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.2 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.1157624926

Carbon footprint of the manufacturing phase [a1 to a3]

0.1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0022230087

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0057890891

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Carbon footprint of the end-of-life phase [c1 to c4]

0.0298632279

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Total lifecycle carbon footprint

0.1536378183

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Packaging without single use plastic

End of life manual availability

ENVEOLI2308008EN

Take-back

Warranty (in months)
