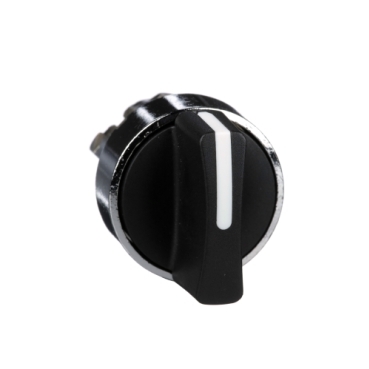

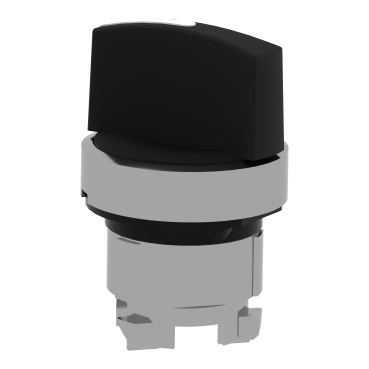

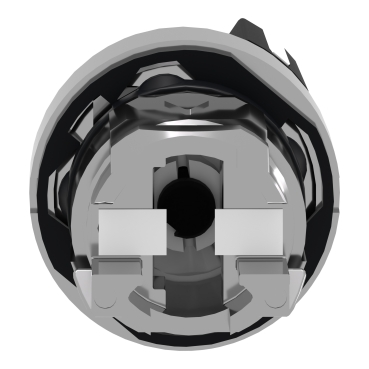

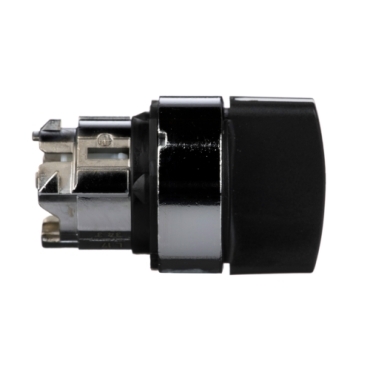

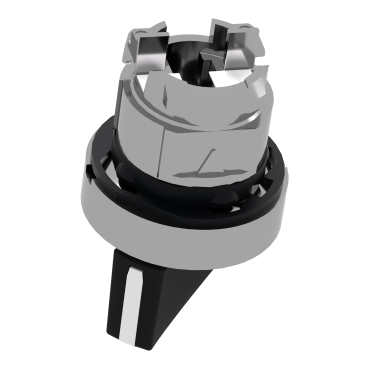

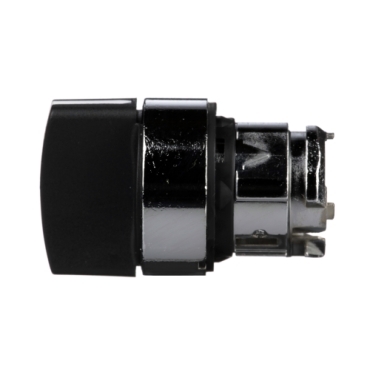

Harmony XB4 Selector switch head metal, black, 22mm, 2 positions, stay put

Home ProductsIndustrialHarmonySelector switch head

Harmony XB4 Selector switch head metal, black, 22mm, 2 positions, stay put

Item Number: ZB4BD2

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB4

Product or component type

head for selector switch

Warranty

18 months

Physical

Sale per indivisible quantity

1

Net weight

0.04 kg

Mechanical durability

1000000 cycles

Device presentation

basic element

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

  • IP67 conforming to IEC 60529
  • IP69
  • IP69K

Ik degree of protection

IK06 conforming to IEC 50102

Standards

  • JIS C8201-5-1
  • IEC 60947-5-1
  • IEC 60947-5-4
  • IEC 60947-1
  • CSA C22.2 No 14
  • IEC 60947-5-5
  • UL 508
  • JIS C8201-1

Product certifications

  • CSA
  • DNV
  • BV
  • LROS (Lloyds register of shipping)
  • UL listed

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2308005EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

5

Package 3 bare product quantity

250

Package 4 bare product quantity

2000

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Device short name

ZB4

Bezel material

chromium plated metal

Mounting diameter

22 mm

Head type

standard

Shape of signaling unit head

round

Type of operator

stay put

Operator profile

black standard handle

Operator position information

2 positions 90°

Cad overall width

29 mm

Cad overall height

29 mm

Cad overall depth

44 mm

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Electrical composition code

  • C3 for <6 contacts using single blocks in front mounting
  • C4 for <6 contacts using single and double blocks in front mounting
  • C5 for <5 contacts using single blocks in front mounting
  • C6 for <5 contacts using single and double blocks in front mounting
  • C7 for <4 contacts using single blocks in front mounting
  • C8 for <4 contacts using single and double blocks in front mounting
  • C11 for <3 contacts using single blocks in front mounting
  • C15 for <1 contacts using single blocks in front mounting

Main group

selector switch

Group of product

non illuminated

Cap/operator or lens colour

black

Customizable

no

Customizable

0

Compatibility code

ZB4

Protective treatment

TH

Overvoltage category

class I conforming to IEC 60536

Nema degree of protection

  • NEMA 13
  • NEMA 4X

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

  • 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
  • 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.500 cm

Package 1 width

5.400 cm

Package 1 length

5.400 cm

Package 1 weight

44.000 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

5.200 cm

Package 2 width

3.400 cm

Package 2 length

26.500 cm

Package 2 weight

224.000 g

Unit type of package 3

S03

Number of units in package 3

250

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

11.706 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.3 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.2662582233

Carbon footprint of the manufacturing phase [a1 to a3]

0.3 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0052307538

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0064685381

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.0459398383

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.3238973535

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

End of life manual availability

ENVEOLI2308005EN

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • End of Life Manual

  • Environmental Disclosure

  • Technical illustration

  • Technical Drawing

  • eTechPub

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
ZB4BD2_2CAD
ZIP

ZB4BD2_2CAD

VERSION

1.0

DATE

20 Jul 2023

REVISION

1.0

DOWNLOAD (ZIP) 251.8 KB
Discover the Harmony XB4 metal Control and signaling units catalog
ZIP

Discover the Harmony XB4 metal Control and signaling units catalog

VERSION

17.0

DATE

13 Feb 2025

REVISION

17.0

DOWNLOAD (ZIP) 34.5 MB
XB4-XB5 - Mounting - Instruction Sheet
ZIP

XB4-XB5 - Mounting - Instruction Sheet

VERSION

1.0

DATE

09 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 441.7 KB
XB4.. / XB5... Mounting, Instruction Sheet
ZIP

XB4.. / XB5... Mounting, Instruction Sheet

VERSION

2.0

DATE

06 Dec 2024

REVISION

2.0

DOWNLOAD (ZIP) 453.4 KB
Harmony XB4B/XB5A, ZB4B/ZB5A 22mm Push Buttons Installation Instructions
ZIP

Harmony XB4B/XB5A, ZB4B/ZB5A 22mm Push Buttons Installation Instructions

VERSION

1.0

DATE

22 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 152.9 KB
ZB4..., ZB5... Mounting XB4 pushbuttons chromium plated metal bezel and XB5 plastic bezel with or without circular yellow legends ZBY9.2., Instruction Sheet (EN)
ZIP

ZB4..., ZB5... Mounting XB4 pushbuttons chromium plated metal bezel and XB5 plastic bezel with or without circular yellow legends ZBY9.2., Instruction Sheet (EN)

VERSION

1.0

DATE

22 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.7 MB
Harmony XB5 Key Selector Switch
ZIP

Harmony XB5 Key Selector Switch

VERSION

1.0

DATE

16 Sep 2025

REVISION

1.0

DOWNLOAD (ZIP) 334.7 KB
Harmony XB5 Key Selector Switch
ZIP

Harmony XB5 Key Selector Switch

VERSION

1.0

DATE

16 Sep 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB
Technical Illustration - Dimensions
ZIP

Technical Illustration - Dimensions

VERSION

1.0

DATE

19 Sep 2024

REVISION

1.0

DOWNLOAD (ZIP) 334.8 KB

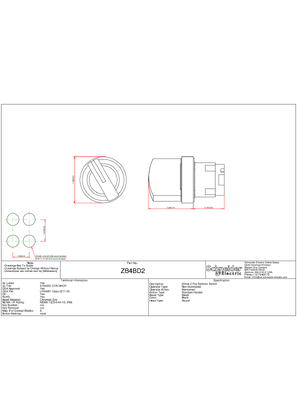

ZB4BD2_2DSalesDrawing_PDF
