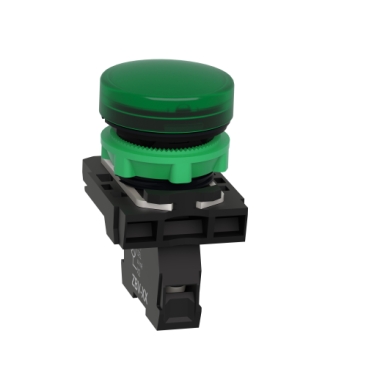

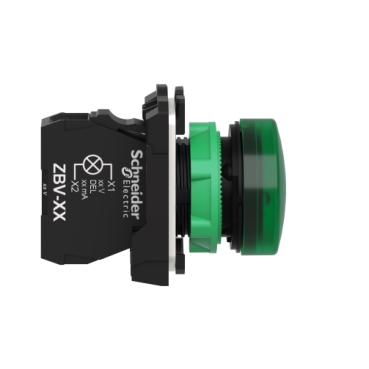

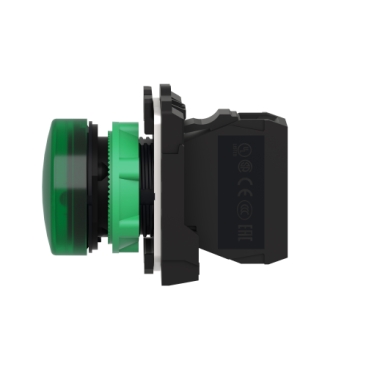

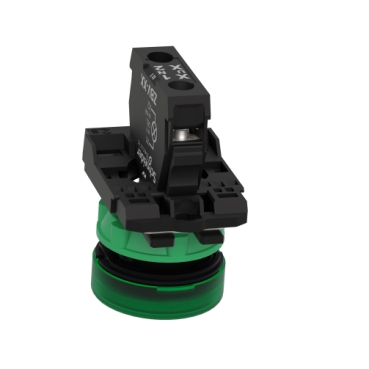

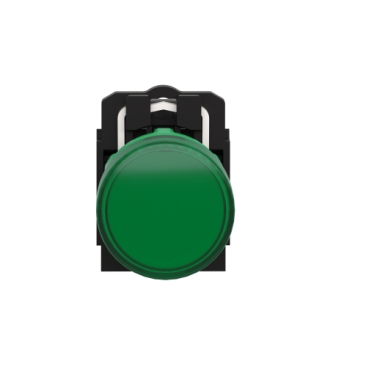

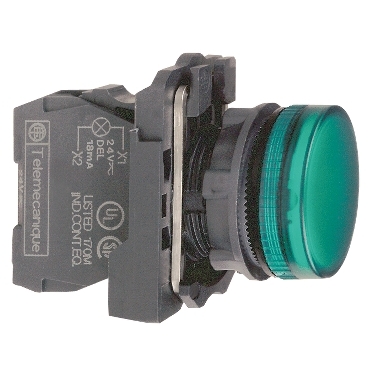

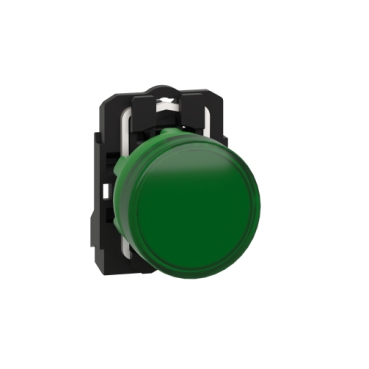

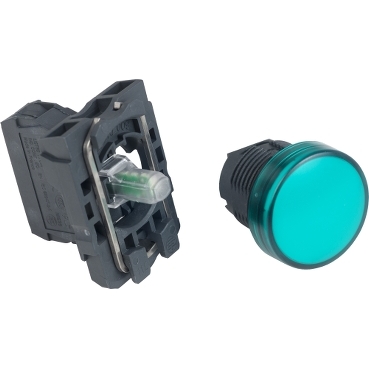

Harmony XB5 Pilot light grey plastic, green, 22mm, universal LED, plain lens, 24V AC DC

Item Number: XB5AVB3

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width30 mm

Height42 mm

Depth54 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110903775	-
5	PAC	53389110903770	-

Specifications

Design

Range of product	Harmony XB5
Product or component type	pilot light
Warranty	18 months

Physical

Sale per indivisible quantity	1
Device presentation	complete product
Height	42 mm
Width	30 mm
Depth	54 mm
Net weight	0.038 kg
Connections - terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Ip degree of protection	IP66 conforming to IEC 60529 IP67 conforming to IEC 60529 IP69 conforming to IEC 60529 IP69K conforming to ISO 20653
Ik degree of protection	IK05 conforming to IEC 50102
Standards	UL 508 IEC 60947-5-1 IEC 60947-5-4 IEC 60947-1 CSA C22.2 No 14 JIS C8201-5-1 JIS C8201-1
Product certifications	CSA UL listed
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2308027_V1-EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Important message	A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Package 1 bare product quantity	1
Legacy weee scope	In
Average percentage of recycled plastic content	21 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	XB5
Bezel material	dark grey plastic
Fixing collar material	plastic
Head type	standard
Mounting diameter	22.5 mm
Shape of signaling unit head	round
Cap/operator or lens colour	green
Operator additional information	with plain lens
Light source	universal LED
Bulb base	integral LED
Light source colour	green
[us] rated supply voltage	24 V AC/DC at 50/60 Hz
Terminals description iso n°1	(X1-X2)PL
Resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
[ui] rated insulation voltage	250 V (pollution degree 3) conforming to IEC 60947-1
[uimp] rated impulse withstand voltage	4 kV conforming to IEC 60947-1
Signalling type	steady
Gcr bridge	XB5AVCUST03
Customizable	no
Customizable	1
Compatibility code	XB5
Supply voltage limits	19.2...30 V DC 21.6...26.4 V AC
Current consumption	18 mA
Service life	100000 h at rated voltage and 25 °C
Surge withstand	1 kV conforming to IEC 61000-4-5
[us] rated supply voltage	24 V
Protective treatment	TH
Overvoltage category	class II conforming to IEC 60536
Nema degree of protection	NEMA 13 NEMA 4X
Nema degree of protection	UL type 4X/13
Vibration resistance	5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
Shock resistance	50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Resistance to fast transients	2 kV conforming to IEC 61000-4-4
Resistance to electromagnetic fields	10 V/m conforming to IEC 61000-4-3
Electromagnetic compatibility	electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 electromagnetic emission class B conforming to IEC 55011
Resistance to electrostatic discharge	6 kV on contact (on metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
Electromagnetic emission	class B conforming to IEC 55011
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.500 cm
Package 1 width	5.500 cm
Package 1 length	8.500 cm
Package 1 weight	35.300 g
Unit type of package 2	S03
Number of units in package 2	150
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	5.680 kg
Unit type of package 3	P06
Number of units in package 3	1200
Package 3 height	75.000 cm
Package 3 width	80.000 cm
Package 3 length	60.000 cm
Package 3 weight	53.440 kg
Green premium status for reporting	Green Premium product
Product repair index - dam document id	XB4BS8442-ENVREPAIR-A-EN
Total lifecycle carbon footprint	14 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.27468
Carbon footprint of the manufacturing phase [a1 to a3]	0.3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0047076
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.013989
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	13.666
Carbon footprint of the use phase [b2, b3, b4, b6]	14 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.062453
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Product repair index	A
Removable battery	N/A
Total lifecycle carbon footprint	14.0218296
Average percentage of recycled plastic content	21 %
Average percentage of recycled metal content	7 %
Average percentage of recycled metal content	7 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	3d14fd98-3859-4733-a5ee-a3016769973c
China rohs label	5
Product repair index	A
End of life manual availability	ENVEOLI2308027EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
