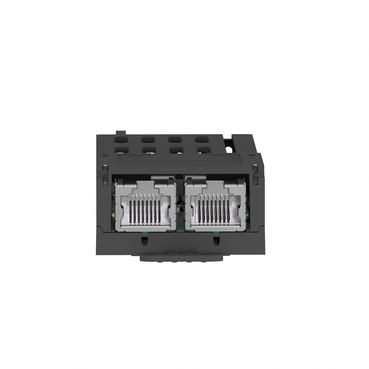

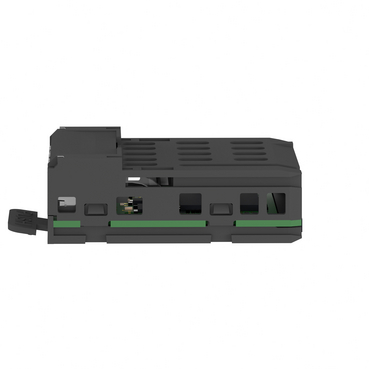

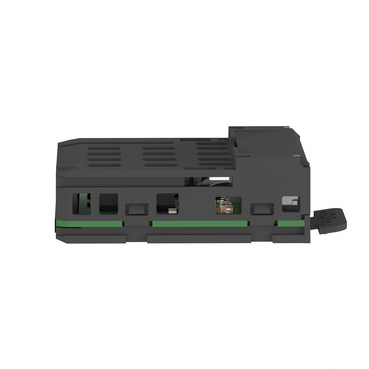

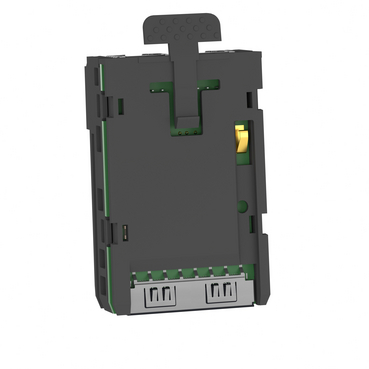

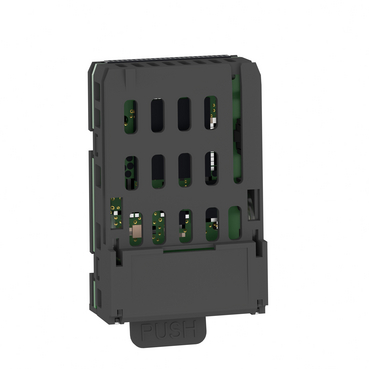

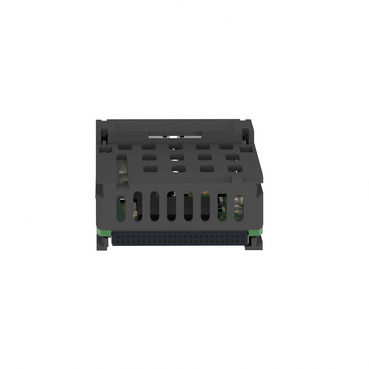

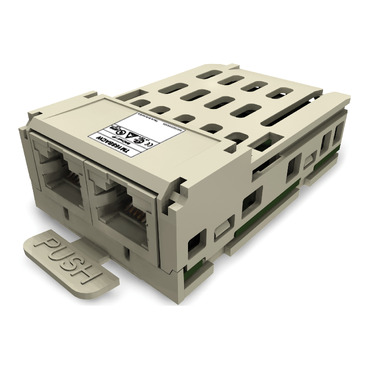

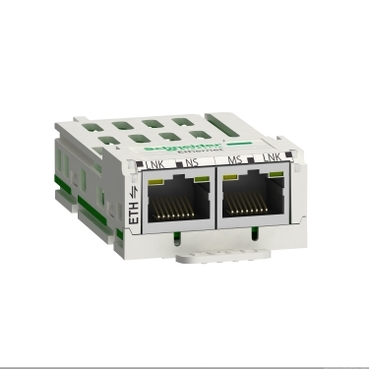

Harmony XB5R Modbus TCP communication module for ZBRN1 2 Ethernet RJ45 connectors

Home ProductsIndustrialHarmonyModbus TCP communication module for ZBRN1

Harmony XB5R Modbus TCP communication module for ZBRN1 2 Ethernet RJ45 connectors

Item Number: ZBRCETH

This communication module enables visual distinction of signaling units via illumination by BA9s base Integral LED It protects operators from unexpected contact with live circuits thanks to its IP20 protection index

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Hub

Product or component type

communication module

Product destination

ZBRN1 wireless Harmony Hub

Physical

Communication port protocol

Modbus TCP

Integrated connection type

Ethernet RJ45 - 2 twisted pairs - class D

Marking

CE

Local signalling

  • 1 LED for transmission activity
  • 1 LED for reception activity (RX)
  • 1 LED for module status
  • 1 LED for network status

Net weight

0.044 kg

Product certifications

  • CSA
  • UL 508
  • BTL
  • UL 873
  • UL 60730-1

Ip degree of protection

IP20

Ambient air temperature for operation

-20...65 °C

Ambient air temperature for storage

-25...70 °C

Relative humidity

5...95 % without condensation

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP101106EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Legacy weee scope

In

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

ZBRCETH

Transmission rate

10/100 Mbit/s

Communication service

  • static IP
  • DHCP, Modbus TCP/IP
  • BOOTP

Physical interface

  • RJ45 - 10BASE-T
  • RJ45 - 100BASE-TX

Electromagnetic compatibility

  • EMC immunity conforming to IEC 61000-6-1
  • EMC immunity level 2 conforming to IEC 60730-1
  • electrostatic discharge level 3B conforming to IEC 61000-4-2
  • radiated RF fields level 3A conforming to IEC 61000-4-3
  • electrical fast transient/burst immunity test level 4B conforming to IEC 61000-4-4
  • surge immunity test level 3 conforming to IEC 61000-4-5
  • conducted RF disturbances level 3A conforming to IEC 61000-4-6
  • conducted EMC level 2 conforming to IEC 60730-1
  • conducted EMC conforming to IEC 61000-6-3
  • EMC immunity conforming to IEC 61800-3
  • conducted EMC conforming to IEC 61800-3 category C1

Pollution degree

2

Operating altitude

0...2000 m

Storage altitude

0...3048 m

Vibration resistance

  • 1.5 mm (f = 3-13 Hz)
  • 1 mm (f = 13-23 Hz)
  • 2 gn (f = 23-150 Hz)

Shock resistance

15 gn for 11 ms

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.6 cm

Package 1 width

12.1 cm

Package 1 length

14.2 cm

Package 1 weight

30.0 g

Unit type of package 2

S03

Number of units in package 2

96

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

6.79 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.3 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.274112

Carbon footprint of the manufacturing phase [a1 to a3]

0.3 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.00473328

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.000800448

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.01498256

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.294628288

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

25b7f895-3732-43c8-9910-ef6005058640

End of life manual availability

ENVEOLI110301EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Environmental Disclosure

  • End of Life Manual

  • Installation Instruction

  • Operating Manuals

  • Application Notes

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

  • Software - Data Library

Important: Some software files may need a mySchneider or Club login to download.
Copla module - 3D CAD
ZIP

Copla module - 3D CAD

VERSION

1.0

DATE

11 Feb 2022

REVISION

1.0

DOWNLOAD (ZIP) 589.2 KB
Harmony Hub A masterpiece for a plug and play digital ecosystem
PDF

Harmony Hub A masterpiece for a plug and play digital ecosystem

VERSION

1.0

DATE

14 May 2019

REVISION

1.0

DOWNLOAD (PDF) 3.7 MB
Wireless and batteryless limit switches. XCMW range
ZIP

Wireless and batteryless limit switches. XCMW range

VERSION

1.1

DATE

26 Apr 2024

REVISION

1.1

DOWNLOAD (ZIP) 4.4 MB
Wireless Push Button and Configurable Receiver
ZIP

Wireless Push Button and Configurable Receiver

VERSION

1.0

DATE

30 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB
Wireless Push Button and Configurable Receiver
ZIP

Wireless Push Button and Configurable Receiver

VERSION

1.0

DATE

18 Sep 2025

REVISION

1.0

DOWNLOAD (ZIP) 351.1 KB

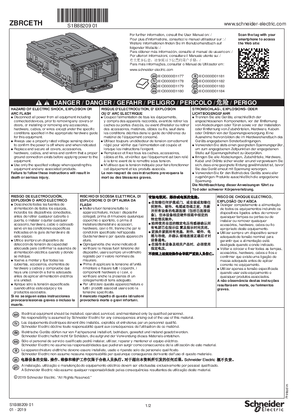

ZBRCETH Modbus TCP Communication module, Instruction Sheet
ZIP

ZBRCETH Modbus TCP Communication module, Instruction Sheet

VERSION

1.0

DATE

20 May 2024

REVISION

1.0

DOWNLOAD (ZIP) 934.1 KB
Harmony Wireless and Batteryless Push Button Quick Start Guide
ZIP

Harmony Wireless and Batteryless Push Button Quick Start Guide

VERSION

1.0

DATE

21 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 2.1 MB
Harmony XB5R - ZBRN1/ZBRN2, User Manual
ZIP

Harmony XB5R - ZBRN1/ZBRN2, User Manual

VERSION

5.0

DATE

29 Sep 2023

REVISION

5.0

DOWNLOAD (ZIP) 8 MB
Harmony® XB5R, Application Manual
ZIP

Harmony® XB5R, Application Manual

VERSION

2.0

DATE

29 Sep 2023

REVISION

2.0

DOWNLOAD (ZIP) 2.7 MB
XB4R, XB5R, ZBRN1, ZBRN2, ZBRCETH, ZBRA2 Wireless & Batteryless pushbuttons and XALD
ZIP

XB4R, XB5R, ZBRN1, ZBRN2, ZBRCETH, ZBRA2 Wireless & Batteryless pushbuttons and XALD

VERSION

1.0

DATE

22 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 252.6 KB
XB4R, XB5R, ZBRN1, ZBRN2, ZBRCETH, ZBRA2 Wireless & Batteryless pushbuttons and XALD
ZIP

XB4R, XB5R, ZBRN1, ZBRN2, ZBRCETH, ZBRA2 Wireless & Batteryless pushbuttons and XALD

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 515 KB
XB4R XB5R Wireless & Batteryless pushbuttons equipments
ZIP

XB4R XB5R Wireless & Batteryless pushbuttons equipments

VERSION

1.0

DATE

28 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 434 KB
RCM-Declaration of Conformity-ZBRN Wireless & Batteryless pushbuttons equipment
ZIP

RCM-Declaration of Conformity-ZBRN Wireless & Batteryless pushbuttons equipment

VERSION

1.0

DATE

09 May 2023

REVISION

1.0

DOWNLOAD (ZIP) 414.9 KB

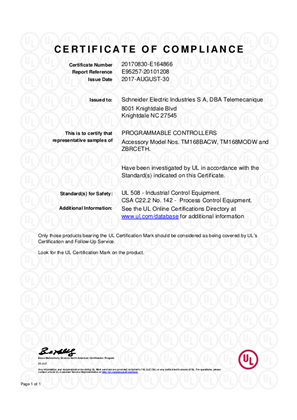

UL Certificate ZBRCETH
