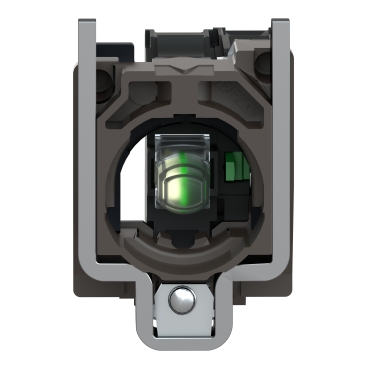

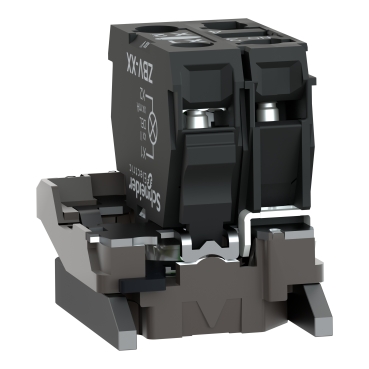

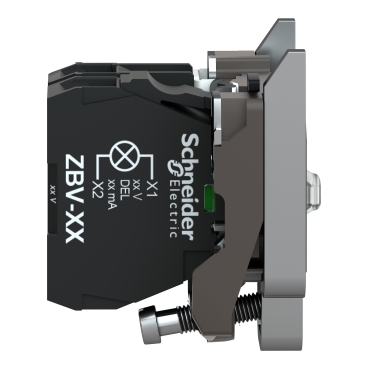

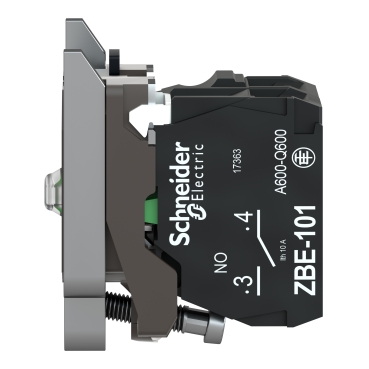

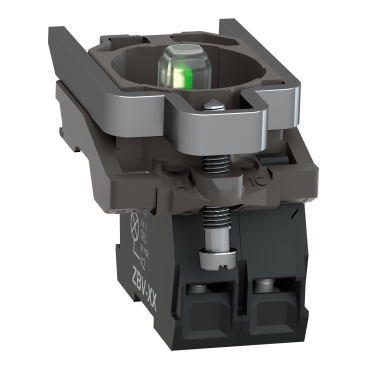

Harmony XB4 Light block with body fixing collar metal, green, integral LED, 230…240V AC, 1NO

Item Number: ZB4BW0M31

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110893540	-
5	PAC	53389110893545	-

Specifications

Design

Range of product	Harmony XB4
Product or component type	complete body/contact assembly and light block
Warranty	18 months

Physical

Sale per indivisible quantity	1
Connections - terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Net weight	0.064 kg
Mechanical durability	5000000 cycles
[ie] rated operational current	3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability	1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation	basic sub-assemblies
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Standards	IEC 60947-5-1 CSA C22.2 No 14 IEC 60947-5-5 UL 508 JIS C8201-5-1 IEC 60947-5-4 IEC 60947-1 JIS C8201-1
Product certifications	LROS (Lloyds register of shipping) GL UL listed BV CSA DNV
Mercury free	Yes
Rohs exemption information	Yes
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Contacts material	silver alloy (Ag/Ni)

Others

Important message	All colored LED are replaced with a single Universal LED block for use with new illuminated heads (more information at se.com/harmonyxb4 or se.com/harmonyxb5)
Legacy weee scope	In
Average percentage of recycled plastic content	37 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Package 1 bare product quantity	1
Device short name	ZB4
Fixing collar material	zamak
Head type	standard
Contacts type and composition	1 NO
Contact operation	slow-break
Light source	protected LED
Bulb base	integral LED
Light block supply	direct
Light source colour	green
[us] rated supply voltage	230...240 V AC at 50/60 Hz
[us] rated supply voltage	230...240 V

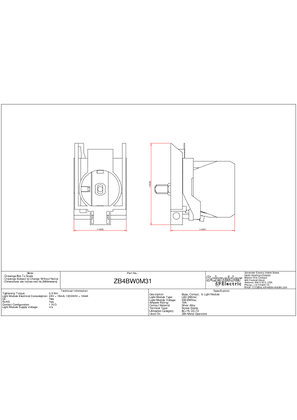

Cad overall width	30 mm
Cad overall height	47 mm

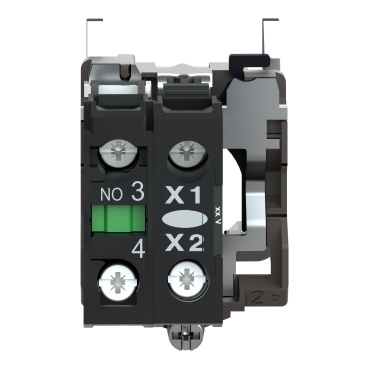

Terminals description iso n°1	(13-14)NO
Contacts usage	standard
Positive opening	without
Operating travel	2.6 mm (NO changing electrical state) 4.3 mm (total travel)
Operating force	2.3 N NO changing electrical state
Operating torque	0.05 N.m NO changing electrical state
Tightening torque	0.8...1.2 N.m conforming to IEC 60947...1
Shape of screw head	cross compatible with Philips no 1 screwdriver cross compatible with pozidriv No 1 screwdriver slotted compatible with flat Ø 4 mm screwdriver slotted compatible with flat Ø 5.5 mm screwdriver
Short-circuit protection	10 A cartridge fuse type gG conforming to IEC 60947-5-1
[ith] conventional free air thermal current	10 A conforming to IEC 60947-5-1
[ui] rated insulation voltage	600 V (pollution degree 3) conforming to IEC 60947-1
[uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-1
Electrical reliability	λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4
Signalling type	steady
Supply voltage limits	195...264 V AC
Current consumption	14 mA
Service life	100000 h at rated voltage and 25 °C
Surge withstand	1 kV conforming to IEC 61000-4-5
Customizable	no
Customizable	0
Compatibility code	ZB4
Protective treatment	TH
Electrical shock protection class	class I conforming to IEC 60536
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Resistance to fast transients	2 kV conforming to IEC 61000-4-4
Resistance to electromagnetic fields	10 V/m conforming to IEC 61000-4-3
Resistance to electrostatic discharge	6 kV on contact (on metal parts) conforming to IEC 61000-2-6 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6
Electromagnetic emission	class B conforming to IEC 55011
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.600 cm
Package 1 width	3.400 cm
Package 1 length	5.400 cm
Package 1 weight	61.000 g
Unit type of package 2	S03
Number of units in package 2	200
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	12.727 kg
Unit type of package 3	P06
Number of units in package 3	1600
Package 3 height	77.000 cm
Package 3 width	80.000 cm
Package 3 length	60.000 cm
Package 3 weight	114.900 kg
Sustainable packaging	Yes
Average percentage of recycled plastic content	37 %
Average percentage of recycled metal content	21 %
Average percentage of recycled metal content	21 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	5
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
