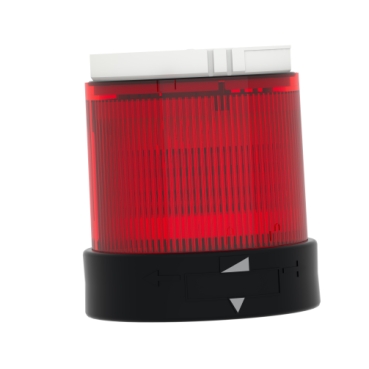

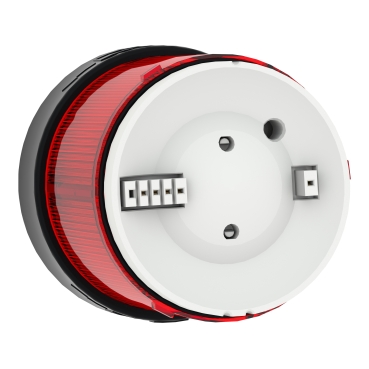

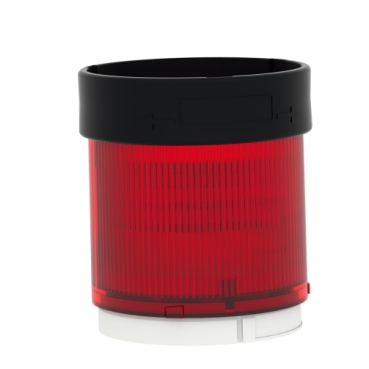

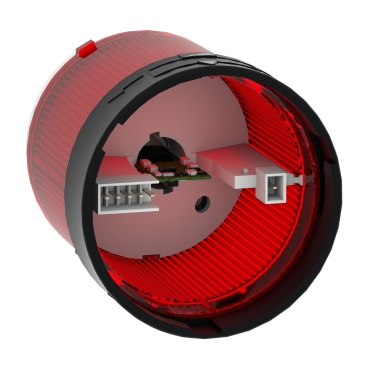

Harmony XVB, Indicator bank, illuminated unit, plastic, red, 70mm, steady, integral LED, 24V AC/DC

Harmony XVB, Indicator bank, illuminated unit, plastic, red, 70mm, steady, integral LED, 24V AC/DC

Item Number: XVBC2B4

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XVB Universal

Product or component type

indicator bank

Warranty

18 months

Physical

Connections - terminals

screw clamp terminals, <= 1 x 1.5 mm² with cable end

Net weight

0.15 kg

Product certifications

<ul><li>CCC</li><li>EAC</li><li>CSA C22-2 No 14</li><li>UL 508</li></ul>

Standards

IEC 60947-5-1

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-25...50 °C

Ip degree of protection

<ul><li>IP65 on fixing base XVBZ0. conforming to IEC 60529</li><li>IP66 on base unit conforming to IEC 60529</li></ul>

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP070907EN

Circularity profile

N/A

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

polycarbonate

Others

Commercial status history

<ul><li>SESA65410</li><li>Mon Dec 16 21:30:00 EST 2024</li><li>From Import Local</li><li>From 14 to 14</li></ul>

Package 1 bare product quantity

1

Beacon or indicator bank unit type

illuminated unit

Signalling type

steady

Mounting diameter

70 mm

Component name

XVBC

Light source

integral LED, red

Bulb type

protected LED

[us] rated supply voltage

24 V AC/DC

Assembly style

customer assembly, up to 5 units

[ui] rated insulation voltage

250 V conforming to IEC 60947-1

Nominal voltage limit

0.85...1.1 Un conforming to IEC 60947-5-1

Current consumption

< 47 mA AC/DC

[uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Cad overall width

70 mm

Cad overall height

63 mm

Cad overall depth

70 mm

Pollution degree

2

Protective treatment

TC

Electrical shock protection class

<ul><li>class I on support tube conforming to IEC 61140</li><li>class II on base unit conforming to IEC 61140</li></ul>

Nema degree of protection

Type 4X conforming to UL (indoor)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.3 cm

Package 1 width

10 cm

Package 1 length

10 cm

Package 1 weight

135 g

Unit type of package 2

S03

Number of units in package 2

36

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

5.419 kg

Unit type of package 3

P06

Number of units in package 3

288

Package 3 height

80 cm

Package 3 width

80 cm

Package 3 length

60 cm

Package 3 weight

53.084 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Green premium status for reporting

Green Premium product

Scip number

397b2f60-b78e-4d4e-9cd8-02b80aa83587

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

35.4515893775
