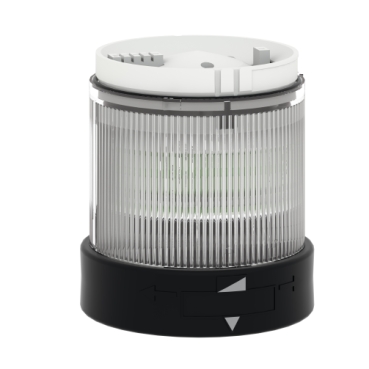

Harmony XVB Indicator bank illuminated unit, plastic, clear, 70mm, steady, integral LED, 230V AC

Item Number: XVBC2M7

1 PCE 0

This clear illuminated unit is designed to be connected with base to create complete tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110147841	-

Specifications

Design

Range of product	Harmony XVB Universal
Product or component type	indicator bank
Warranty	18 months

Physical

Connections - terminals	screw clamp terminals, <= 1 x 1.5 mm² with cable end
Net weight	0.15 kg
Product certifications	CCC EAC CSA C22-2 No 14 UL 508
Standards	IEC 60947-5-1
Ambient air temperature for storage	-40...70 °C
Ip degree of protection	IP65 on fixing base XVBZ0. conforming to IEC 60529 IP66 on base unit conforming to IEC 60529
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP0709007EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material	polycarbonate

Others

Important message	XVB is being substituted by XVB7 as complete range; XVB and XVB7 modules are not interoperable with one another.
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	36
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	No
Warranty duration(in months) bmecat	18
Beacon or indicator bank unit type	illuminated unit
Signalling type	steady
Mounting diameter	70 mm
Component name	XVBC
Light source	integral LED, clear
Bulb type	protected LED
[us] rated supply voltage	230 V AC
Assembly style	customer assembly, up to 5 units
[ui] rated insulation voltage	250 V conforming to IEC 60947-1
Nominal voltage limit	0.85...1.1 Un conforming to IEC 60947-5-1
Current consumption	< 17 mA AC
[uimp] rated impulse withstand voltage	4 kV conforming to IEC 60947-1
Cad overall width	70 mm
Cad overall height	63 mm
Cad overall depth	70 mm
Pollution degree	2
Protective treatment	TC
Electrical shock protection class	class I on support tube conforming to IEC 61140 class II on base unit conforming to IEC 61140
Nema degree of protection	Type 4X conforming to UL (indoor)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.000 cm
Package 1 width	9.300 cm
Package 1 length	8.000 cm
Package 1 weight	138.000 g
Unit type of package 2	S03
Number of units in package 2	36
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	5.789 kg
Total lifecycle carbon footprint	35 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.473530916197013
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.34078216462784433
Carbon footprint of the distribution phase [a4]	0.3 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0008744364522103027
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	32.628931925772356
Carbon footprint of the use phase [b2, b3, b4, b6]	33 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.30023400218703117
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	34.744353445236456
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	397b2f60-b78e-4d4e-9cd8-02b80aa83587
China rohs label	5
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
