Harmony XVU Illuminated LED unit for modular tower lights white, Ø60, blinking, IP65, 24V AC/DC

Home ProductsIndustrialHarmonyIlluminated LED unit for modular tower lights

Harmony XVU Illuminated LED unit for modular tower lights white, Ø60, blinking, IP65, 24V AC/DC

Item Number: XVUC47

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XVU

Product or component type

modular tower light

Device application

  • machine tools
  • automotive
  • packaging machine

Physical

Length

50 mm

Net weight

0.064 kg

Product certifications

  • CSA
  • CE
  • UL

Ambient air temperature for storage

-40...70 °C

Ip degree of protection

IP65

Ambient air temperature for operation

-25...50 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2308032EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

  • PC (polycarbonate) V-2 conforming to UL 94
  • PC (polycarbonate) V-0 conforming to UL 94

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

End of commercialization (planned, announced or effective)

Substance regulation data deliverable

Yes

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

24

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Beacon or indicator bank unit type

LED unit

Mounting diameter

60 mm

Component name

XVU

Light source

LED, white

Signalling type

blinking

Assembly style

  • up to 4 units with buzzer
  • customer assembly, up to 5 units

[us] rated supply voltage

24 V AC/DC

Maximum power dissipation in w

1.2 W

Signalling type

blinking

Vibration resistance

2 gn

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.000 cm

Package 1 width

9.100 cm

Package 1 length

13.300 cm

Package 1 weight

137.000 g

Unit type of package 2

S03

Number of units in package 2

24

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.940 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

c06fce4f-aea2-46a5-aadb-0b38d1efbe3f

End of life manual availability

ENVEOLI2308032EN

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Technical illustration

  • Technical Drawing

  • eTechPub

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
XVUC47_CAD
ZIP

XVUC47_CAD

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 140.2 KB
Catalog of Harmony XVU modular tower light, dia. 60
ZIP

Catalog of Harmony XVU modular tower light, dia. 60

VERSION

8.0

DATE

06 Aug 2024

REVISION

8.0

DOWNLOAD (ZIP) 5.5 MB
XVU Tower Light
ZIP

XVU Tower Light

VERSION

1.0

DATE

06 May 2025

REVISION

1.0

DOWNLOAD (ZIP) 300 KB
XVU Tower Light
ZIP

XVU Tower Light

VERSION

1.0

DATE

06 May 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB
XVUC9S. Buzzer, adjustable unit, Instruction Sheet
ZIP

XVUC9S. Buzzer, adjustable unit, Instruction Sheet

VERSION

3.0

DATE

21 Aug 2024

REVISION

3.0

DOWNLOAD (ZIP) 2.2 MB
Technical Illustration - Dimensions
ZIP

Technical Illustration - Dimensions

VERSION

1.0

DATE

11 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 175.1 KB
Technical Illustration - Wiring
ZIP

Technical Illustration - Wiring

VERSION

1.0

DATE

11 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 238.2 KB

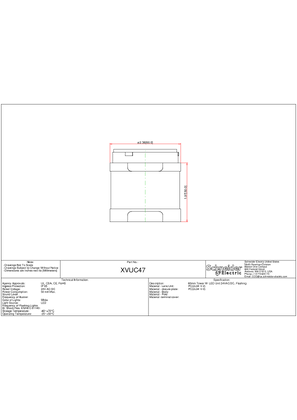

XVUC47_2D_Drwng_PDF
