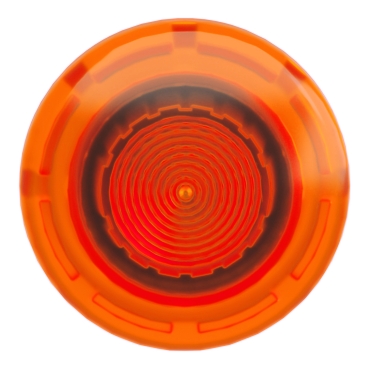

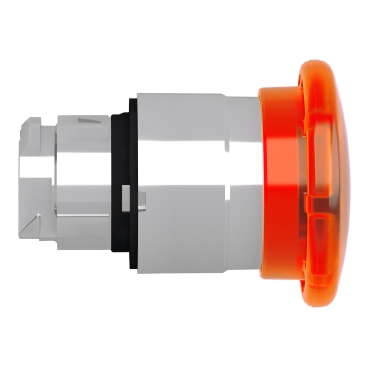

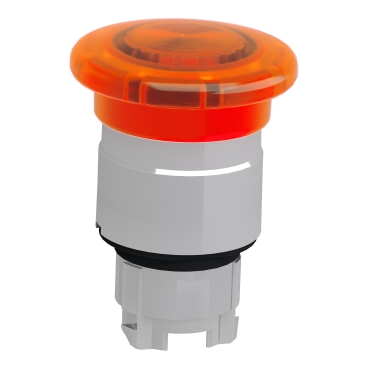

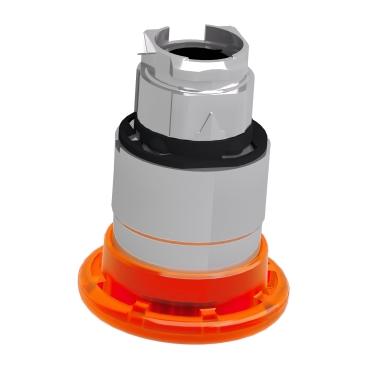

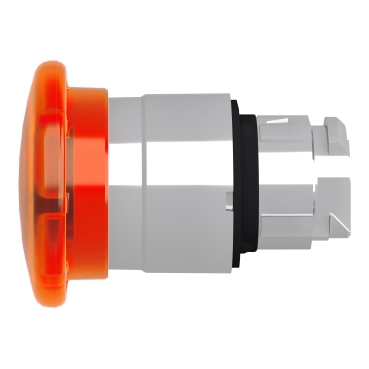

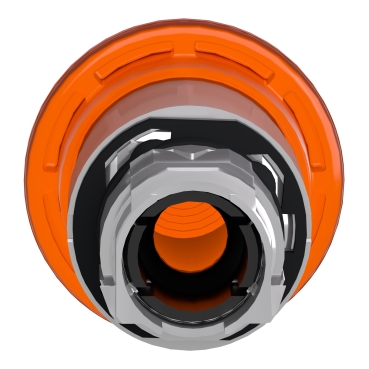

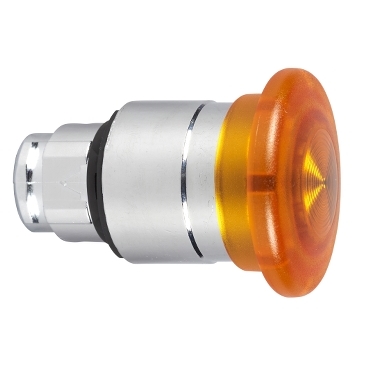

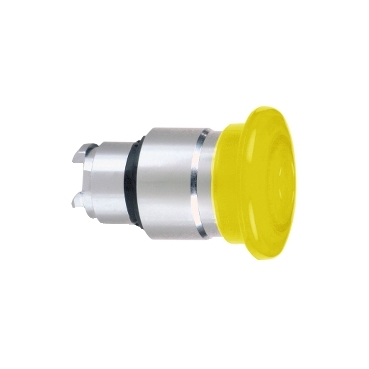

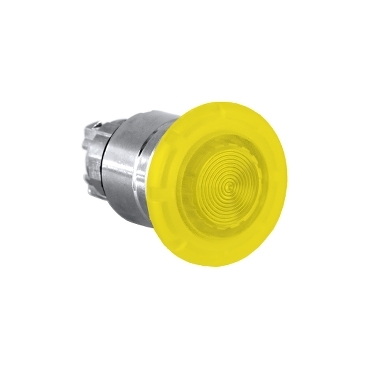

Harmony XB4 Head for illuminated push-button metal, orange mushroom 40mm, 22mm, universal LED, spring return, unmarked

Item Number: ZB4BW453

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110666502	-

Specifications

Design

Range of product	Harmony XB4
Product or component type	head for illuminated push-button
Product compatibility	universal LED
Warranty	18 months

Physical

Sale per indivisible quantity	1
Net weight	0.051 kg
Mechanical durability	10000000 cycles
Marking	unmarked
Device presentation	basic sub-assemblies
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Ip degree of protection	IP66 conforming to IEC 60529 IP67 IP69 IP69K
Ik degree of protection	IK05 conforming to IEC 62262
Standards	UL 508 IEC 60947-5-1 IEC 60947-1 IEC 60947-5-4 IEC 60947-5-5 JIS C8201-5-1 CSA C22.2 No 14 JIS C8201-1
Product certifications	BV CSA DNV LROS (Lloyds register of shipping) UL listed
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1808008_V2-EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant

Others

Important message	A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	40
Average percentage of recycled plastic content	37 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Device short name	ZB4
Bezel material	chromium plated metal
Head type	standard
Mounting diameter	22.5 mm
Shape of signaling unit head	round
Type of operator	spring return
Operator profile	orange mushroom Ø 40 mm, unmarked
Cap/operator or lens colour	orange

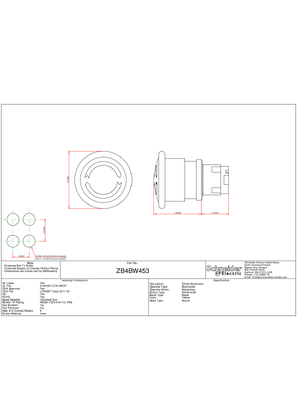

Cad overall width	40 mm
Cad overall height	40 mm
Cad overall depth	53 mm
Resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
Electrical composition code	M1 for <6 contacts using single blocks in front mounting with integral LED M2 for <6 contacts using single and double blocks in front mounting with integral LED M6 for <2 contacts using single blocks in front mounting with integral LED and transformer M10 for <2 contacts using single blocks in front mounting with integral LED
Main group	mushroom head
Group of product	mushroom spring return illuminated
Cap/operator or lens colour	orange
Customizable	no
Customizable	0
Compatibility code	ZB4
Protective treatment	TH
Overvoltage category	class I conforming to IEC 60536
Nema degree of protection	NEMA 13 NEMA 4X
Nema degree of protection	UL type 4X/13
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.400 cm
Package 1 width	5.300 cm
Package 1 length	8.800 cm
Package 1 weight	62.000 g
Unit type of package 2	S02
Number of units in package 2	40
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	2.580 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.6 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.4666134503
Carbon footprint of the manufacturing phase [a1 to a3]	0.5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0099175828
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0091150877
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.1032910331
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.588937154
Average percentage of recycled plastic content	37 %
Average percentage of recycled metal content	21 %
Average percentage of recycled metal content	21 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
End of life manual availability	ENVEOLI1808008EN
Take-back	No
Warranty (in months)	18
