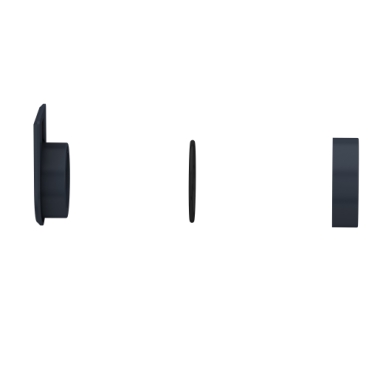

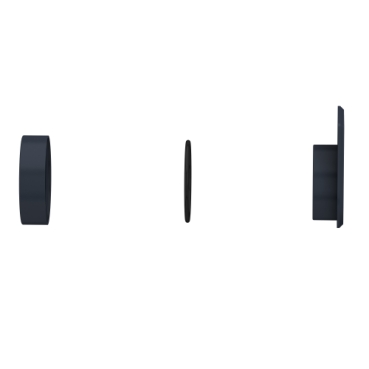

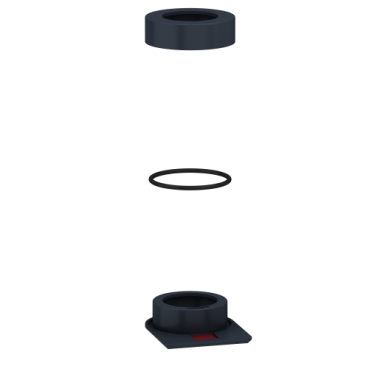

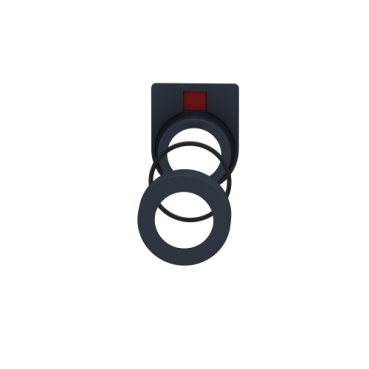

Harmony XB5 Flush mounting kit Ø30 for push-buttons and pilot lights Ø22, plastic, 1-line legend

Item Number: ZB5AZ023

1 PCE 0

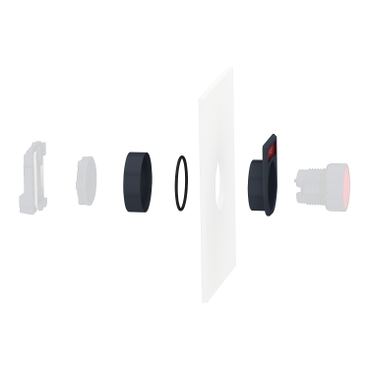

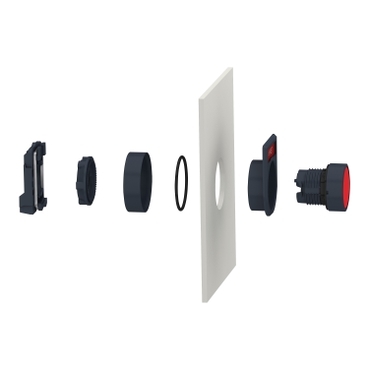

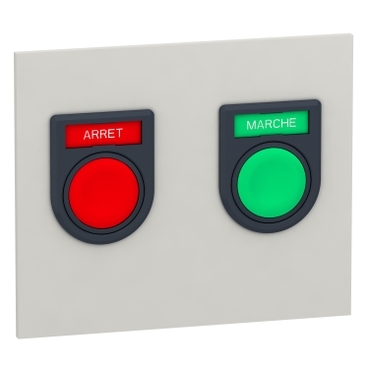

This Harmony XB5, flush mounting kit is compatible with Harmony XB5 flush push-buttons and pilot lights and has a 1-line legend. It allows the installation of devices on control panels to be more resilient to side impacts due to passing objects, tools, opening doors. It allows new aesthetic style for your machines thanks to the flush design. It provides clear labelling area for simple indication of the button function.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606485440248	-

Specifications

Design

Range of product	Harmony XB5
Product or component type	flush mounting kit
Product compatibility	XB7NJ ZB5AH XB7NW XB7EV ZB5AL ZB5AV XB7NG XB7NL ZB5AA XB7NA XB5EV XB7ND

Physical

Ip degree of protection	IP66 (front face) conforming to IEC 60529 IP69 (front face) conforming to IEC 60529 IP69K (front face) conforming to DIN 40050-9
Ik degree of protection	IK03 conforming to IEC 50102
Quantity per set	set of 1
Net weight	0.007 kg
Reach free of svhc	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2312034_V1
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant

Others

Legacy weee scope	Out
	At least in Europe
Average percentage of recycled plastic content	24 %
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	18
Weee label	No
Accessory / separate part category	mounting and fixing accessory
Accessory / separate part destination	pilot light push-button
Main colour tint	black
Mounting diameter	30.5 mm
Customizable	no
Customizable	0
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.5 cm
Package 1 width	4.3 cm
Package 1 length	5.2 cm
Package 1 weight	16.0 g
Unit type of package 2	S02
Number of units in package 2	80
Package 2 height	15.0 cm
Package 2 width	30.0 cm
Package 2 length	40.0 cm
Package 2 weight	1.586 kg
Total lifecycle carbon footprint	0.2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.1085667681
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.002092218
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0011315048
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.050420875
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.1622113659
Average percentage of recycled plastic content	24 %
Average percentage of recycled metal content	12 %
Average percentage of recycled metal content	12 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
China rohs label	1
End of life manual availability	ENVEOLI2312034EN
Take-back	No
Warranty (in months)	18
