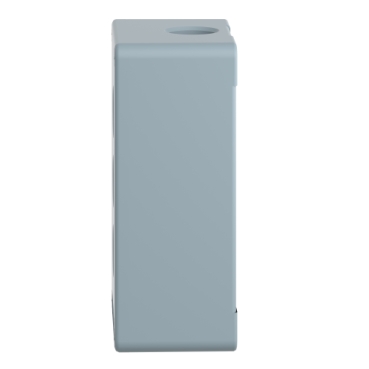

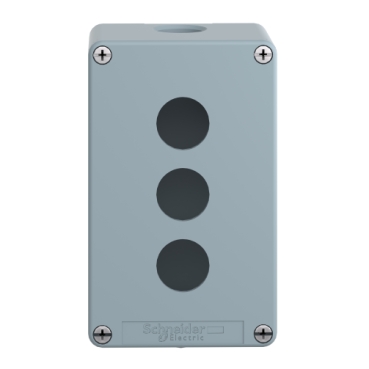

Harmony XAP XB2 SL Empty control station zinc alloy, blue, 3 cut-outs, Ø22, with ISO cable entries, 80 x 130 x 51.5mm

Home ProductsIndustrialHarmonyEmpty control station

Harmony XAP XB2 SL Empty control station zinc alloy, blue, 3 cut-outs, Ø22, with ISO cable entries, 80 x 130 x 51.5mm

Item Number: XAPM2203H29

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XAP

Product or component type

die-cast empty control station

Product destination

for Ø 22 mm control and signalling units

Warranty

18 months

Physical

Cable entry

  • 1 hole with blanking plug for ISO 429248 cable gland, clamping capacity: 20-20 mm
  • 1 hole without blanking plug for ISO 429248 cable gland, clamping capacity: 20-20 mm

Device mounting

flush

Ip degree of protection

  • IP65 conforming to IEC 60529
  • IP69 conforming to NF C 20-010
  • IP69K

Net weight

0.605 kg

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2111017EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

zinc alloy

Others

At least in Europe

Weee label

No

Package 1 bare product quantity

1

Legacy weee scope

Out

Device short name

XAPM

Product front plate size

80 x 130 mm

Usable depth

49 mm

Number of cut-out

3 cut-outs

Colour of base of enclosure

blue

Colour of cover

blue

Number of vertical rows

1

Compatibility code

XAPM

Protective treatment

TC

Overvoltage category

  • class I conforming to IEC 60536
  • class I conforming to NF C 20-030

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.2 cm

Package 1 width

11.4 cm

Package 1 length

18.2 cm

Package 1 weight

704 g

Sustainable packaging

Yes

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

End of life manual availability

N/A

Warranty (in months)

18
